H-2 - Electronic Shift Control (Manual Four-Wheel Drive)

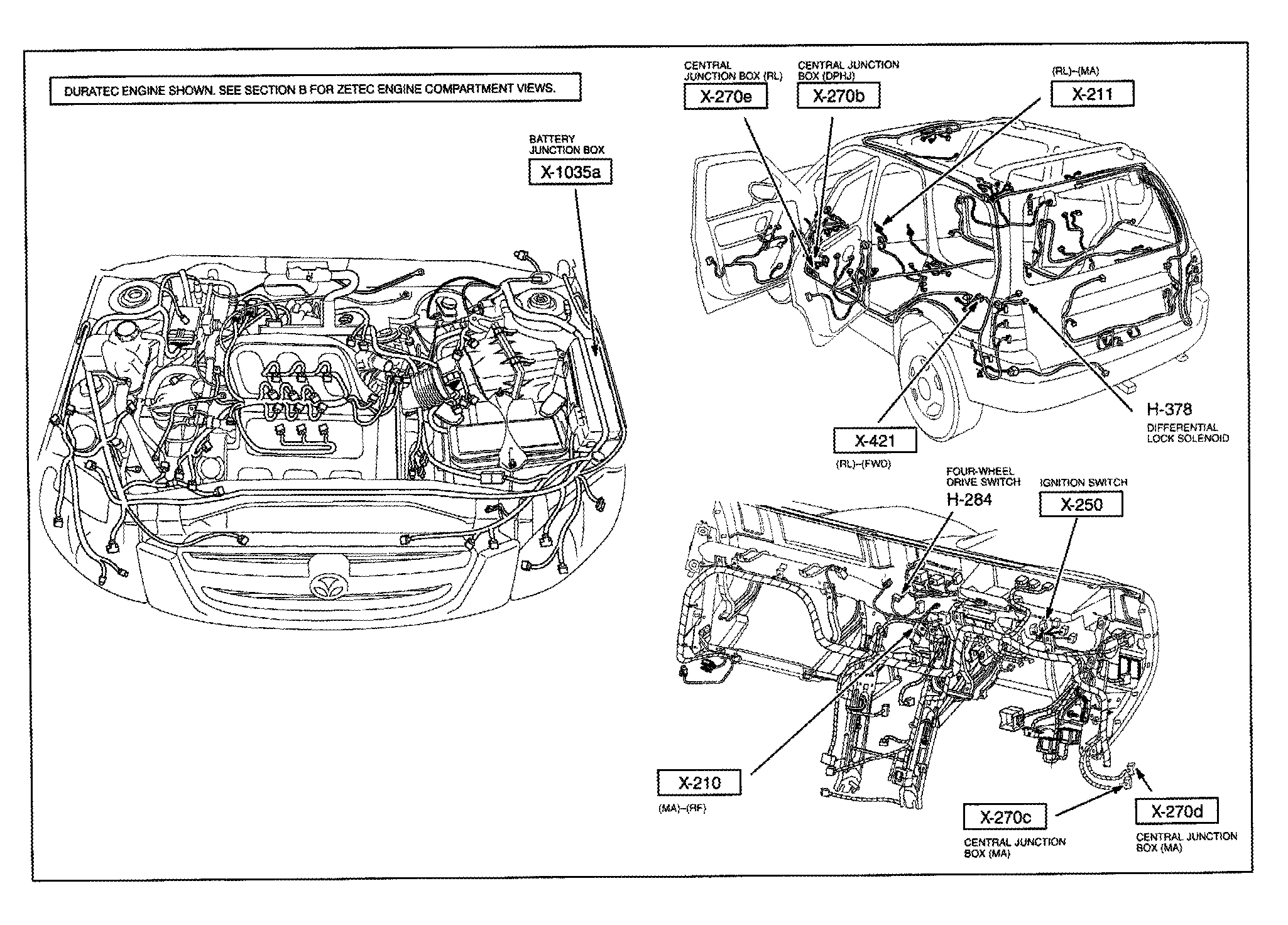

�&H-2 - Electronic Shift Control Harness/Connector Symbols (Manual Four-Wheel Drive):



H-3 - Electronic Shift Control Harness/Connector Symbols (Automatic Four-Wheel Drive):
