Timing Chain Assembly

TIMING CHAIN ASSEMBLY
1. Assemble in the order indicated in the table.

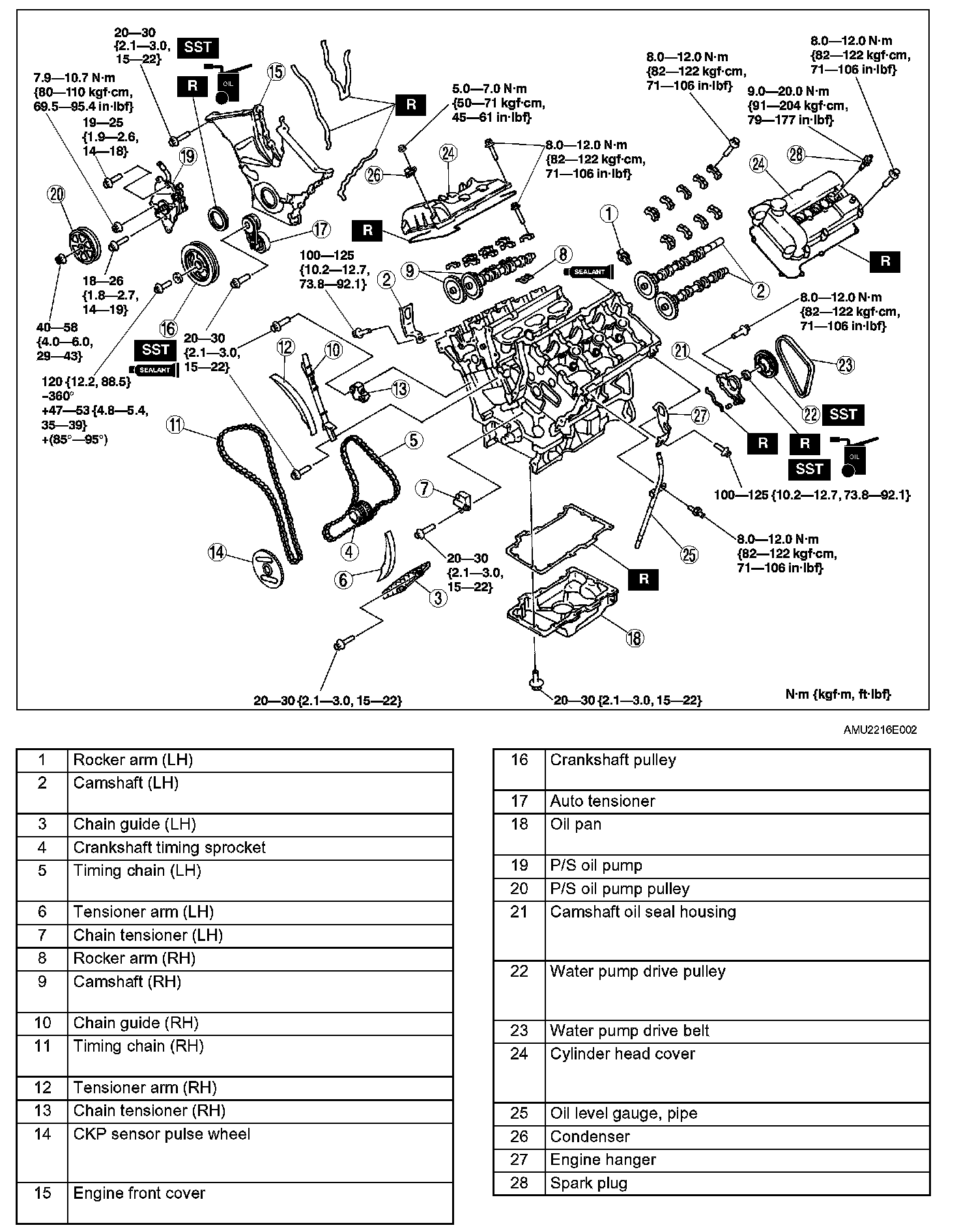

Timing Chain Assembly:
