LH Support Insulator

Removal and Installation

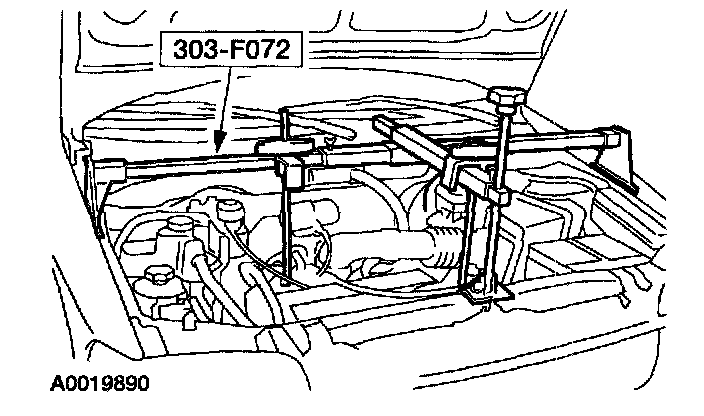

1. Using the special tool, support the engine.
2. Remove the air cleaner.

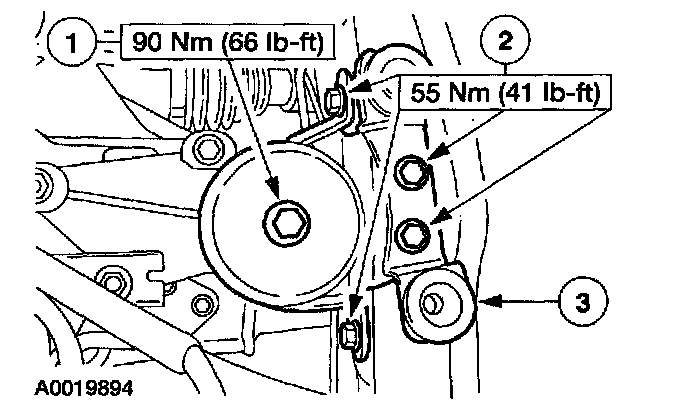

3. Remove the LH transaxle support insulator.
1 Remove the bolt.
2 Remove the four bolts.
3 Remove the LH transaxle support insulator.
4. To install, reverse the removal procedure.
