Transaxle Support Insulator - LH
Removal1. Disconnect the battery cables.
2. Remove the battery and tray.

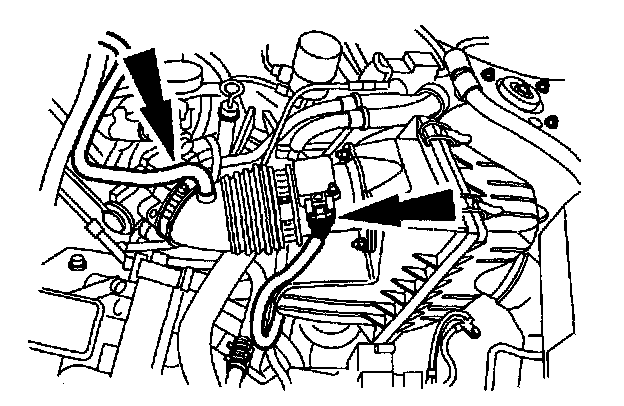

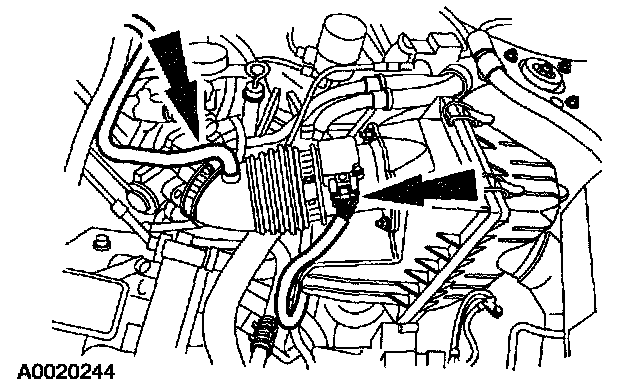

3. Disconnect the breather tube and mass air flow (MAF)/intake air temperature (IAT) sensor.

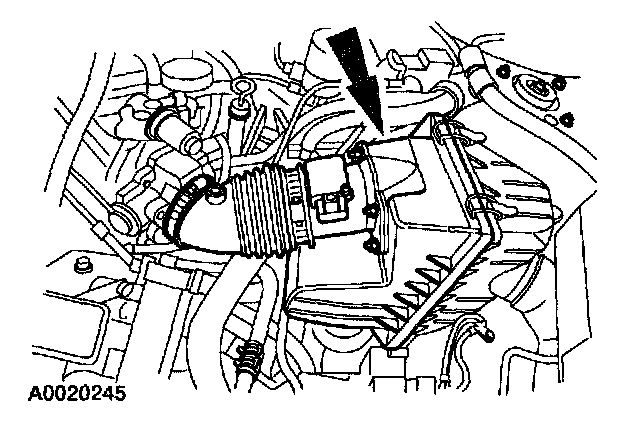

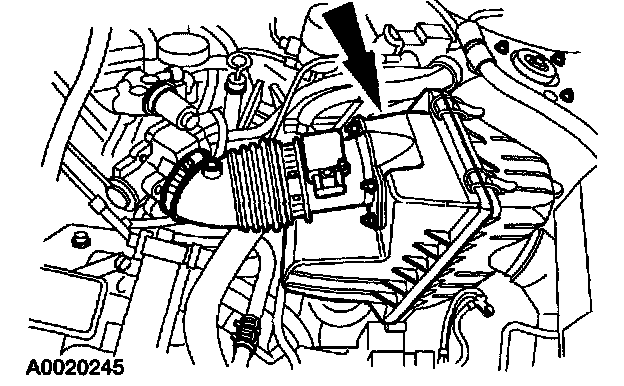

4. Remove the intake tube and air cleaner cover.

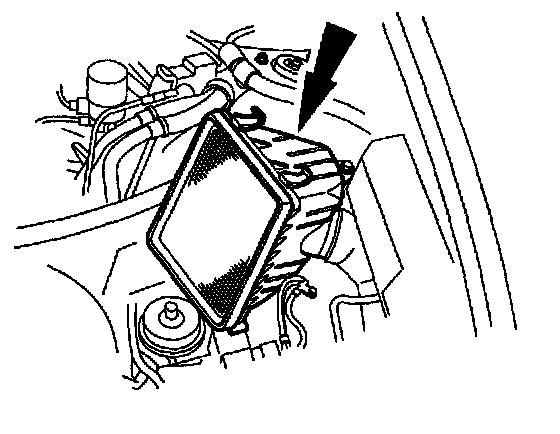

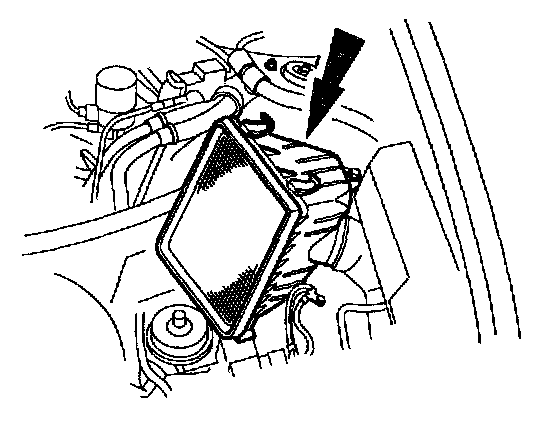

5. Remove the air cleaner assembly.

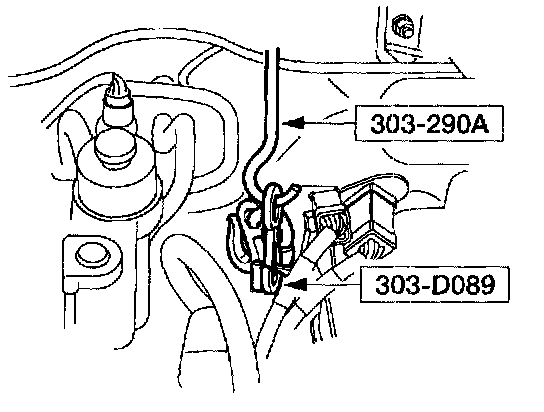

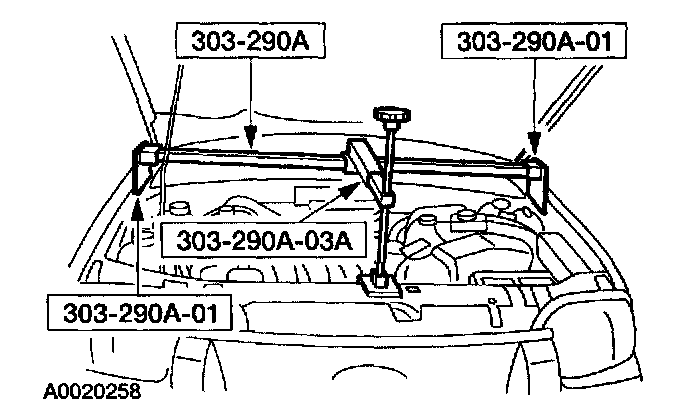

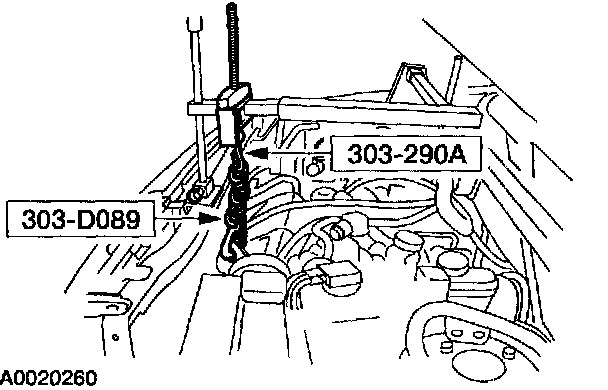

6. Install the special tools.

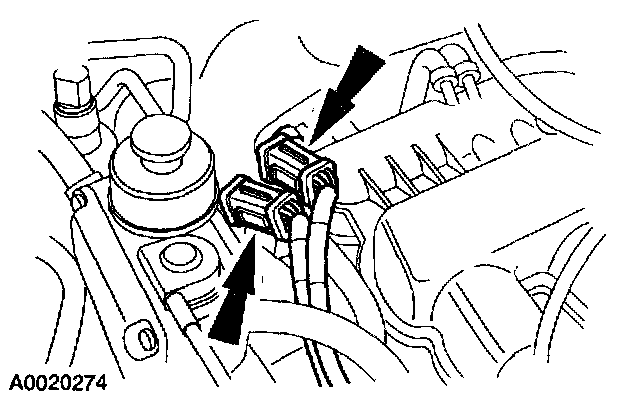

7. Remove both electrical connectors from the valve cover to gain access to the engine lifting bracket.

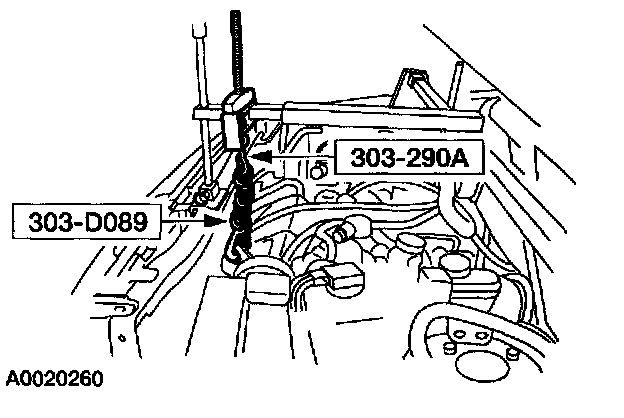

8. Install the special tools.
9. Install the special tools.

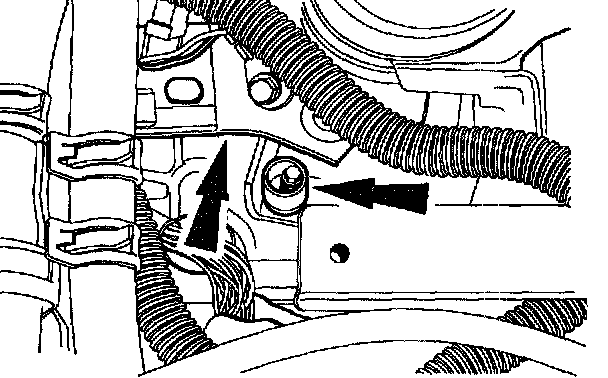

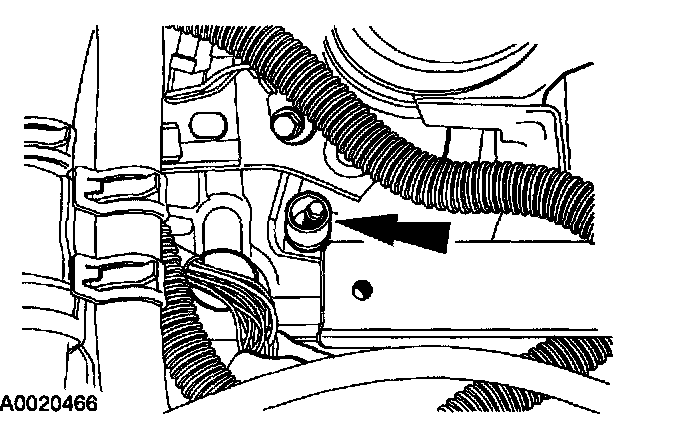

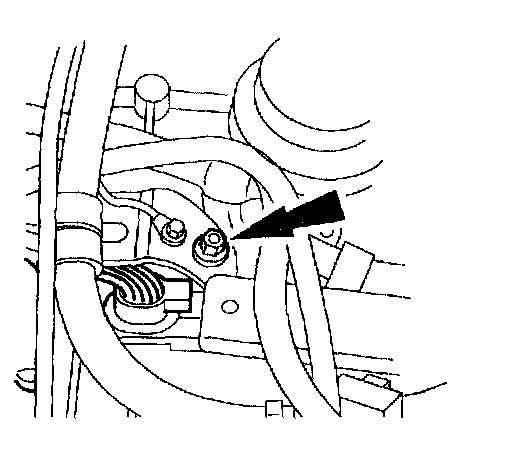

10. Remove the wire harness bracket nut and bracket.
11. Position the wire harness bracket out of the way and remove the spacer.

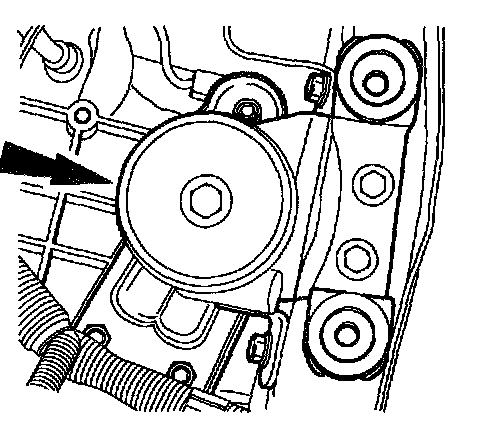

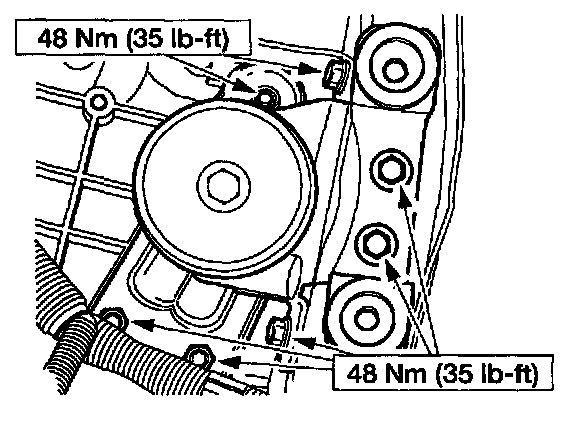

12. Remove the upper transaxle mount plate assembly.
13. Disassemble the upper transaxle mount plate assembly.

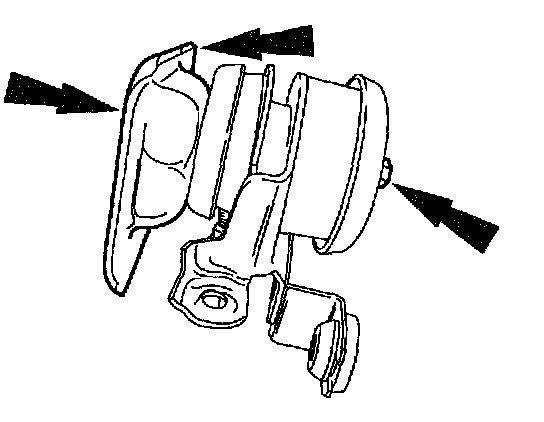

1 Remove the bolt, nut, and bottom mount plate.

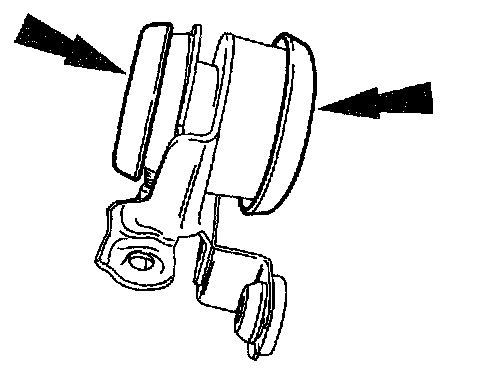

14. Remove the top and bottom mount cups.
Installation
1. Assemble the upper transaxle mount plate assembly using a new mount.

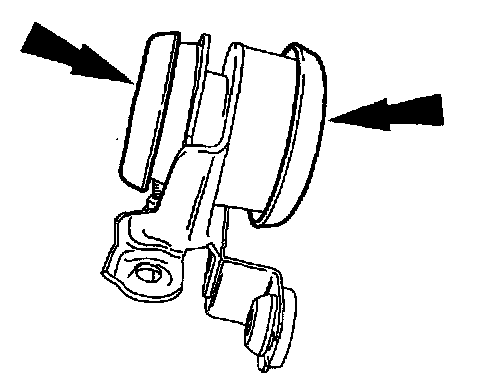

1 Install the top and bottom mount cups.

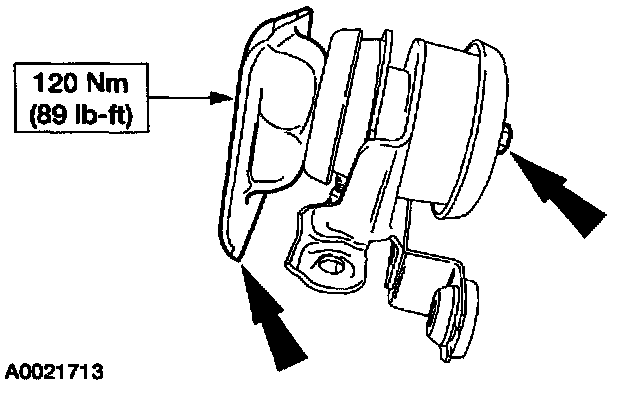

2. Install the bottom mount plate, bolt and nut.
3. Install the upper transaxle mount plate assembly.
4. Install the spacer.

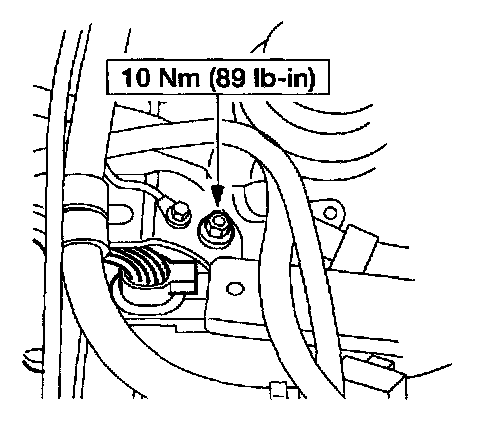

5. Install the wire harness bracket and nut.

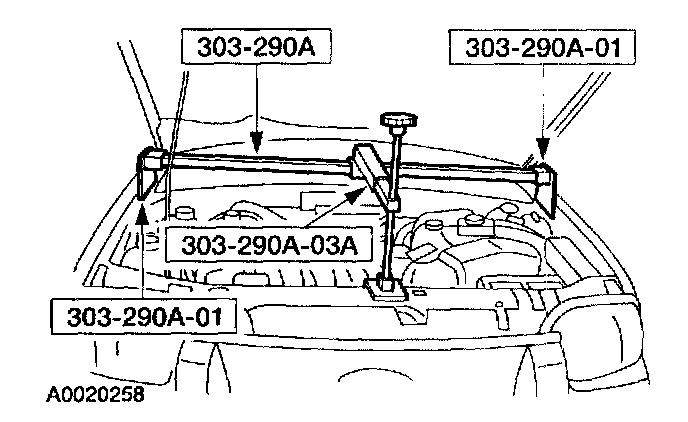

6. Remove the special tool.
7. Remove the special tool.
8. Remove the special tool.

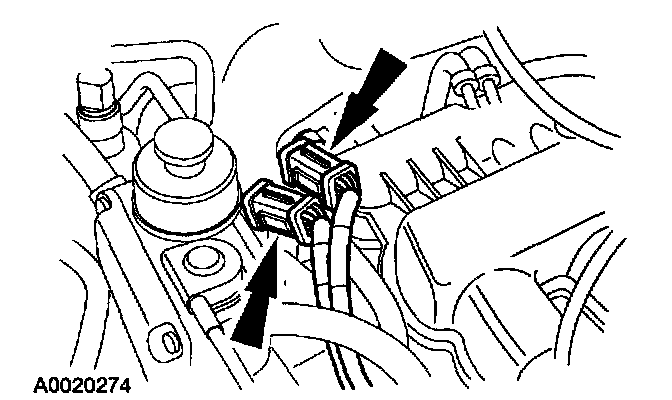

9. Connect the electrical connectors to the valve cover.
10. Install the air cleaner assembly.
11. Install the intake tube and air cleaner cover.
12. Connect the breather tube and mass air flow (MAF)/ intake air temperature (IAT) sensor.
Note: Before installing the battery tray check the vent tube hose for any obstructions, kinks, or incorrect routing position.
13. Install the battery tray.
14. Connect the battery cables.
