Air Cleaner Housing: Service and Repair

AIR CLEANER

Removal and Installation




1. Disconnect the air cleaner.

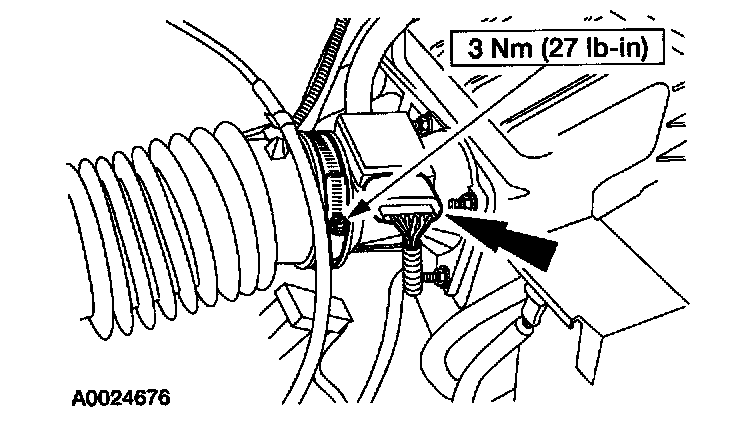

1. Disconnect the outlet pipe.
2. Disconnect the mass air flow / intake air temperature sensor electrical connector.

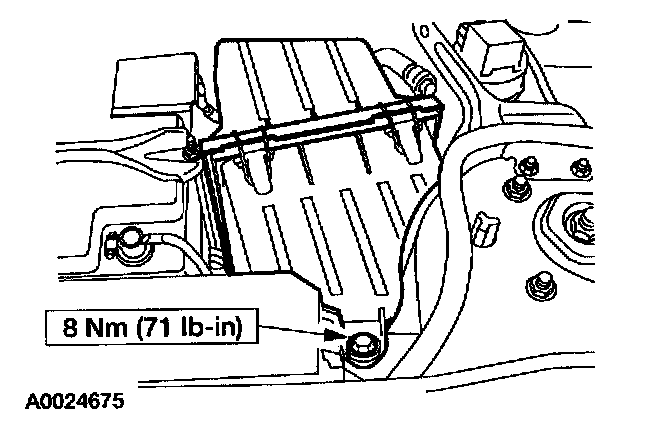

2. Remove the bolt and remove the air cleaner housing.

NOTE: Make sure the two air cleaner feet are seated into the rubber grommets under the air cleaner assembly.

NOTE: The air cleaner outlet pipe should be securely sealed to prevent unmetered air from entering the engine.

3. To install, reverse the removal procedure.
