Muffler: Service and Repair

MUFFLER AND TAILPIPE

1. Raise and support the vehicle.

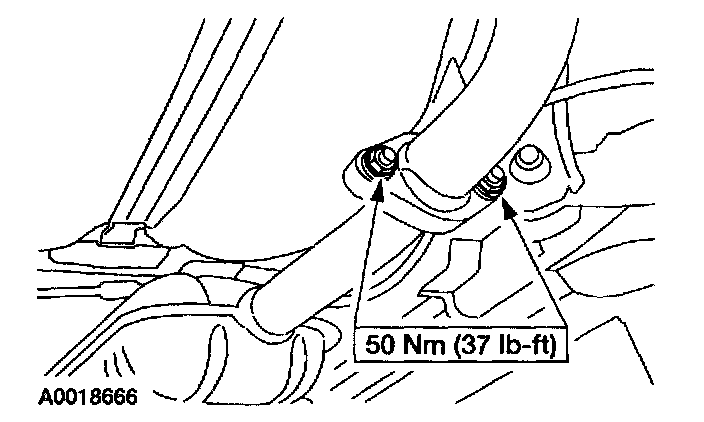

2. Remove and discard the nuts.
1. Discard the gasket.

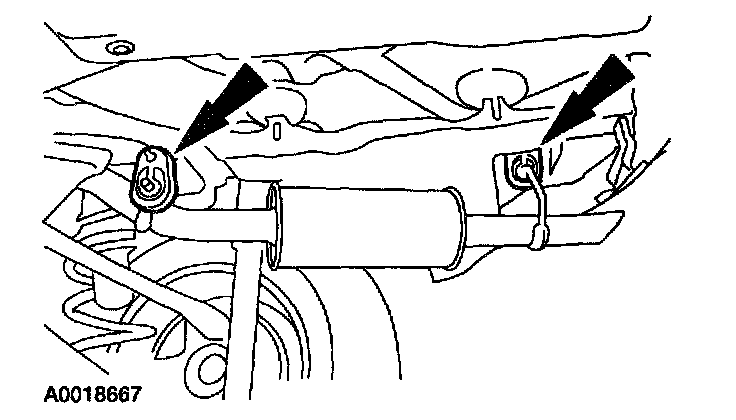

3. Disconnect the muffler from the hanger and remove the muffler.

4. To install, reverse the removal procedure.
1. Install a new gasket.
2. Install new nuts.
