Diameter

PISTON-DIAMETER

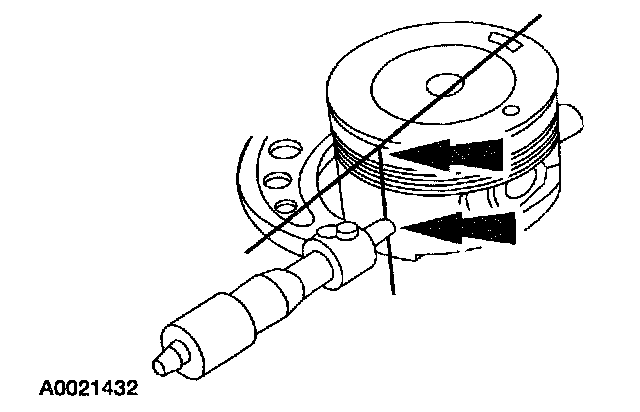

1. Measure the piston dome and skirt diameter 90 degrees from the piston pin at the points indicated.
1. if it is out of specification, install new components as necessary.
