Transmission Control System

TRANSAXLE CONTROL SWITCH (TCS) OR TRANSAXLE CONTROL INDICATOR LAMP (TCIL) CIRCUIT MALFUNCTION

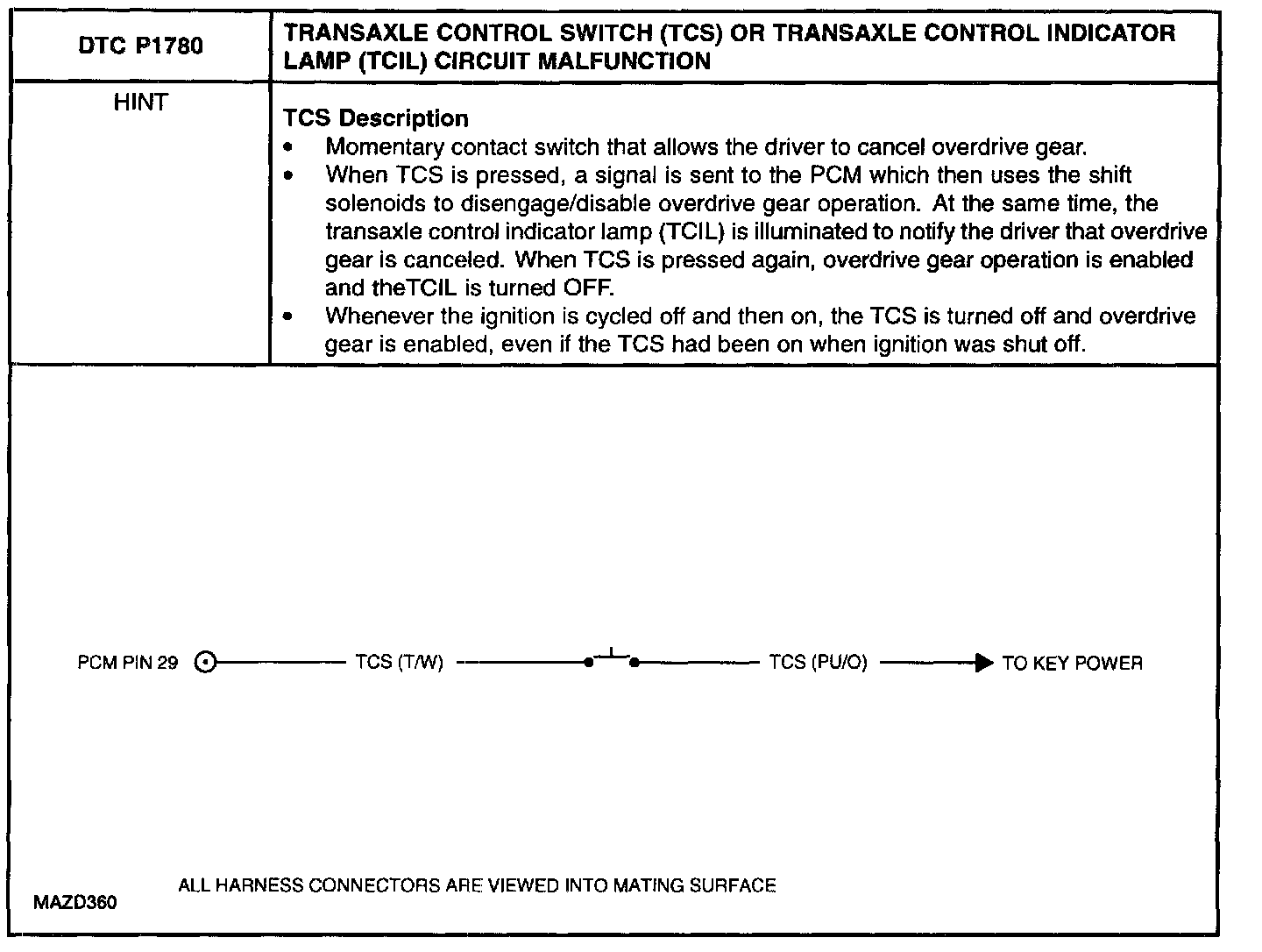

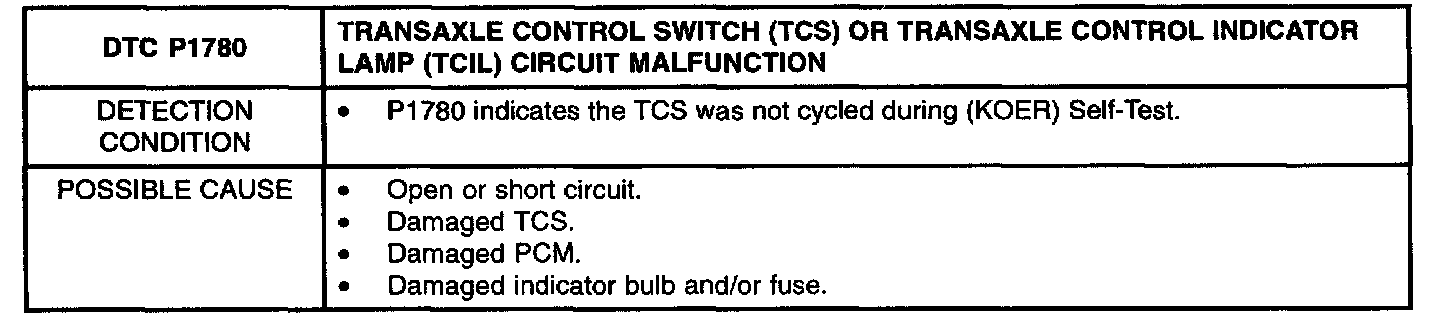

DESCRIPTION





1 of 2





2 of 2

PROCEDURE

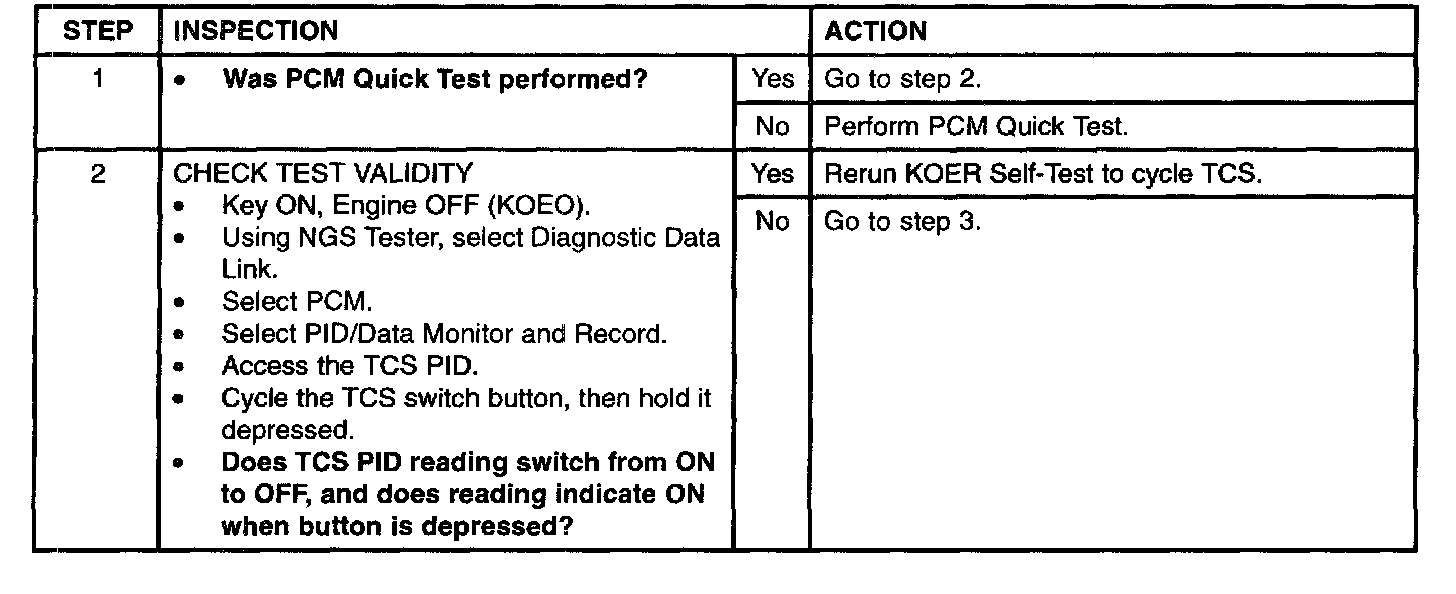

Step 1 and 2

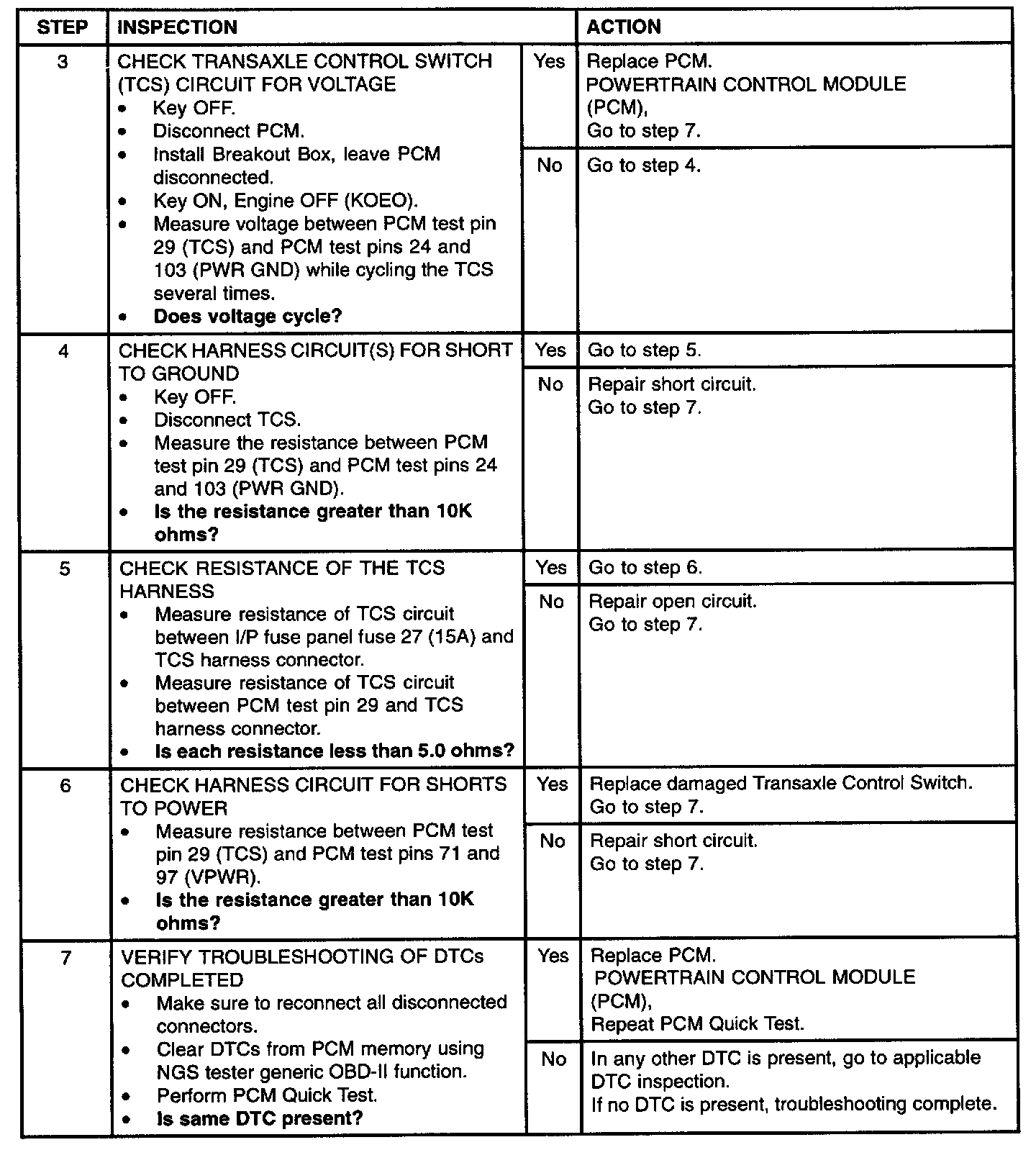

Step 3 - 7
