Mazda Truck
>>
2001
>>
Tribute DX 2WD V6-3.0L DOHC
>>
Repair and Diagnosis
>>
Wiper and Washer Systems
>>
Diagrams
>>
Connector Views
Connector Views

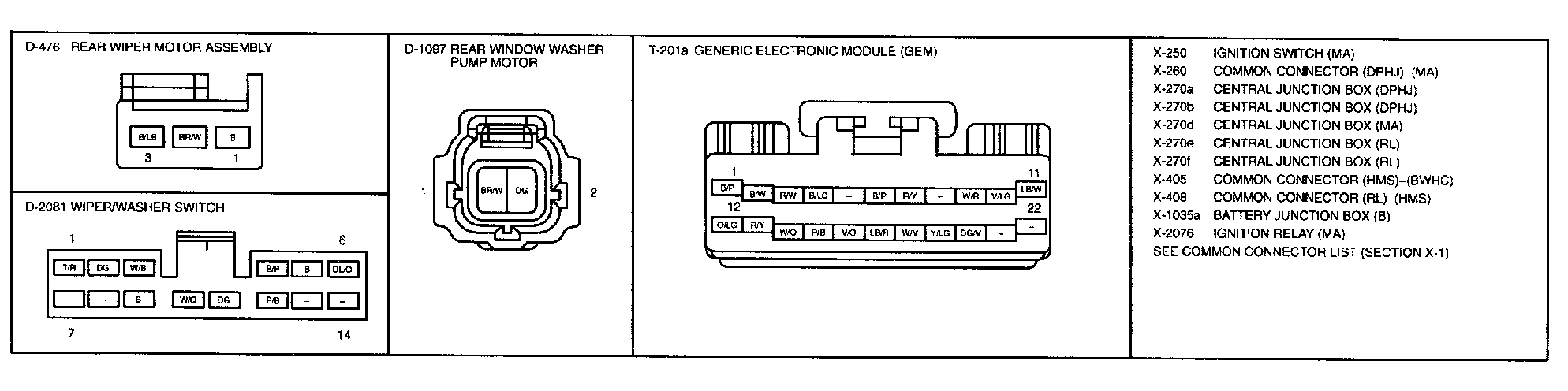

D-a - Interval Wiper/Washer Connectors:
D-b - Interval Wiper/Washer Connectors:
