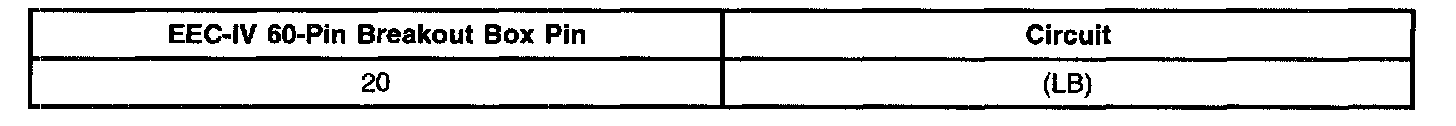

Pinout Values and Diagnostic Parameters
>>
Pinpoint Tests - ABS
>>
Pinpoint Test 1 - No COMM With the ABS Control Module
Pinpoint Test 1 - No COMM With the ABS Control Module

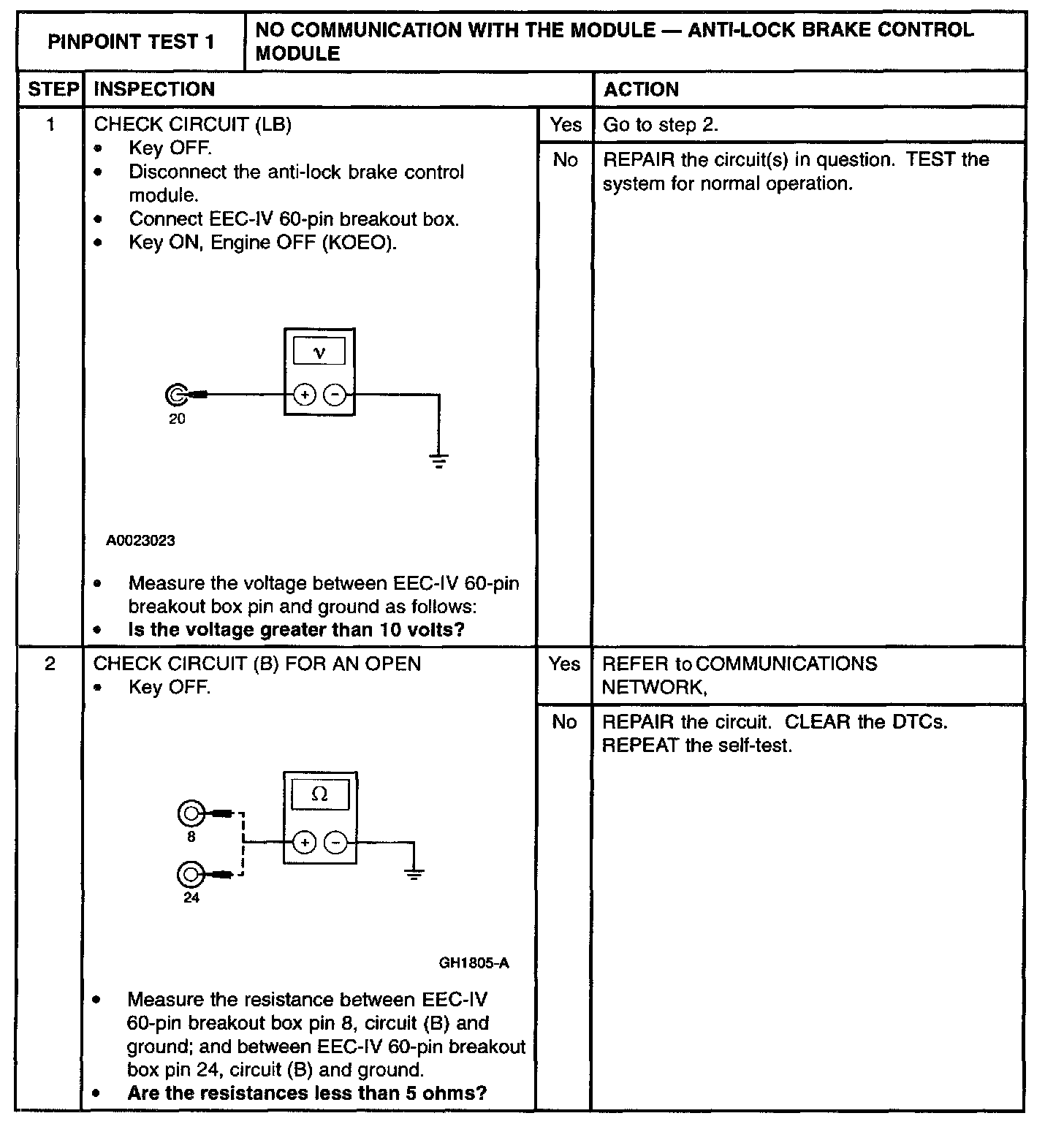

PINPOINT TEST 1: NO COMMUNICATION WITH THE MODULE-ANTI-LOCK BRAKE CONTROL MODULE
Part 1 of 2
Part 2 of 2
