EGR Valve: Service and Repair

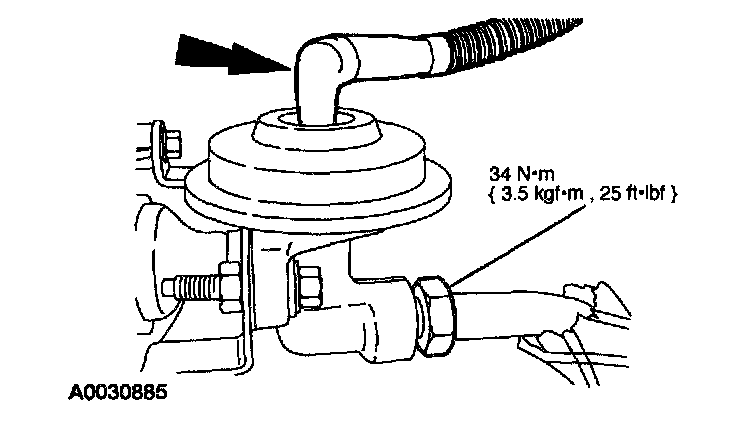

1. Disconnect the exhaust gas recirculation (EGR) valve.
1. Disconnect the vacuum line.
2. Disconnect the EGR valve tube fitting.

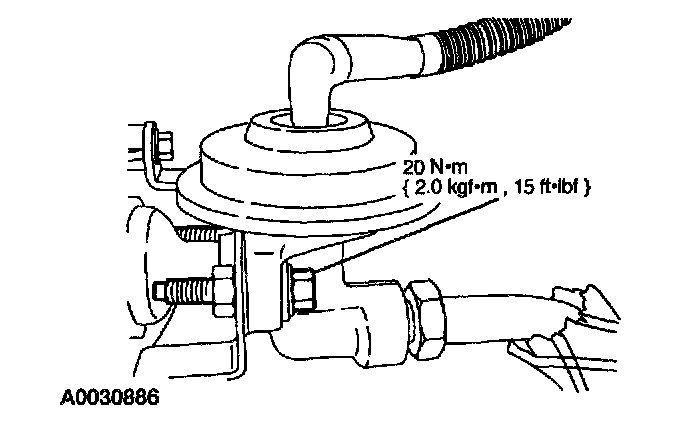

2. Remove the EGR valve bolts and the EGR valve.
1. Discard the gasket.

NOTE: The EGR valve sealing surfaces are soft metal.

NOTE: Use a new gasket when installing the EGR valve.

3. To install, reverse the removal procedure.
1. Carefully clean the EGR valve sealing surfaces.
2. Install a new EGR valve gasket.
