Mazda Truck
>>
2001
>>
B4000 SE Cab Plus 4 4WD V6-4.0L SOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Information Bus
>>
Testing and Inspection
>>
Diagnosis By Symptom
>>
Symptom Chart
Symptom Chart

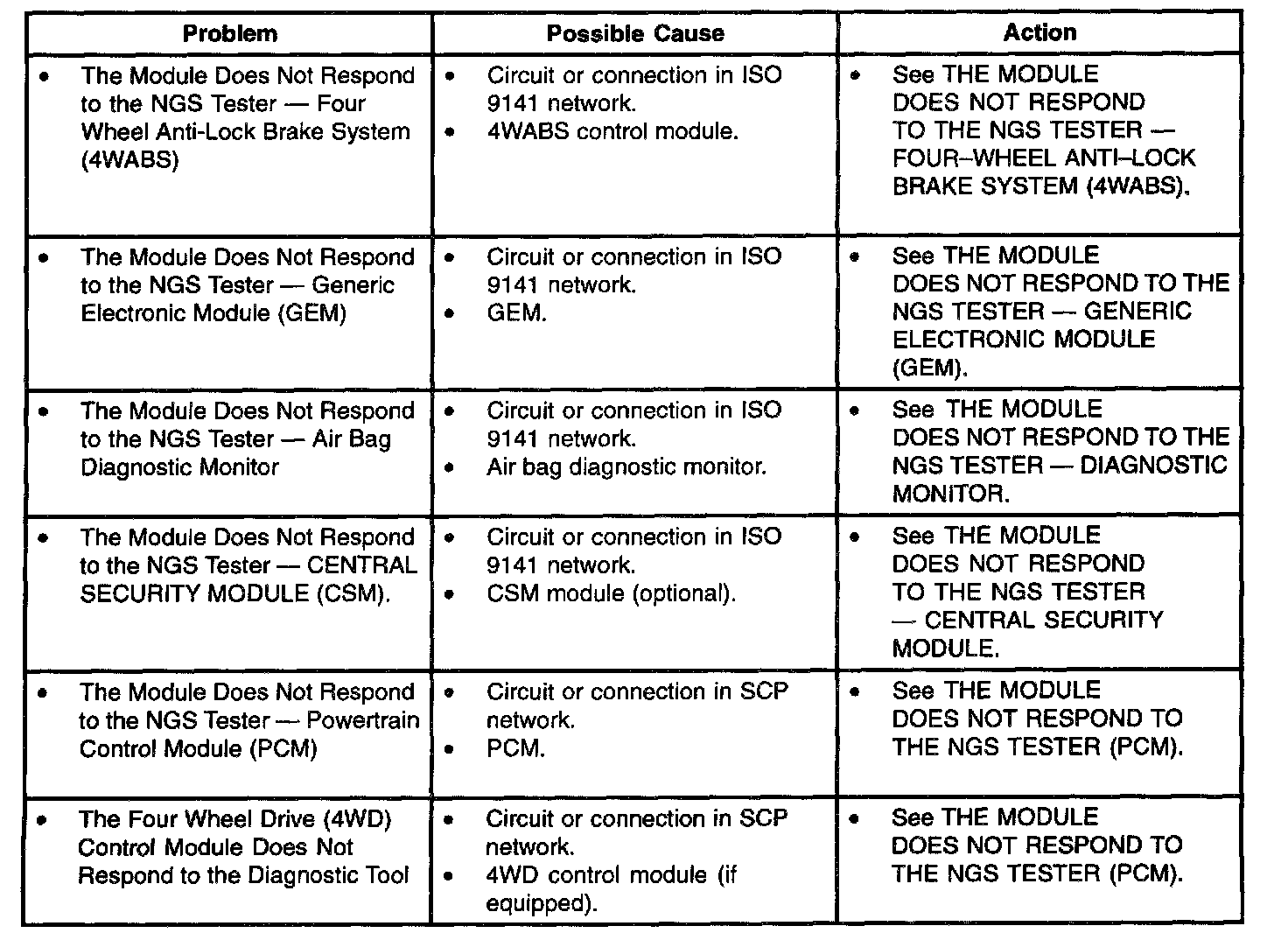

COMMUNICATIONS NETWORK SYMPTOM TROUBLESHOOTING CHART Part 1:

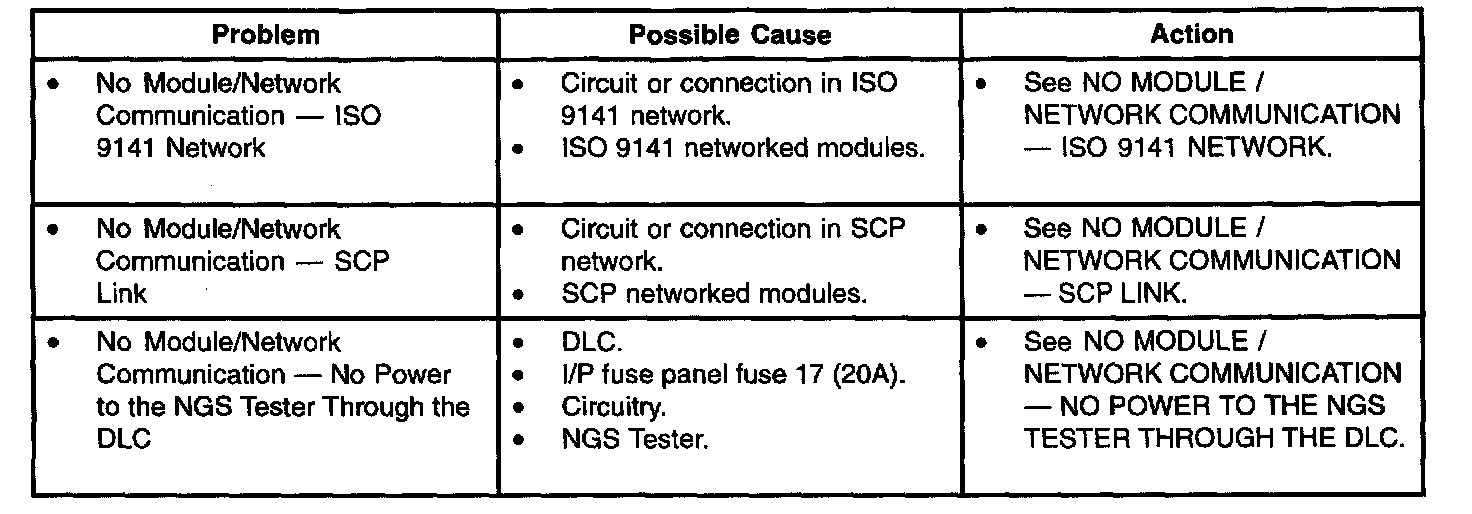

COMMUNICATIONS NETWORK SYMPTOM TROUBLESHOOTING CHART Part 2:
