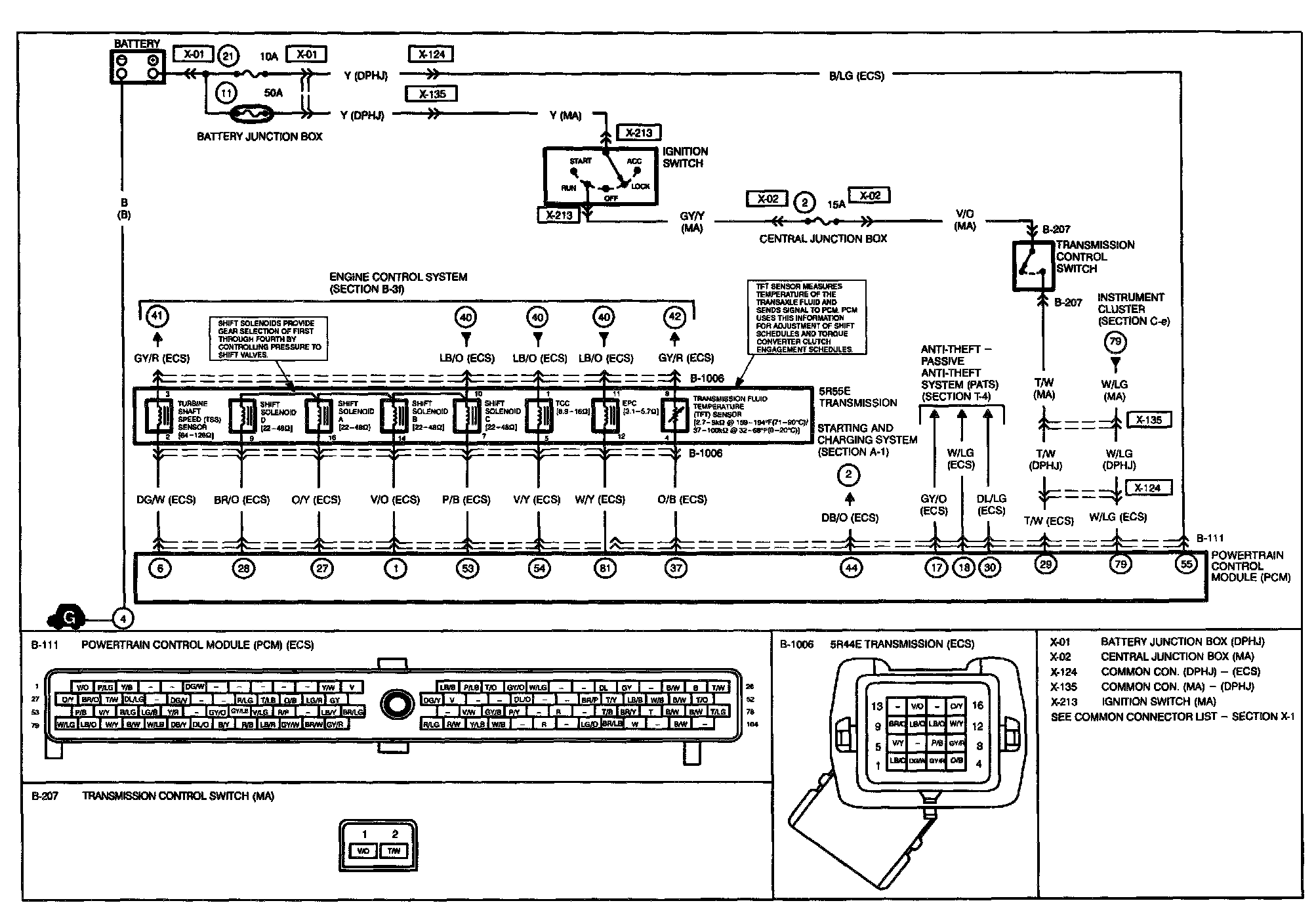

B-3 - Engine Control System

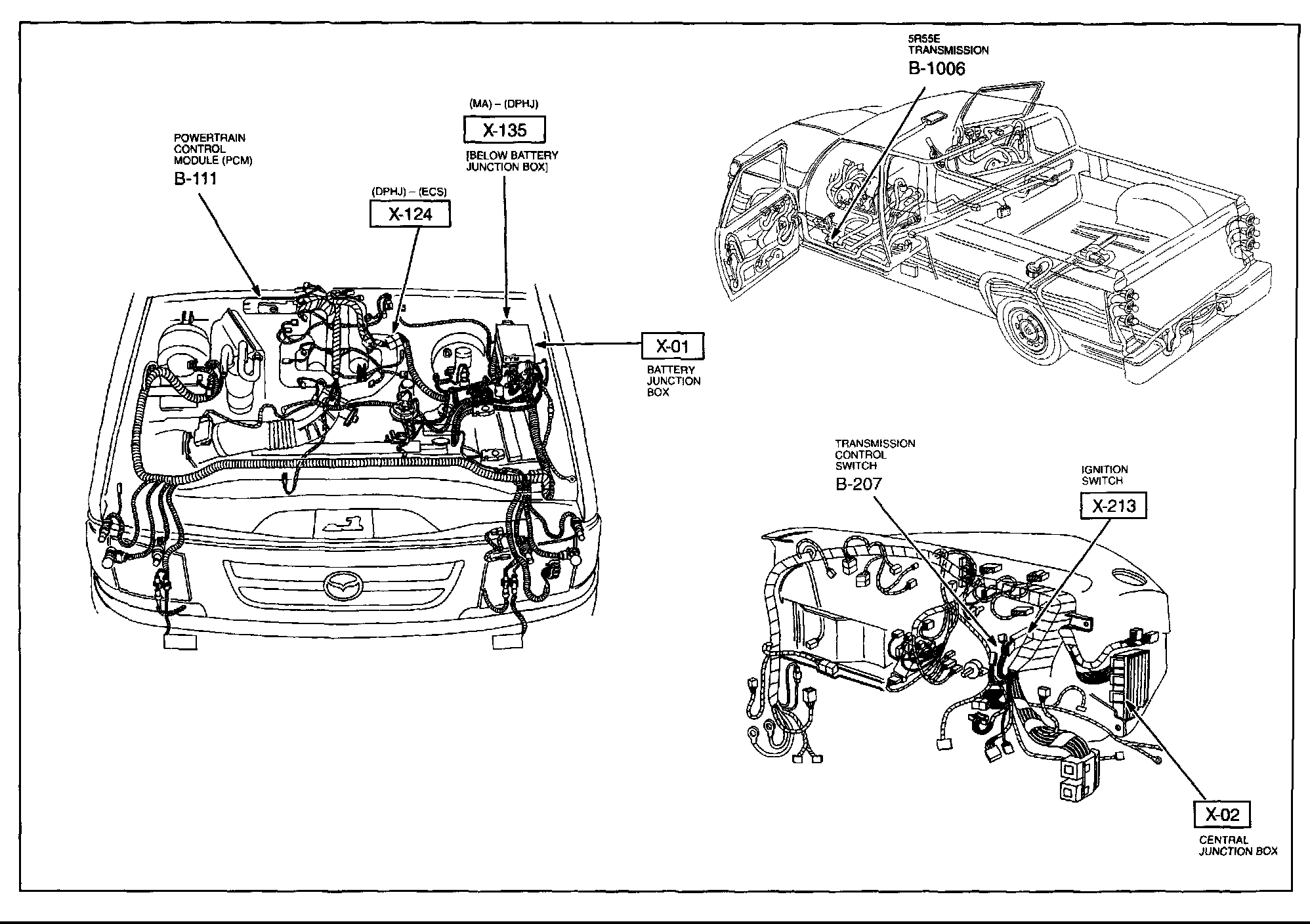

B-3a - Engine Control System Harness/Connector Symbols:

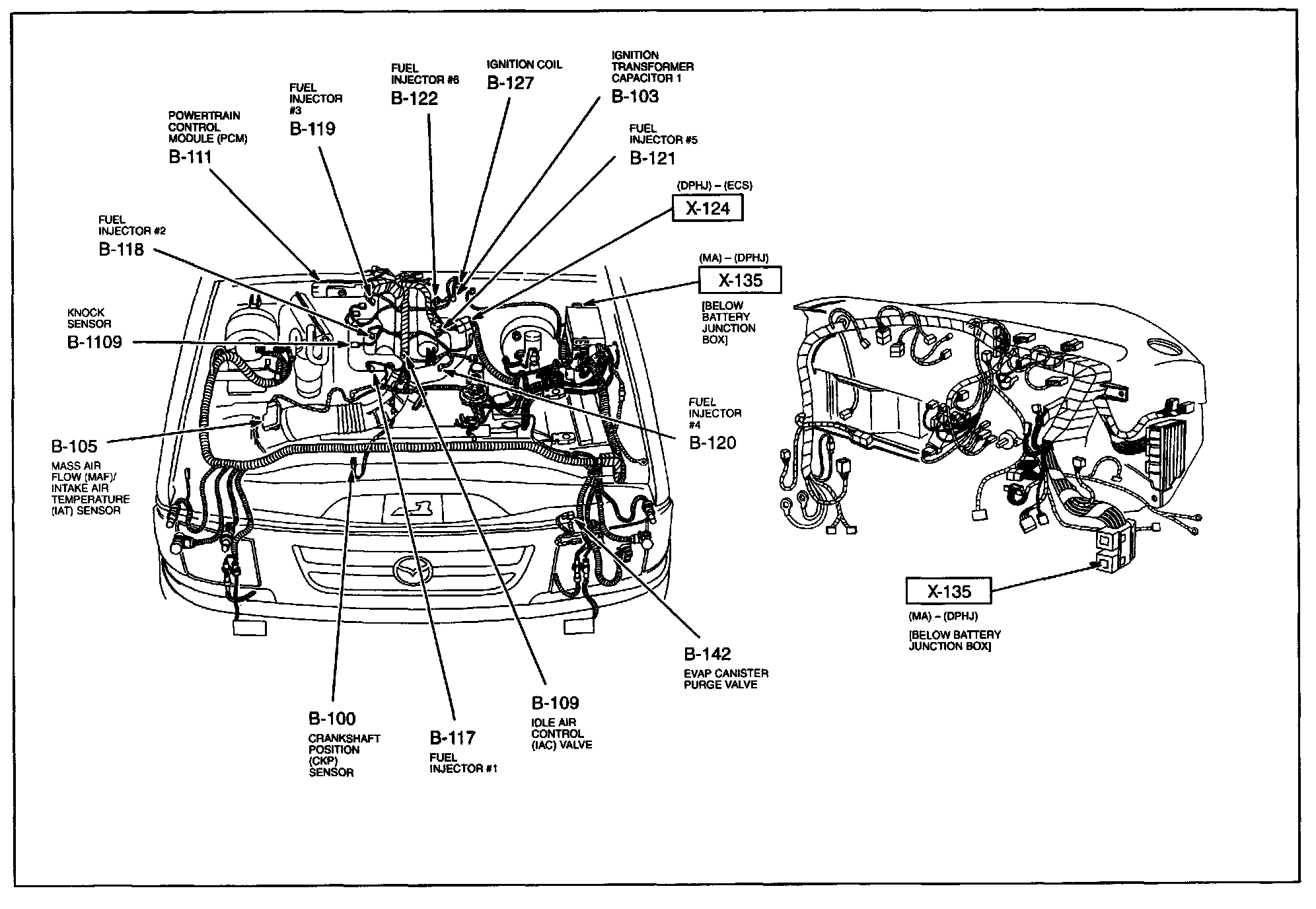

B-3b - Engine Control System Harness/Connector Symbols:

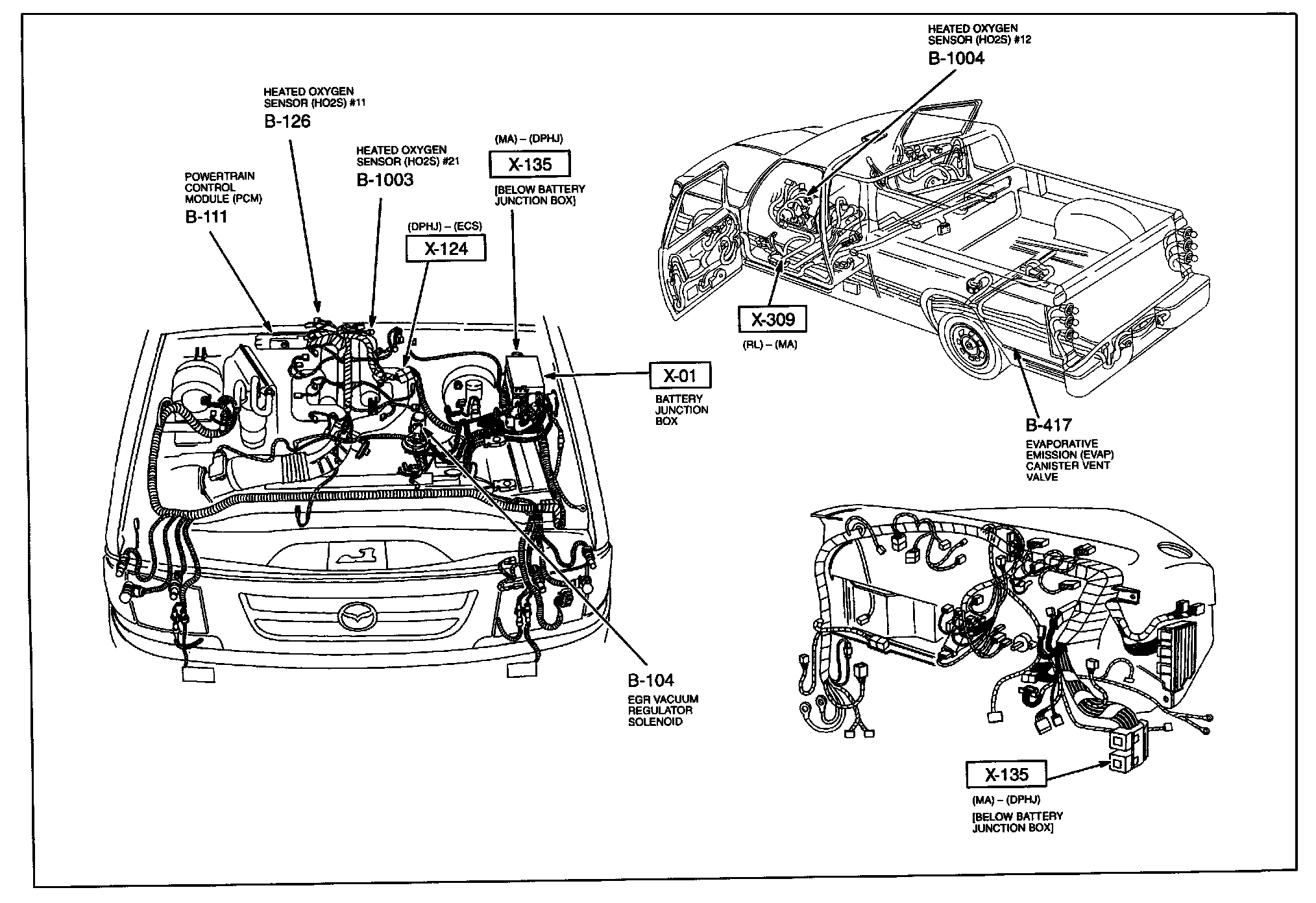

B-3c - Engine Control System Harness/Connector Symbols:

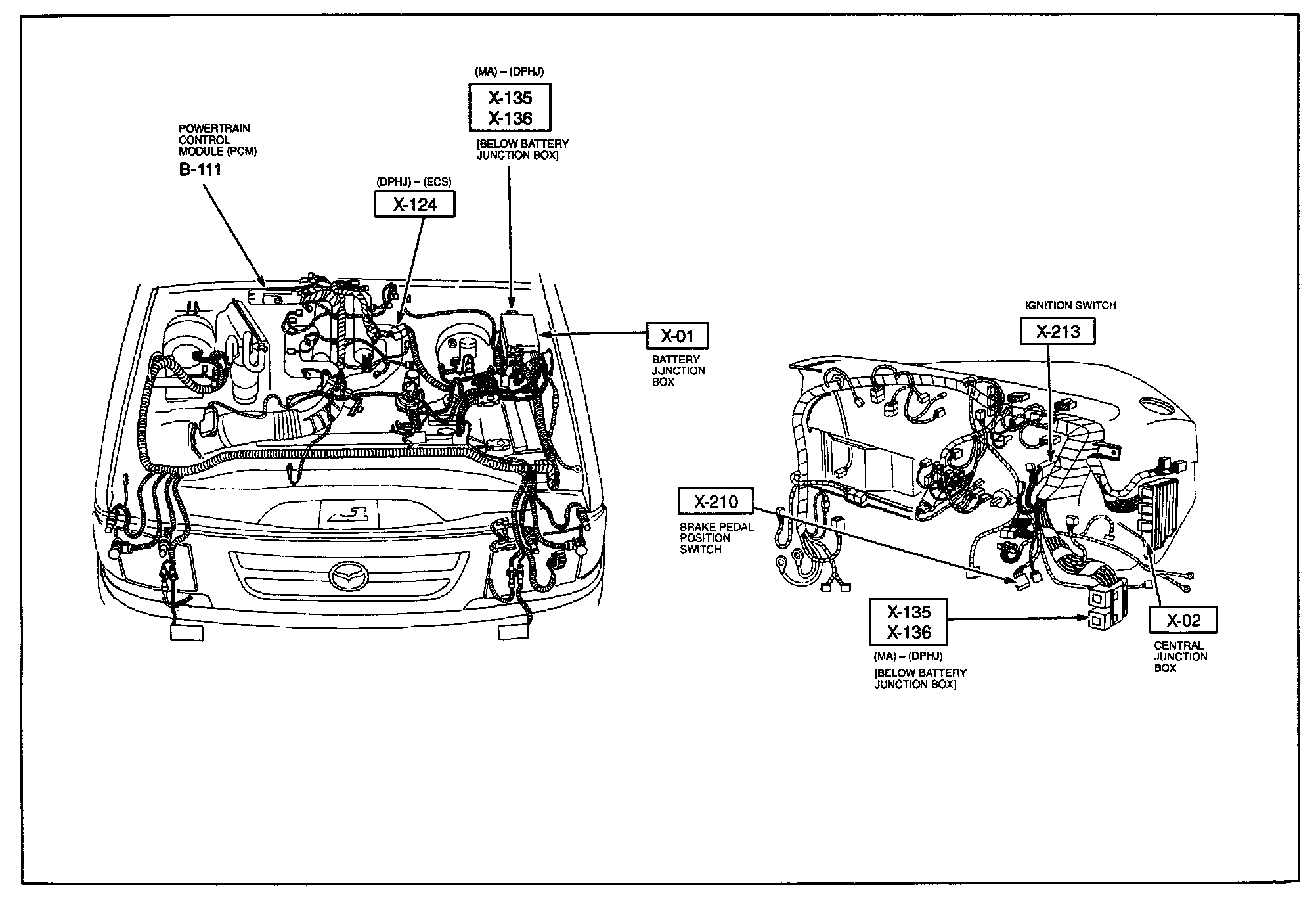

B-3d - Engine Control System Harness/Connector Symbols:

B-3e - Engine Control System Harness/Connector Symbols:

B-3f - Engine Control System Harness/Connector Symbols:
