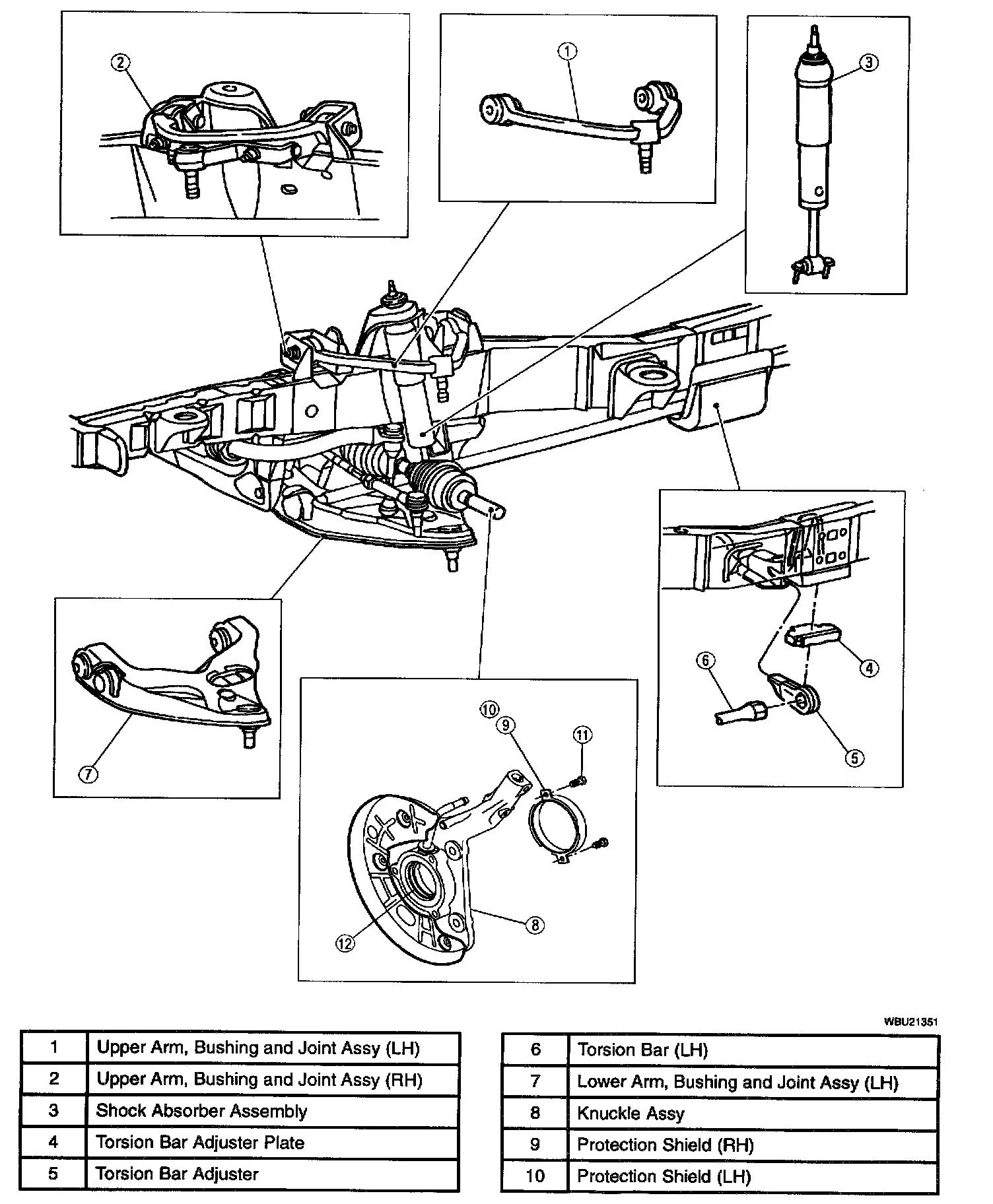

Front Suspension Components

FRONT SUSPENSION COMPONENTS

Part 1 Of 2:

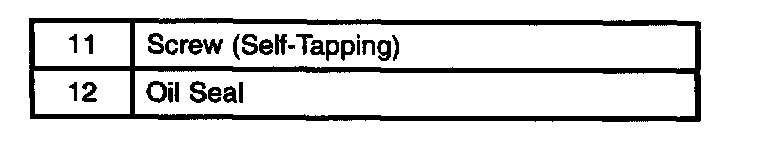

Part 2 Of 2:





Front Suspension Components - 4x4
