Mazda Truck
>>
2001
>>
B4000 SE Cab Plus 4 4WD V6-4.0L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Transfer Case
Transfer Case

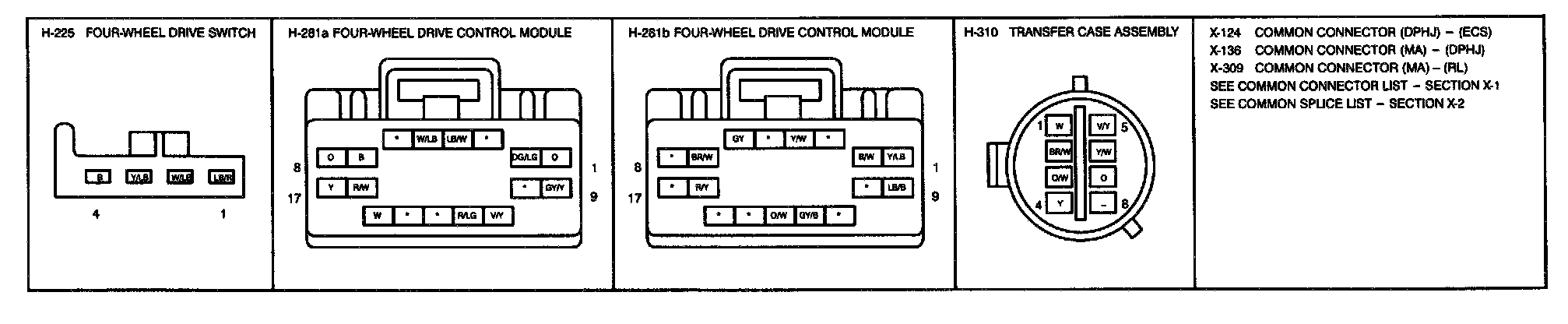

H-2a - Electronic Shift Control Connectors:
H-2b - Electronic Shift Control Connectors:

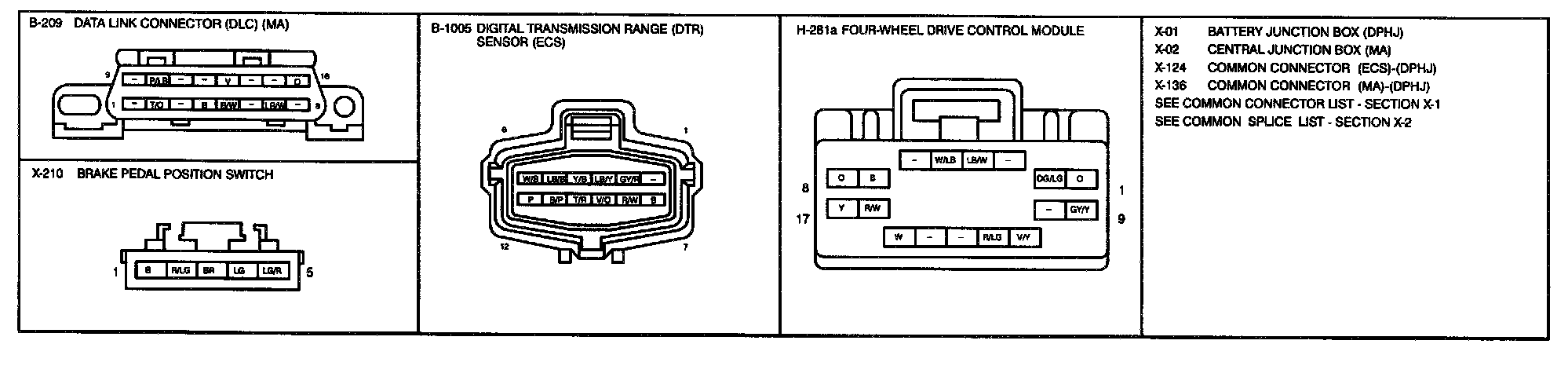

H-2c - Electronic Shift System Connectors:
