Mazda Truck
>>
2001
>>
B3000 SE Cab Plus 4 2WD V6-3.0L OHV
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Clutch, M/T
Clutch, M/T

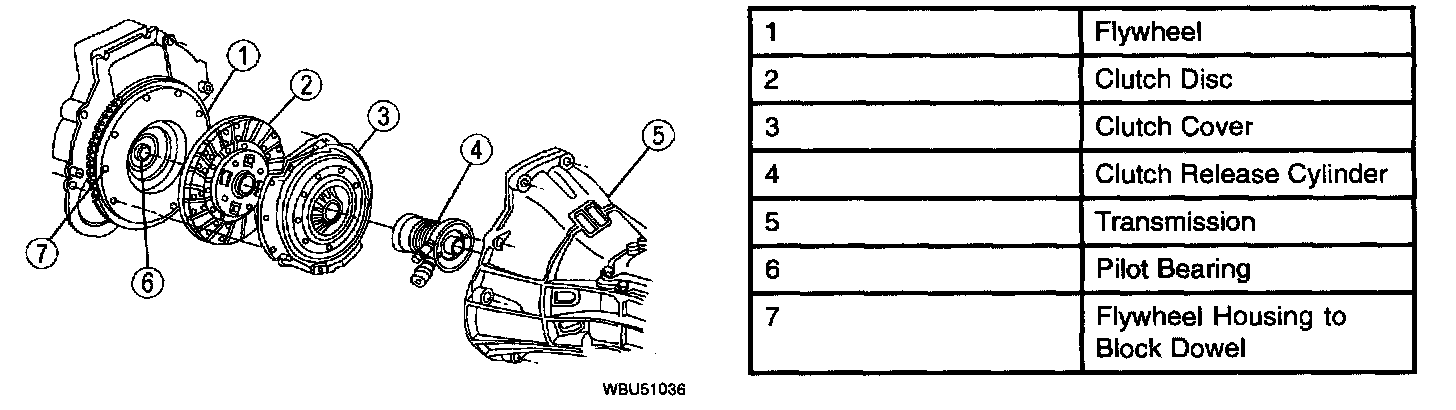

CLUTCH UNIT STRUCTURAL VIEW
View and Legend
