Home
>>
Mazda Truck
>>
2001
>>
B3000 DS Cab Plus 2WD V6-3.0L OHV
>>
Repair and Diagnosis
>>
Windows and Glass
>>
Windows
>>
Window Glass
>>
Front Door Window Glass
>>
Service and Repair
>>
Center Door Glass Run Retainer
Center Door Glass Run Retainer
1.
Remove the door glass.
1.

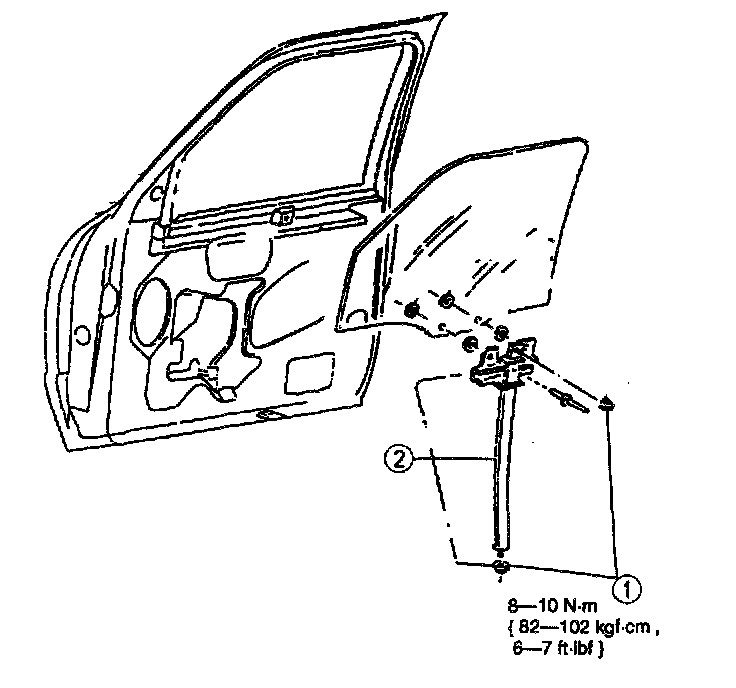

Remove in order shown as shown below.
1.
Nuts
2.
Center door glass run retainer
3.
Install in reverse order of removal.
