Test 1: Shift Interlock System Does Not Operate Properly

PINPOINT TEST 1: SHIFT INTERLOCK SYSTEM DOES NOT RELEASE/LOCK PROPERLY

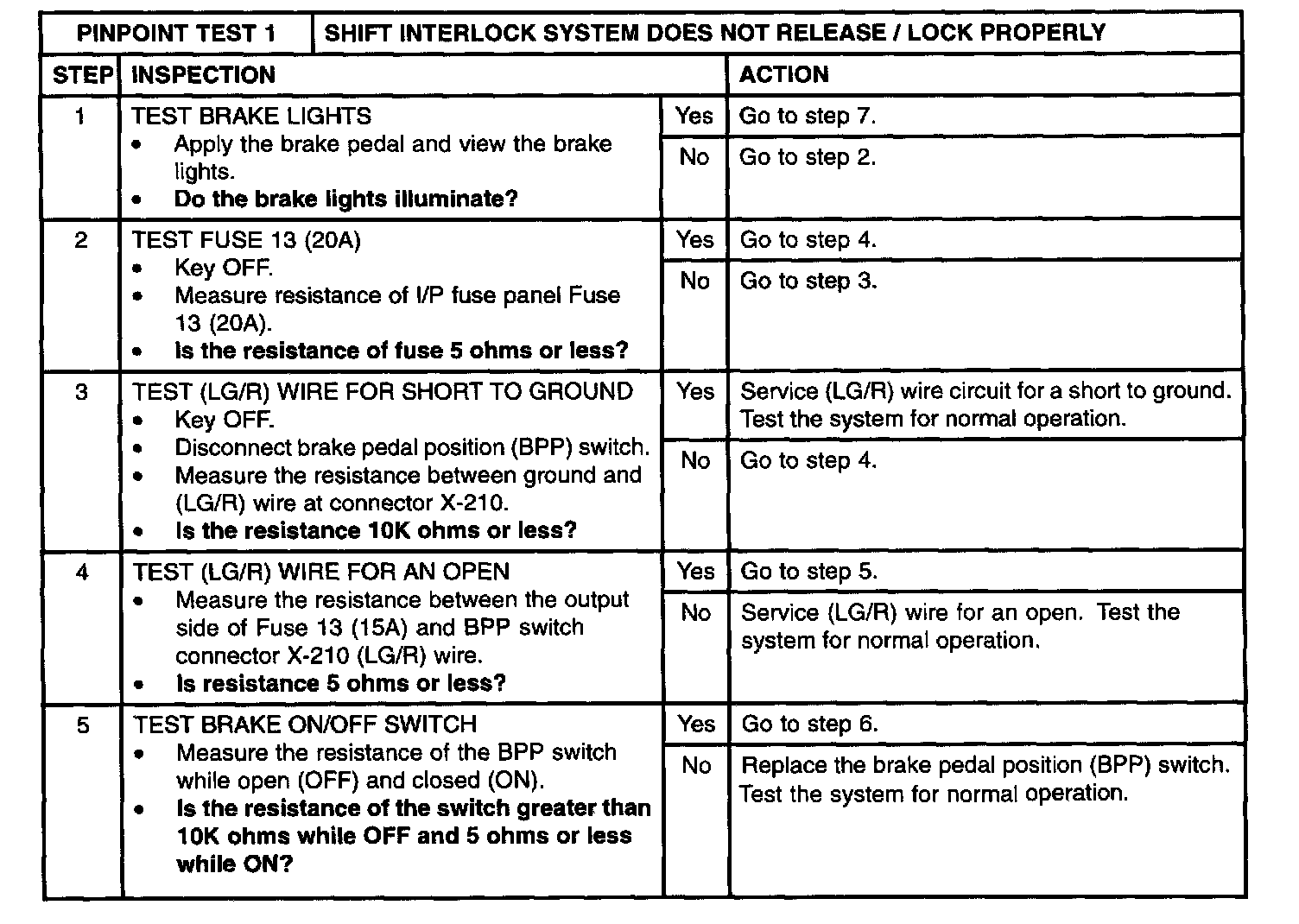

Step 1 - 5

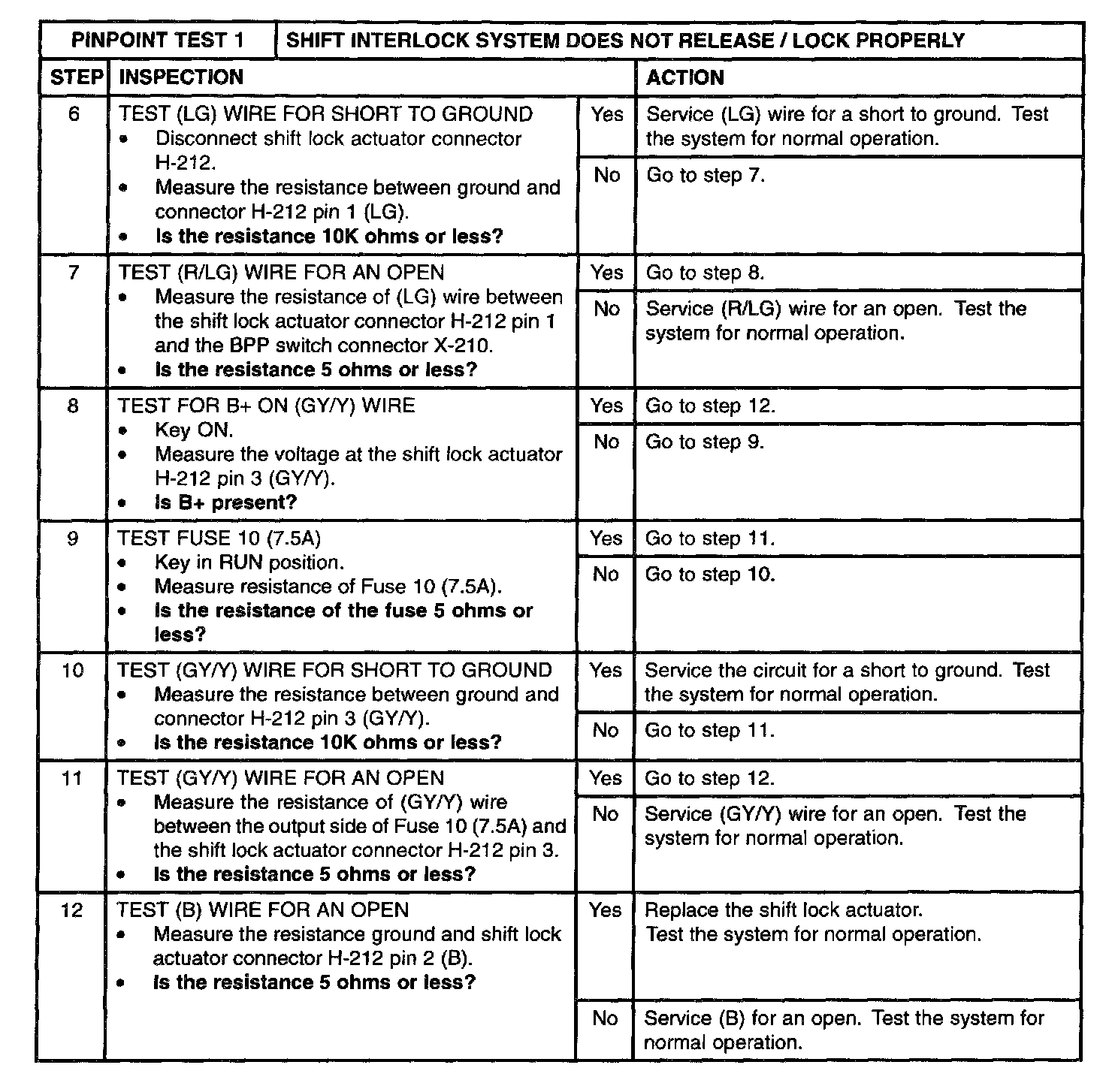

Step 6 - 12

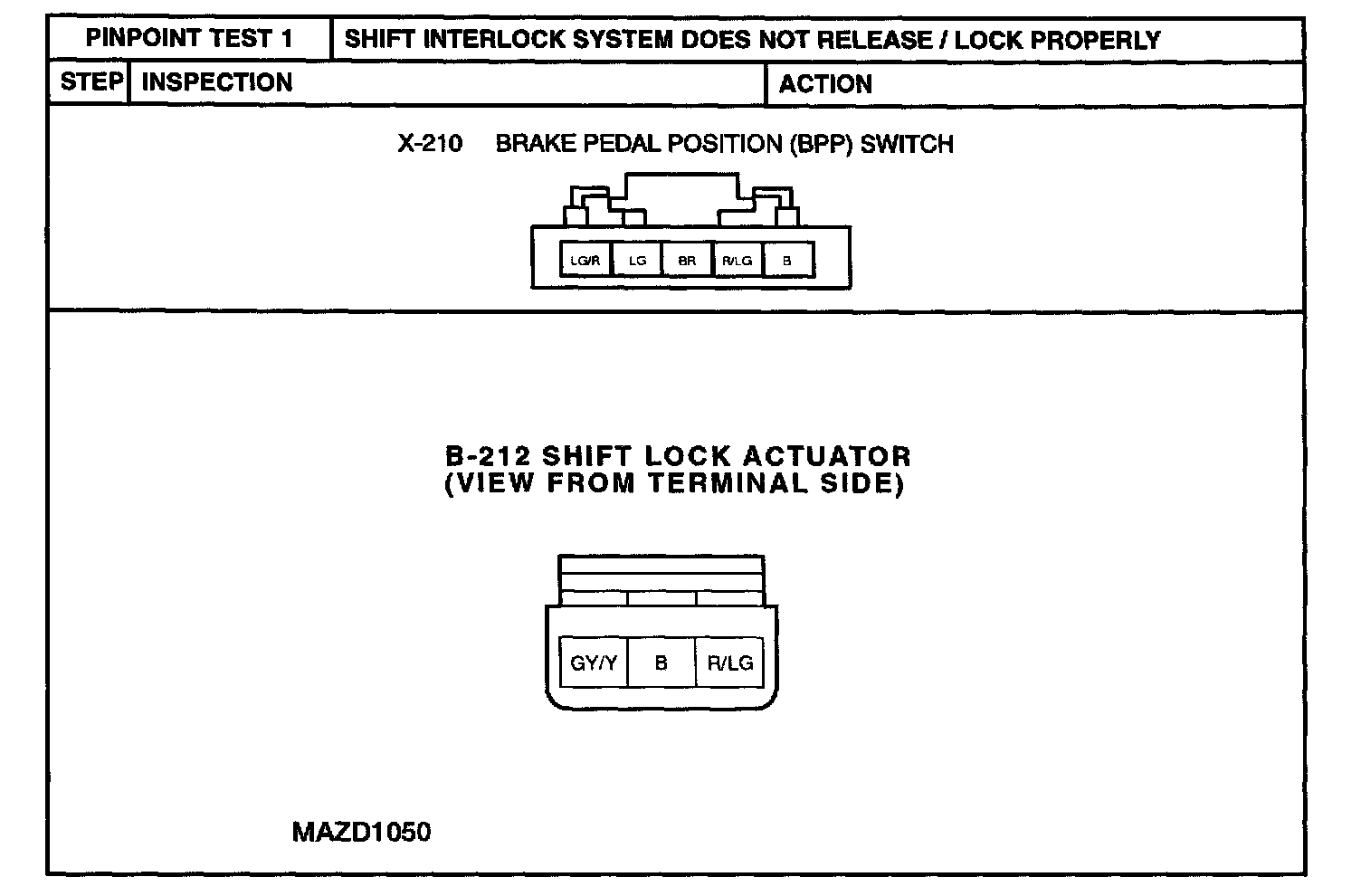

Terminal View
