Overdrive Shaft and Carrier Hub Assembly Disassembly / Assembly

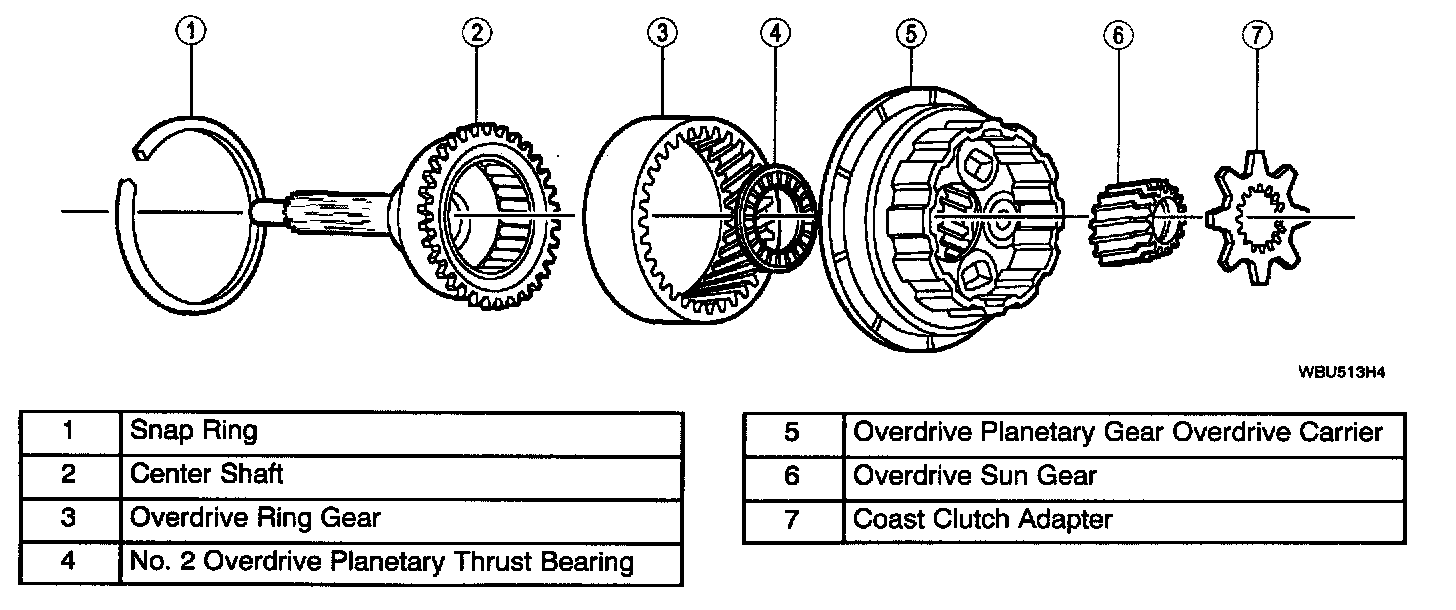

OVERDRIVE SHAFT AND CARRIER HUB ASSEMBLY DISASSEMBLY / ASSEMBLY






DISASSEMBLY NOTE

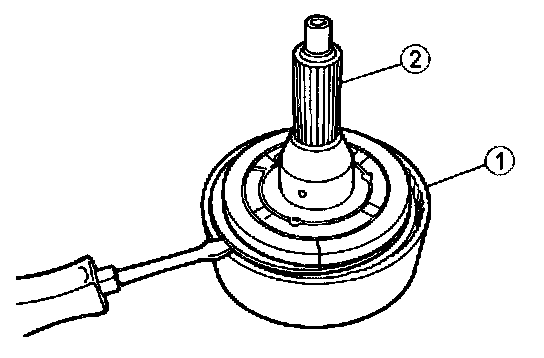

1. Remove the overdrive center shaft from the overdrive ring gear.
(1). Remove the overdrive center shaft snap ring.
(2). Remove the center shaft from the ring gear.





NOTE: The overdrive one-way clutch is serviced with the center shaft assembly.

CAUTION: Do not remove the overdrive one-way clutch. Damage to the clutch may occur if it is removed.

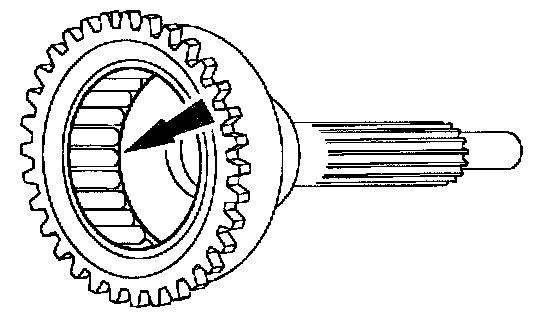

2. Clean and inspect the overdrive one-way clutch and center shaft.
(1). Inspect for cracks in the roller cage and wear on the roller clutch, the press fit of the one-way clutch to the center shaft, and the spring and roller cage for bent or damaged spring retainers.





3. Inspect the one-way clutch.

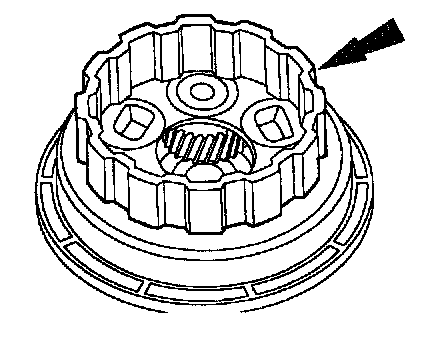

(1). Temporarily insert the overdrive planetary gear carrier assembly into the one-way clutch rollers for verification of the one-way clutch.
(2). The planetary gear must rotate counterclockwise and hold when rotated clockwise.
(3). Remove the planetary gear carrier assembly.


ASSEMBLY NOTE




1. Install the center shaft and one-way clutch.
(1). Install the center shaft and one-way clutch.
(2). Install the center shaft snap ring.
