Part 2

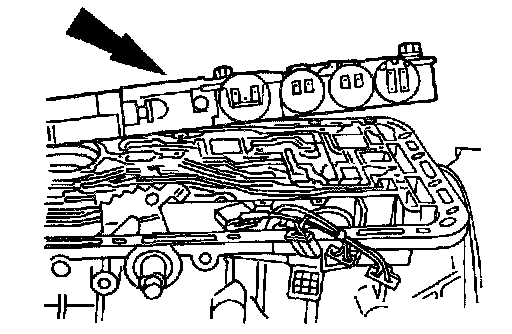

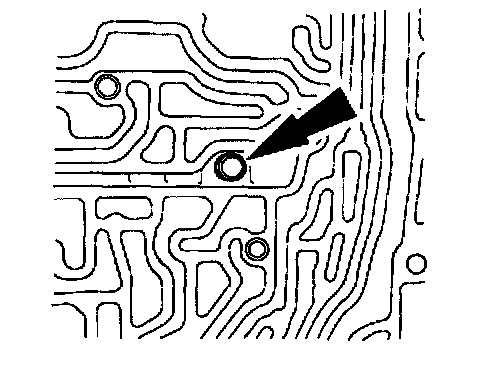

26. Remove the main control valve body, valve body separator plate and main control to case gaskets.
(1). Discard gaskets.

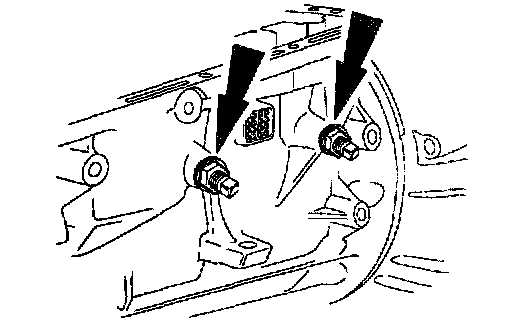

CAUTION: Throw the locknuts away. The locknuts are not reusable for assembly.





27. Remove the locknuts. Back oft screws.

CAUTION: Servo cover is under spring tension.





28. Remove the intermediate servo cover retaining ring.

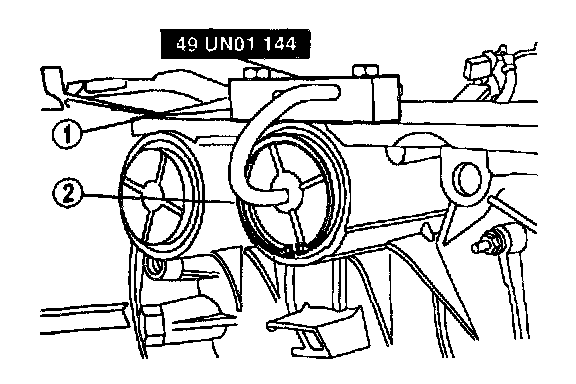

(1). Install SST. Using 1/2 inch wrench, tighten nut on J-hook until there is a gap between cover and snap ring.
(2). Remove the snap ring.
(3). Remove SST.





29. Remove servo cover, piston and spring by gently pushing on hook-type tool. Use a small piece of cardboard or similar material to prevent tool from damaging passage.

NOTE: Tag the servo cover, piston and spring. Label accordingly for assembly. The covers have letters cast on the outer surface for identification.

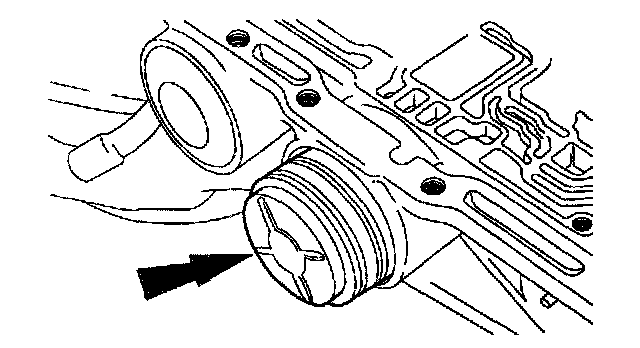

30. Remove the intermediate band servo cover, piston and spring.

CAUTION: Servo cover Is under spring tension.





31. Remove the overdrive servo cover.

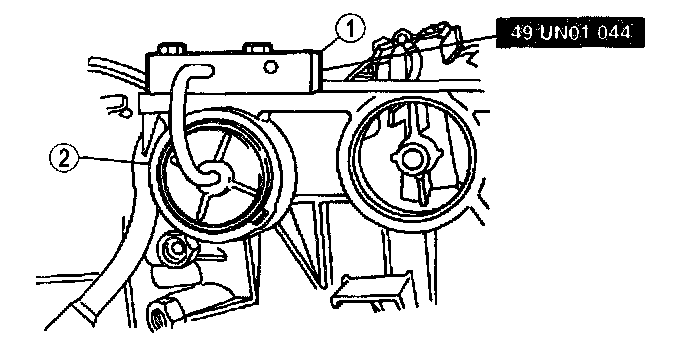

(1). Install SST and compress the overdrive servo cover. Using 1/2 inch wrench, tighten nut on J-hook until there is a gap between cover and snap ring.
(2). Remove the snap ring.
(3). Remove SST.

32. Remove servo cover, piston and spring by gently pushing on hook-type tool. Use a small piece of cardboard or similar material to prevent tool from damaging passage.

NOTE: Tag the servo cover, piston and servo piston spring. Label accordingly for assembly. The covers have letters cast on the outer surface for identification.

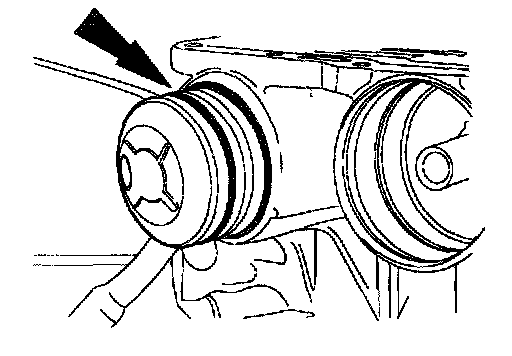

33. Remove the overdrive band servo cover, piston and spring.

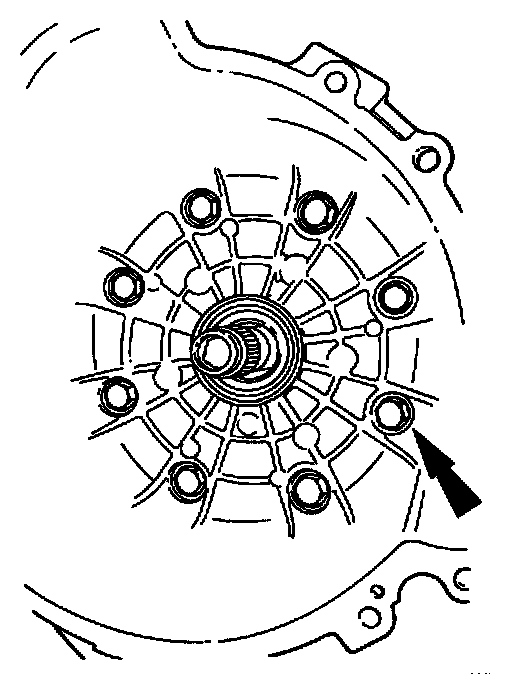

34. Remove the converter housing-to-case screws. Discard the screws.

CAUTION: Discard the screws. The screws are not re-usable for assembly.

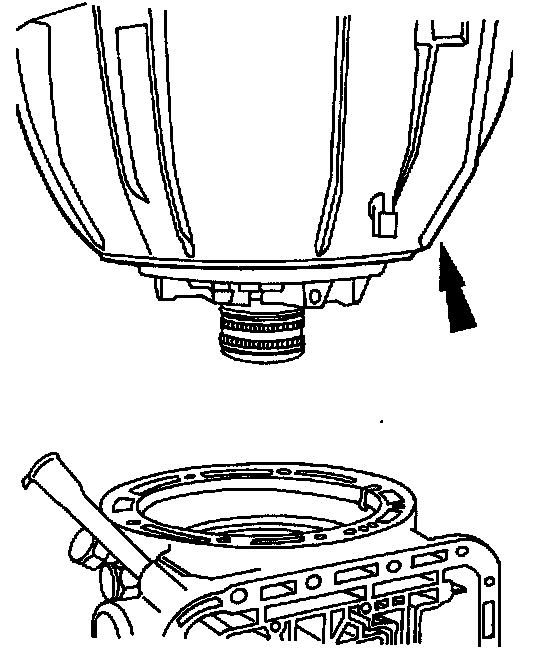

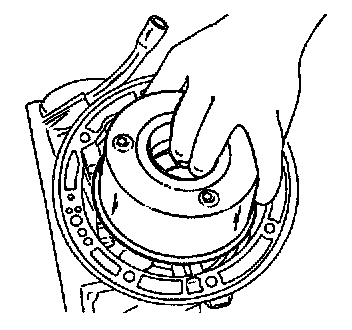

35. Remove the converter housing and oil pump support.
(1). Turn and lift the converter housing and oil pump support from the case.

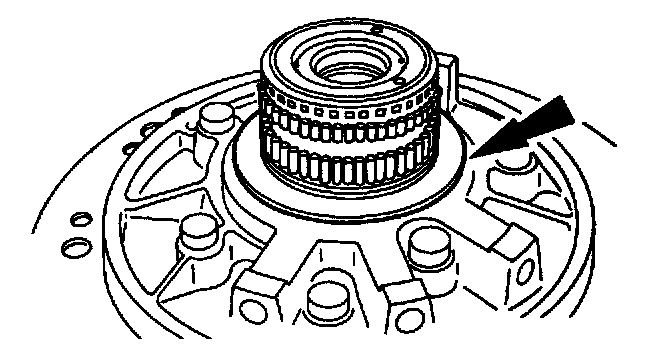

36. Remove the oil pump input thrust washer (No.1).
(1). Tag and identify the thrust washer.

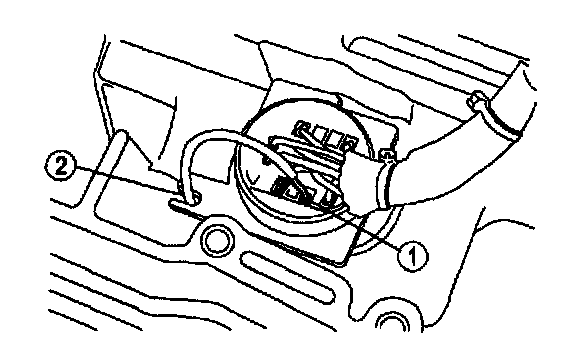

37. Remove the overdrive band adjusting screw.

CAUTION: Identify the anchor and apply ends of the overdrive band.





38. Compress the overdrive band around the overdrive brake and coast clutch drum and remove the overdrive band anchor strut.





39. Remove the overdrive band.





40. Remove the overdrive brake and coast clutch drum.





41. Remove the overdrive band apply strut.

NOTE: The overdrive band lever shaft is longer than the intermediate band lever shaft.





42. Remove the overdrive band actuating lever shaft.

CAUTION: Do not bend trigger wheel.

NOTE: The No.2 thrust bearing is in this assembly.

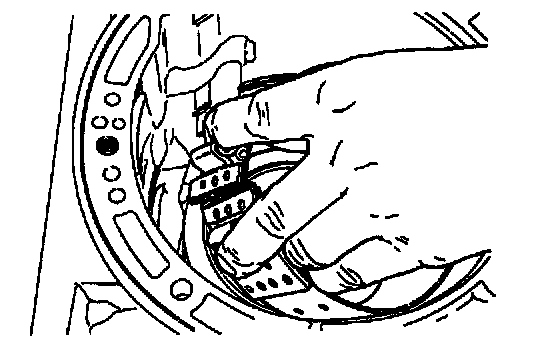

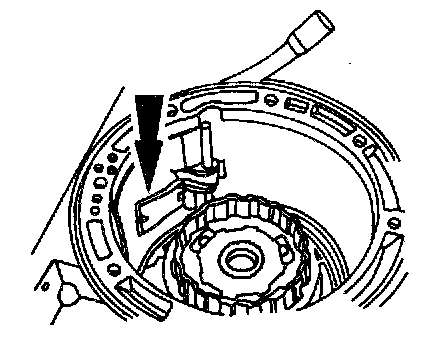

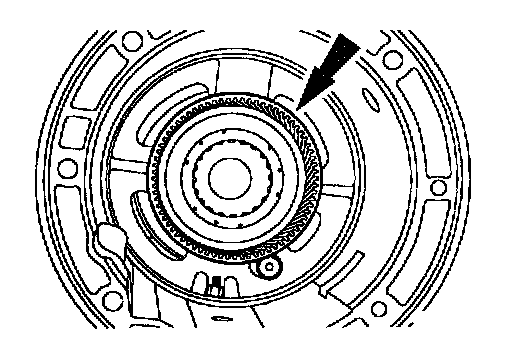

43. Remove the planetary gear front carrier.

NOTE: Tag and identify the overdrive band servo lever. The overdrive servo band lever has a letter stamped on the side.

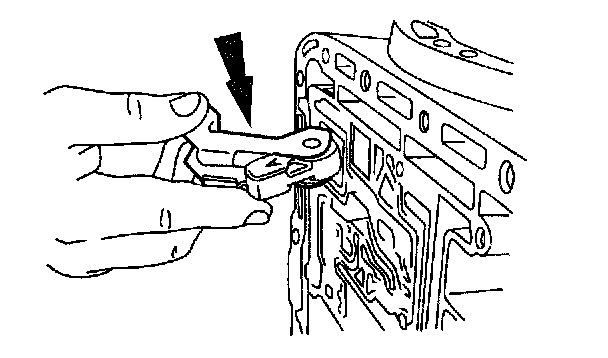

44. Remove the overdrive servo band lever and overdrive band lever to case bracket.

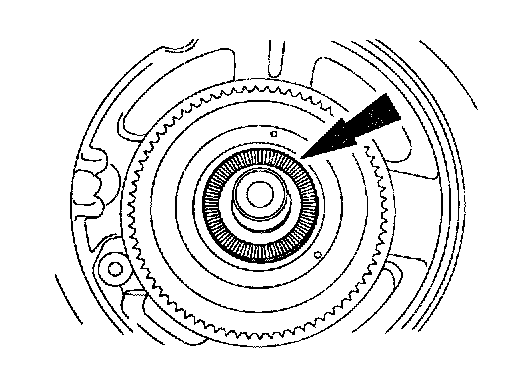

45. Remove the overdrive planet thrust needle bearing (No.2).

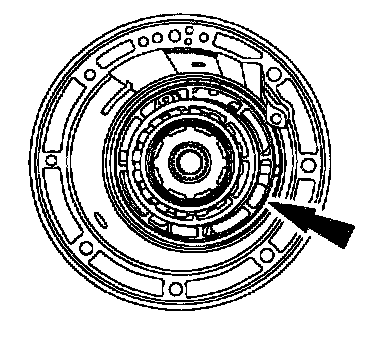

46. Remove the overdrive ring gear, overdrive one-way clutch assembly, and center shaft as an assembly.

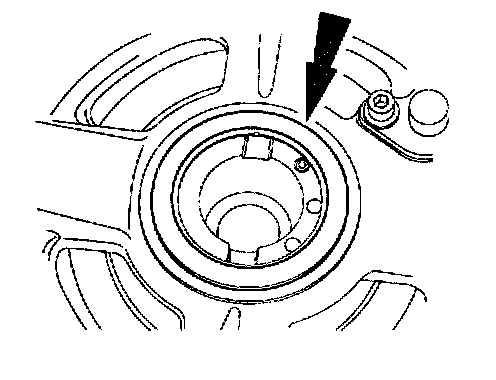

47. Remove the No.3 center shaft thrust bearing.

NOTE: Tag and identify the center shaft thrust bearing (No.3) for assembly.

CAUTION: The center 8upport locknut could fall into the remaining assembly if not removed. This is not serviced separately.

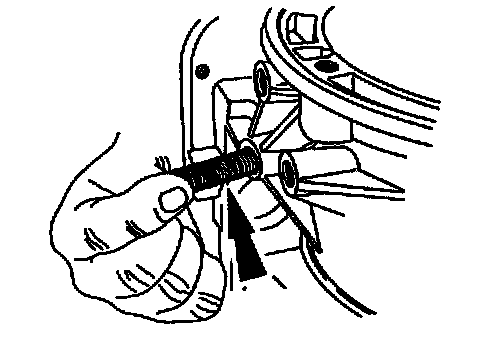

48. Remove the M6 X 20 center support cap screw using a 5 mm alien wrench.





49. Remove the center support locknut and cage.

CAUTION: Do not pry on other wires or damage the connector or case surface.





50. Disconnect the turbine shaft speed (TSS) sensor electrical connector.
(1). Remove the TSS sensor electrical connector from the transmission case (16 pin) electrical connector.

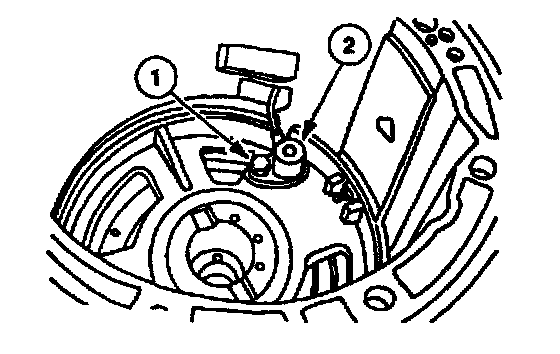

(2). Remove the TSS sensor connector wires from wire locator.

CAUTION: Carefully route the TSS connector and wiring into the transmission through the opening in the case.

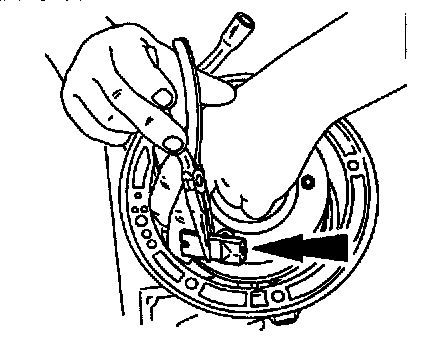

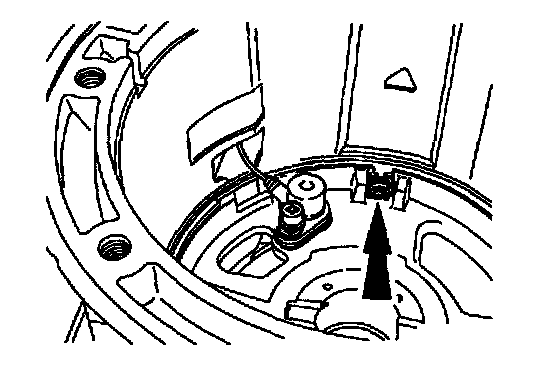

51. Remove the TSS sensor.
(1). Remove the TSS sensor screw.
(2). Remove the TSS sensor.

CAUTION: Do not overstretch the retaining spring.





52. Remove the transmission case (16 pin) electrical connector retaining spring.

CAUTION: Do not damage the connector or harness.

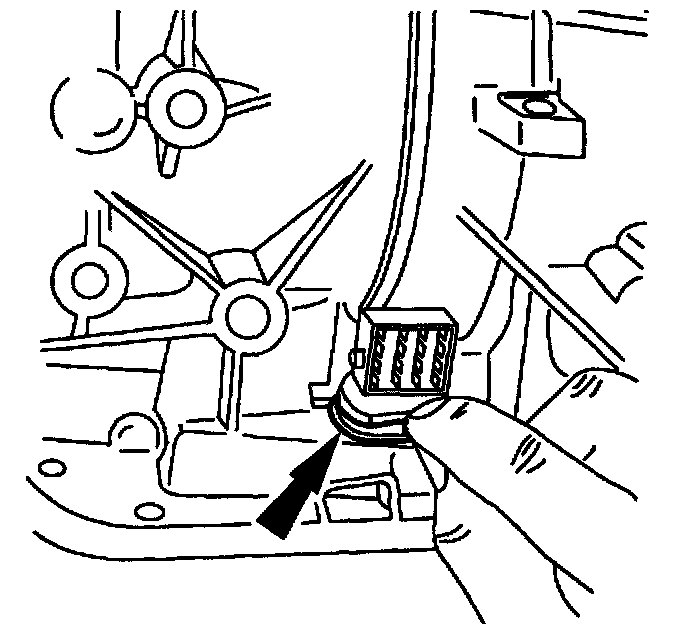

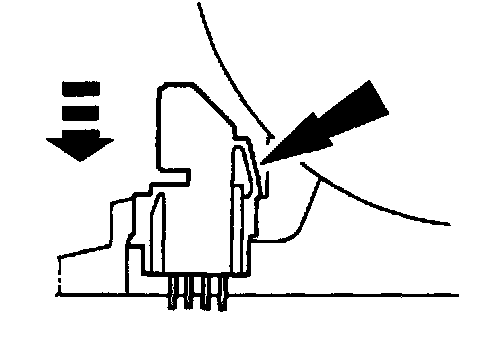

53. Carefully push down on the top of the connector until it stops. Depress the tabs and push down on the connector. Remove the connector and harness through the bottom of the case.
