Air Cleaner Housing: Service and Repair

ENGINE AIR CLEANER REMOVAL / INSTALLATION

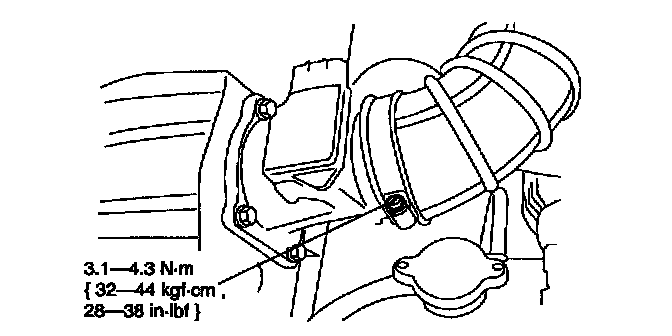

1. Remove the air cleaner outlet tube from the mass air flow (MAF) sensor.
2. Disconnect the MAF sensor connector.





Note:

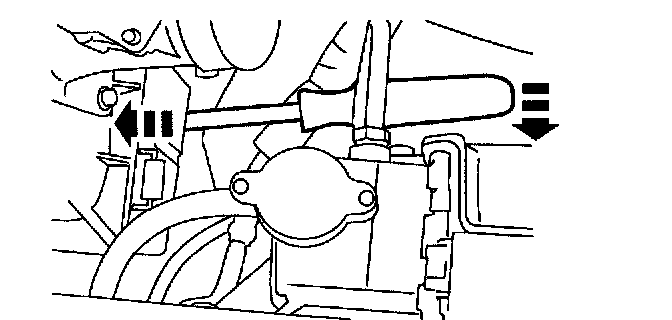

^ Pry the engine air cleaner from the base.

3. Remove the engine air cleaner.

Note: Clean the engine air cleaner with a dry, clean cloth.

4. Install in reverse order of removal.
