Accelerator Pedal: Service and Repair

ACCELERATOR PEDAL REMOVAL / INSTALLATION

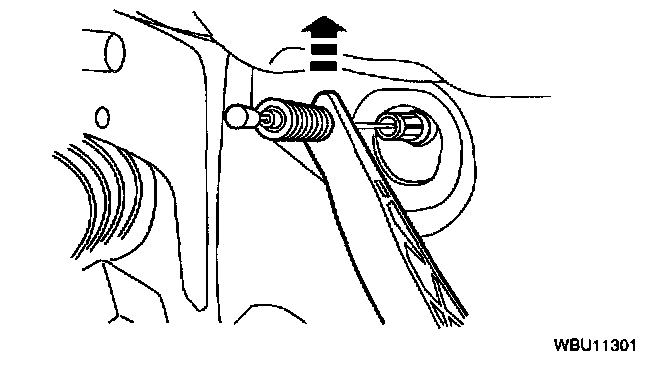

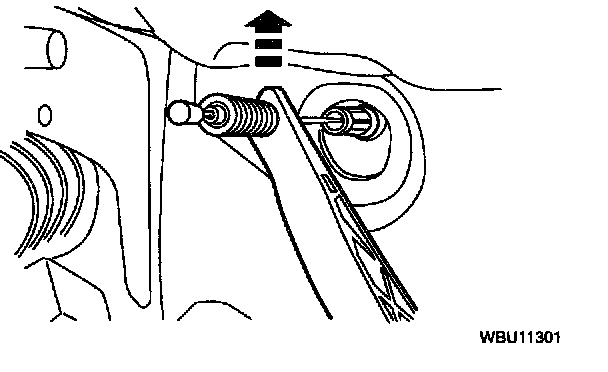

1. Disconnect the accelerator cable from the accelerator pedal and shaft.

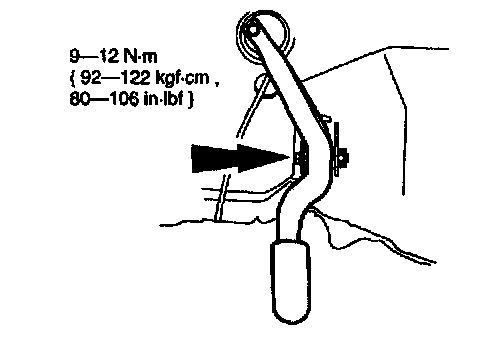

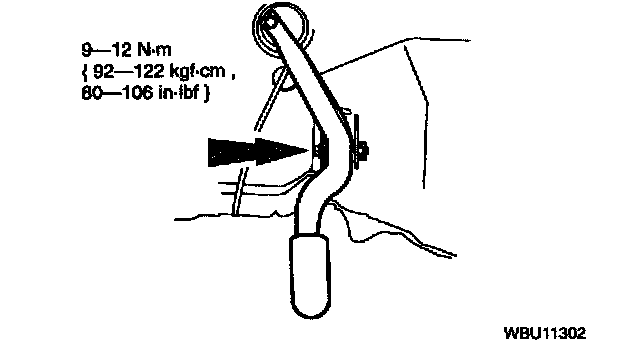

2. Remove the bolt and remove the accelerator pedal and shaft.




3. Install in reverse order of removal.
