7. No Module / Network Communication - ISO 9141 Network

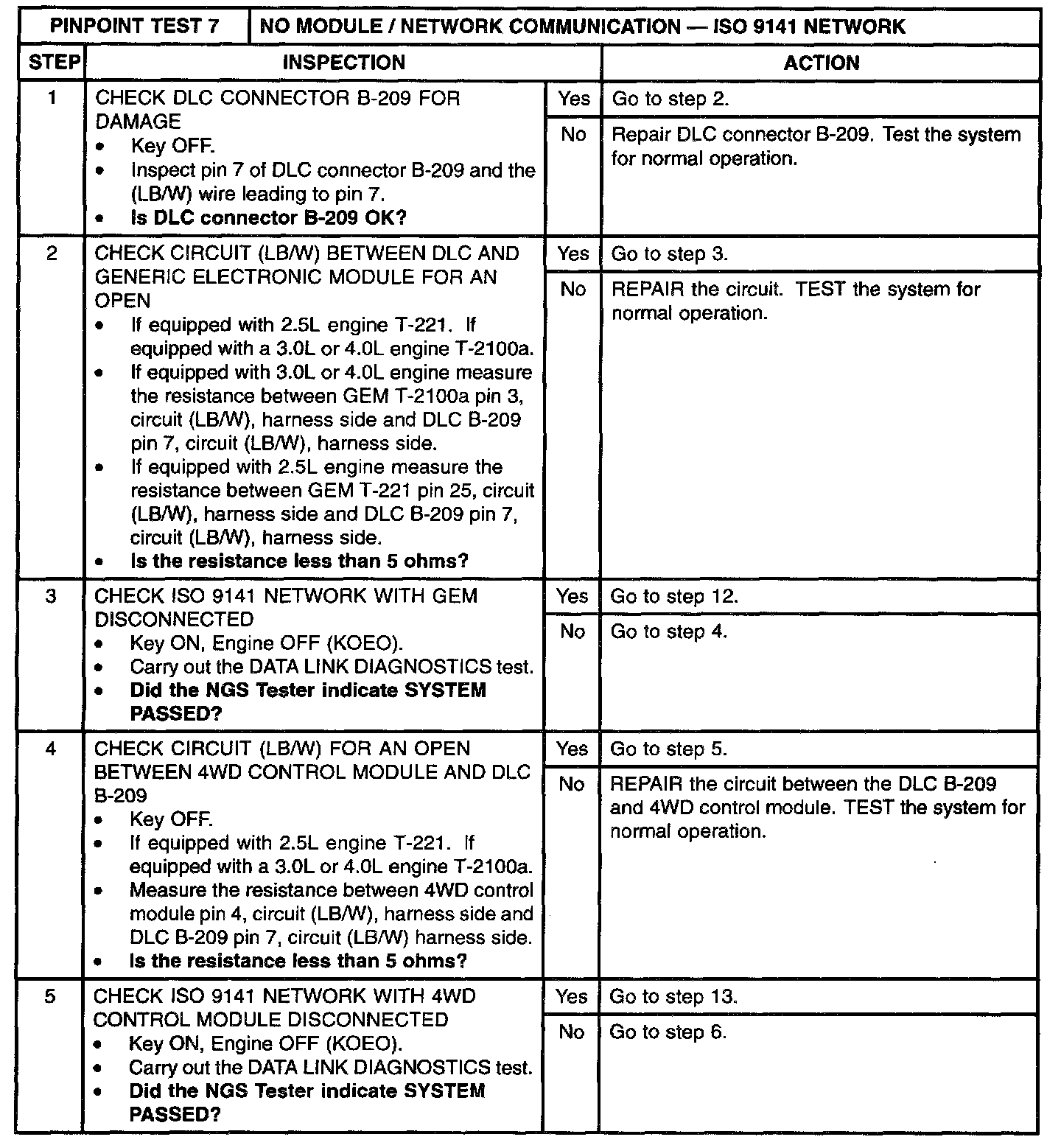

Step 1 - 5:

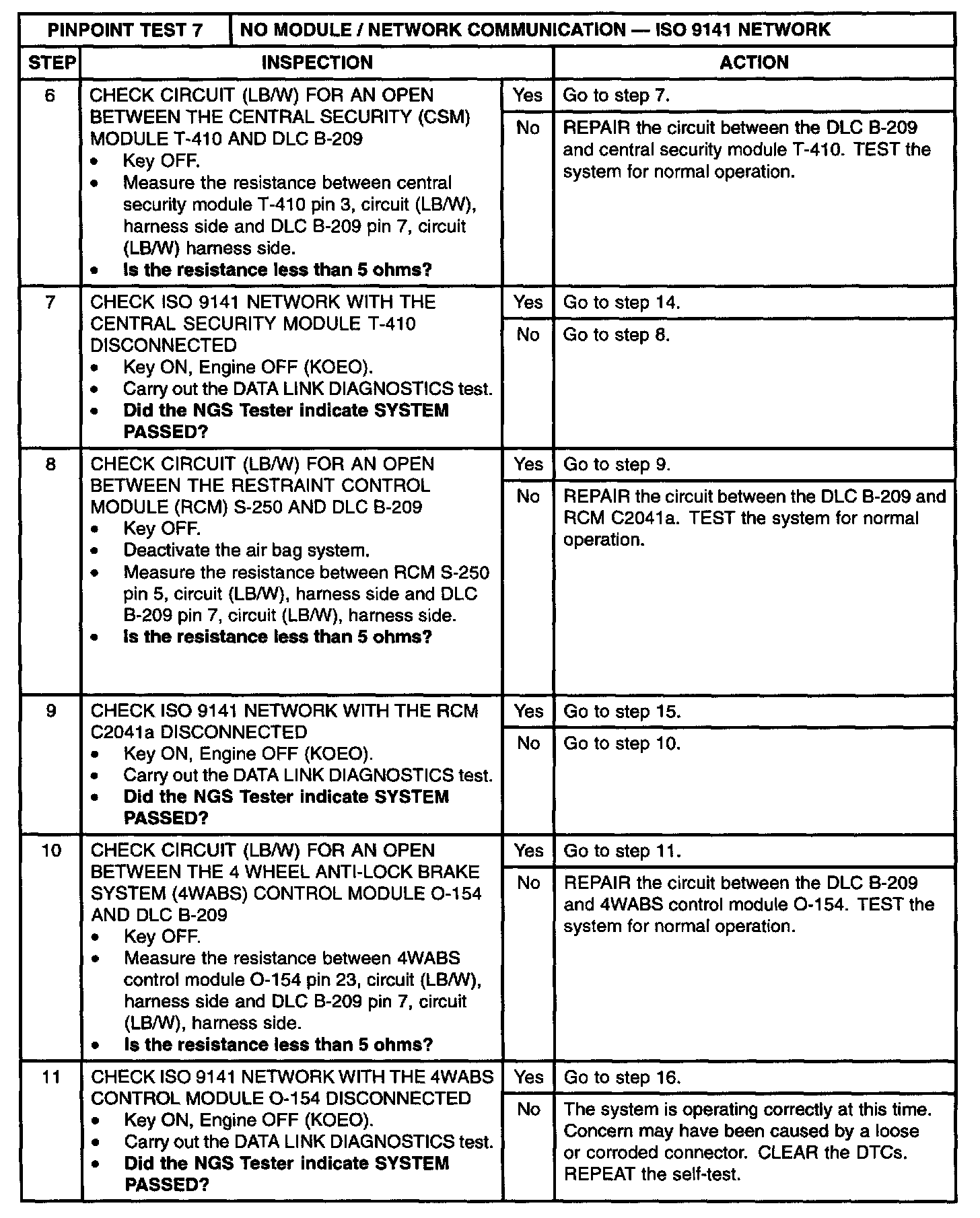

Step 6 - 11:

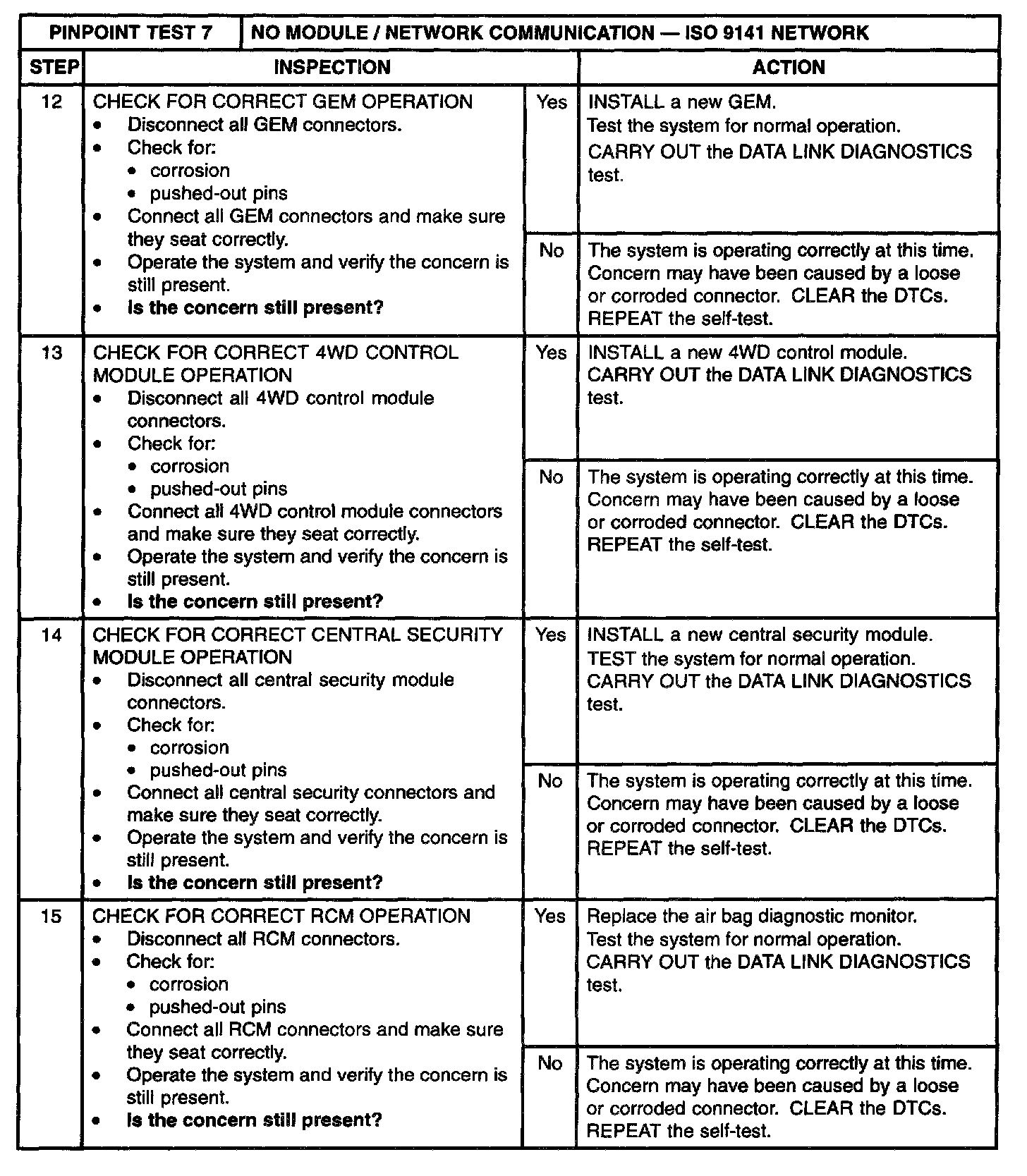

Step 12 - 15:



Step 16:

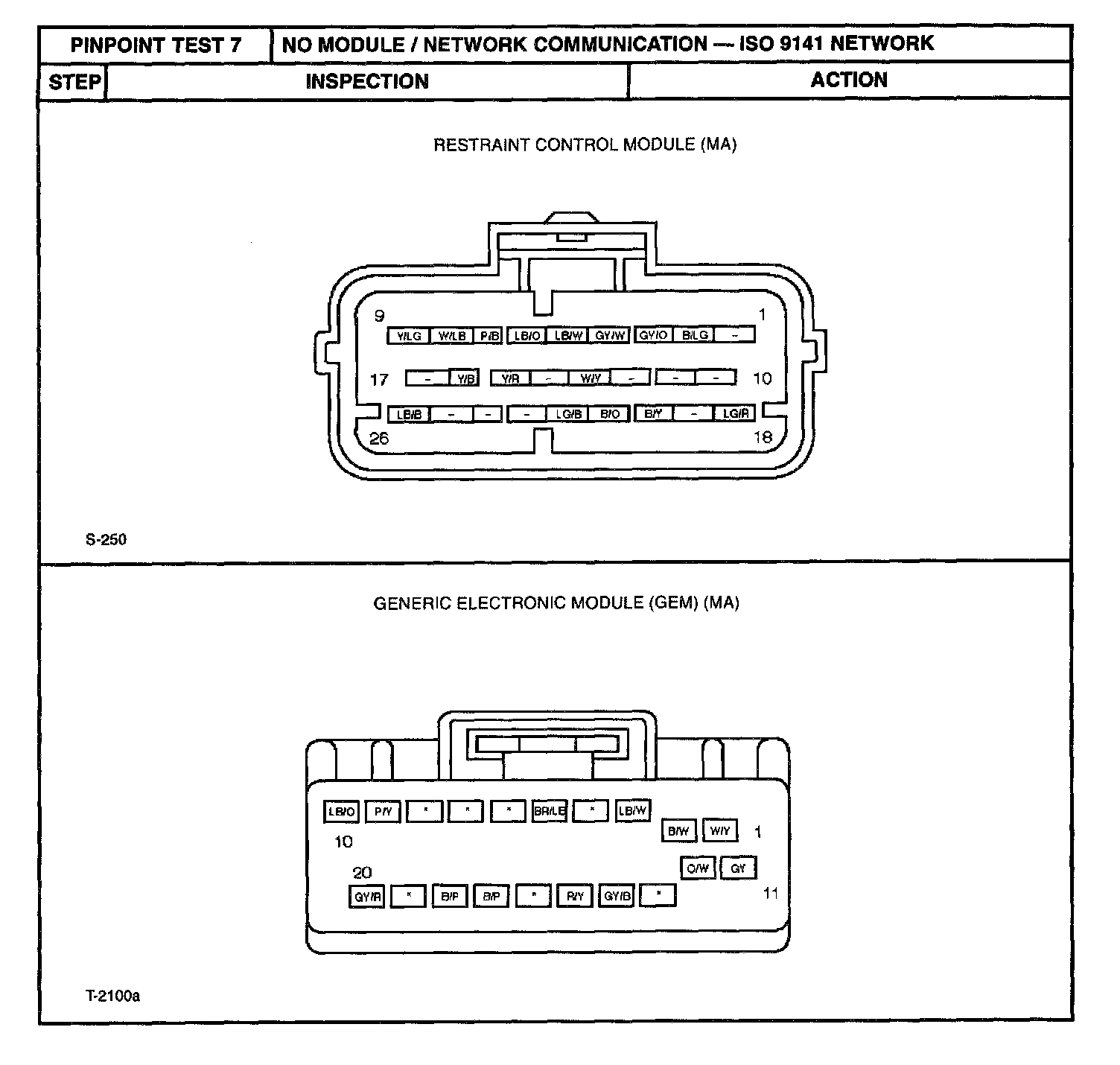

Inspection 1:



Inspection 2:
