Map Light: Service and Repair

1. Disconnect the negative battery cable.

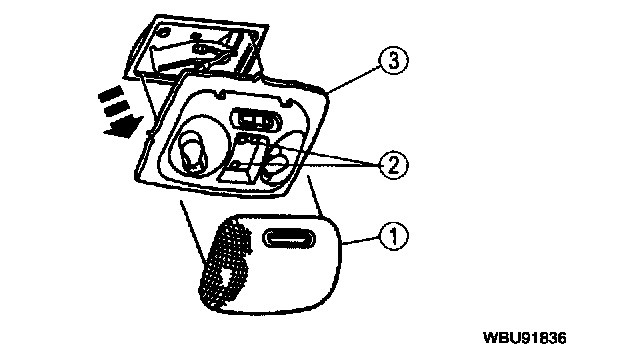

2. Remove in order as indicated below.
1. Lens
2. Bulb(s)
3. Map / dome lamp assembly

3. Install in reverse order of removal.

Tightening torque: 1.6 - 1.8 N.m { 16.3 - 18.4 kgf.cm, 15 - 17 in.lbf }
