Connector Locations

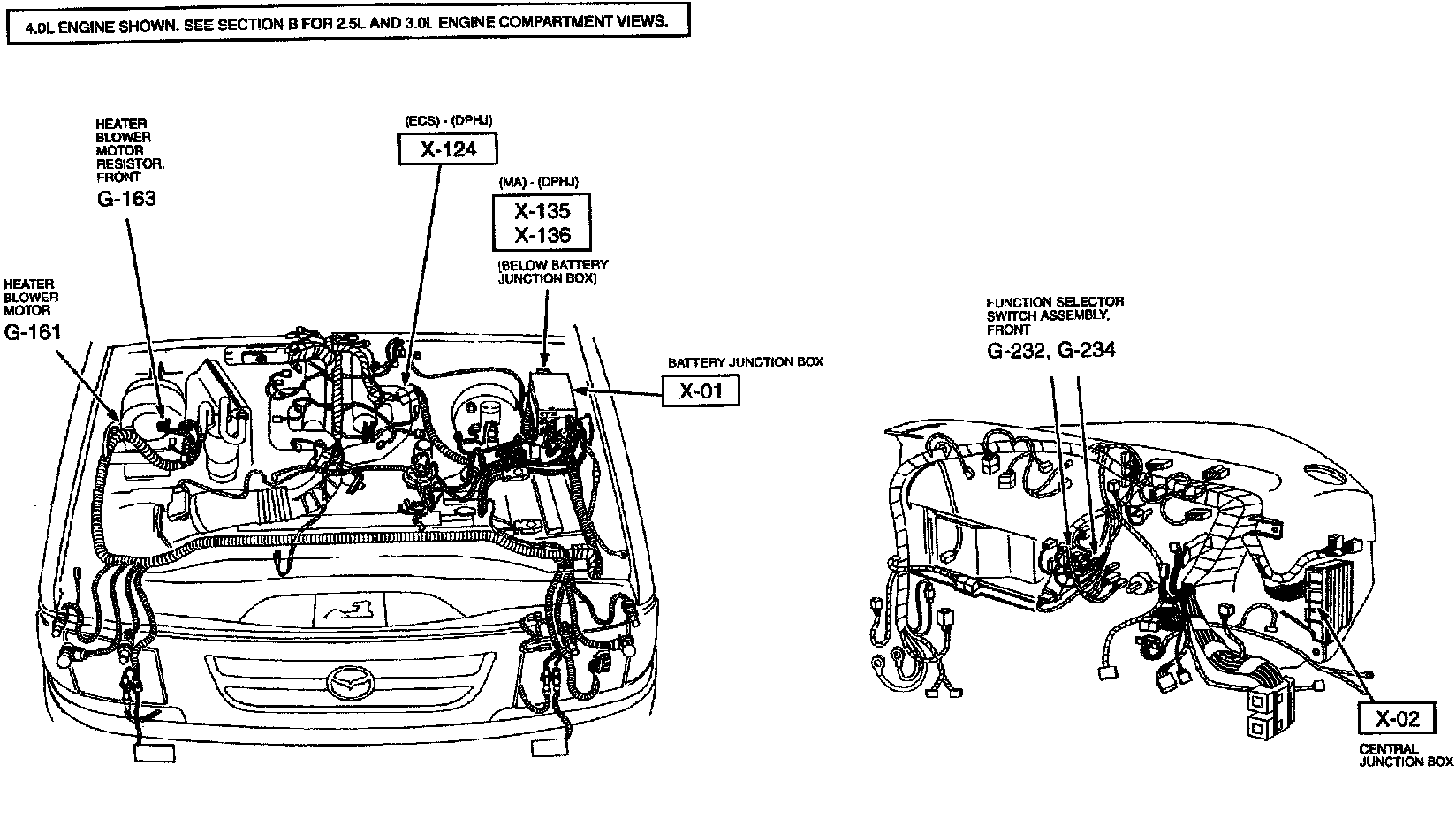

G-a - Heating And Air Conditioning Harness/Connector Symbols:

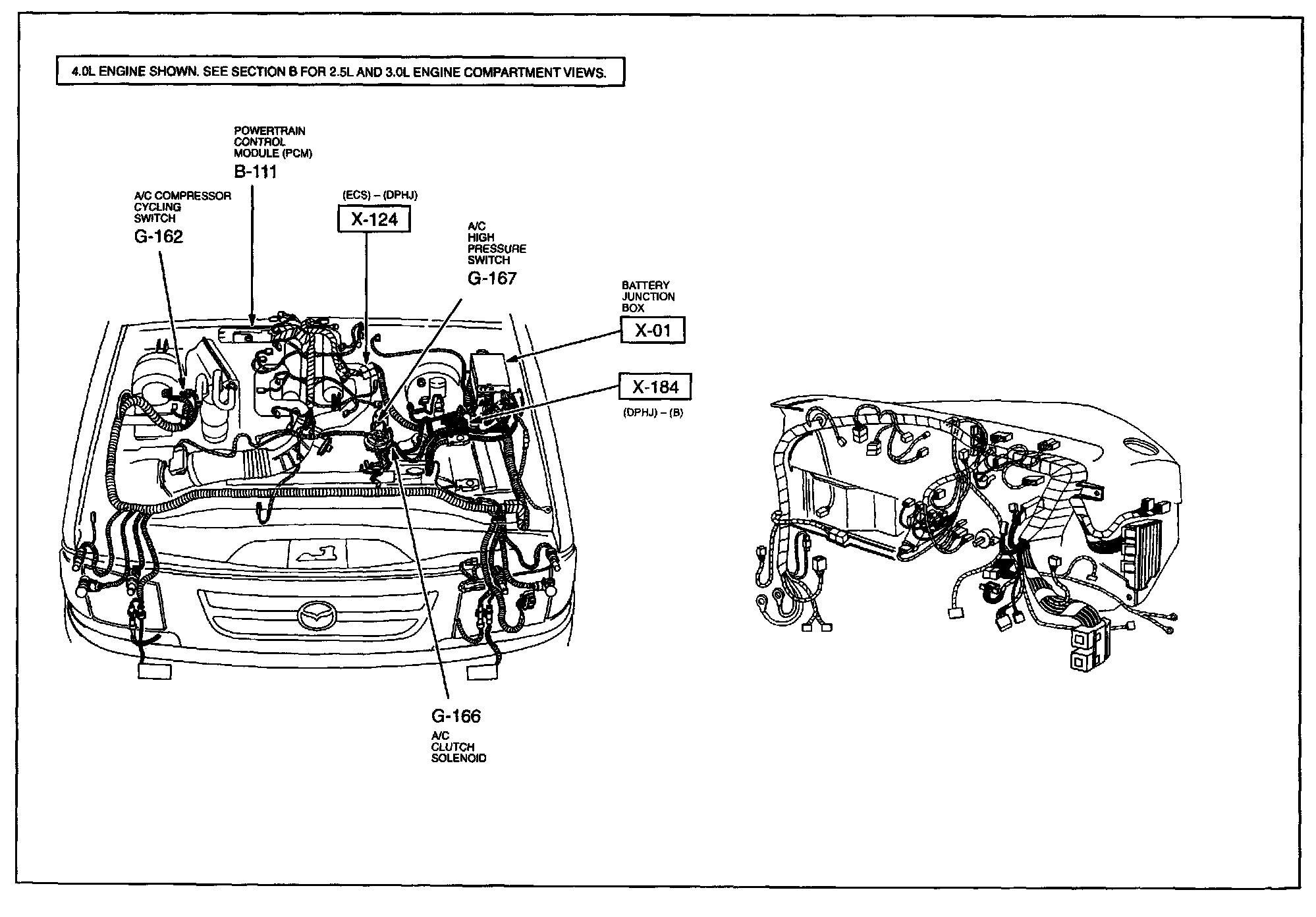

G-b - Heating And Air Conditioning Harness/Connector Symbols:



G-c - Heating And Air Conditioning Harness/Connector Symbols:
