Refrigerant System

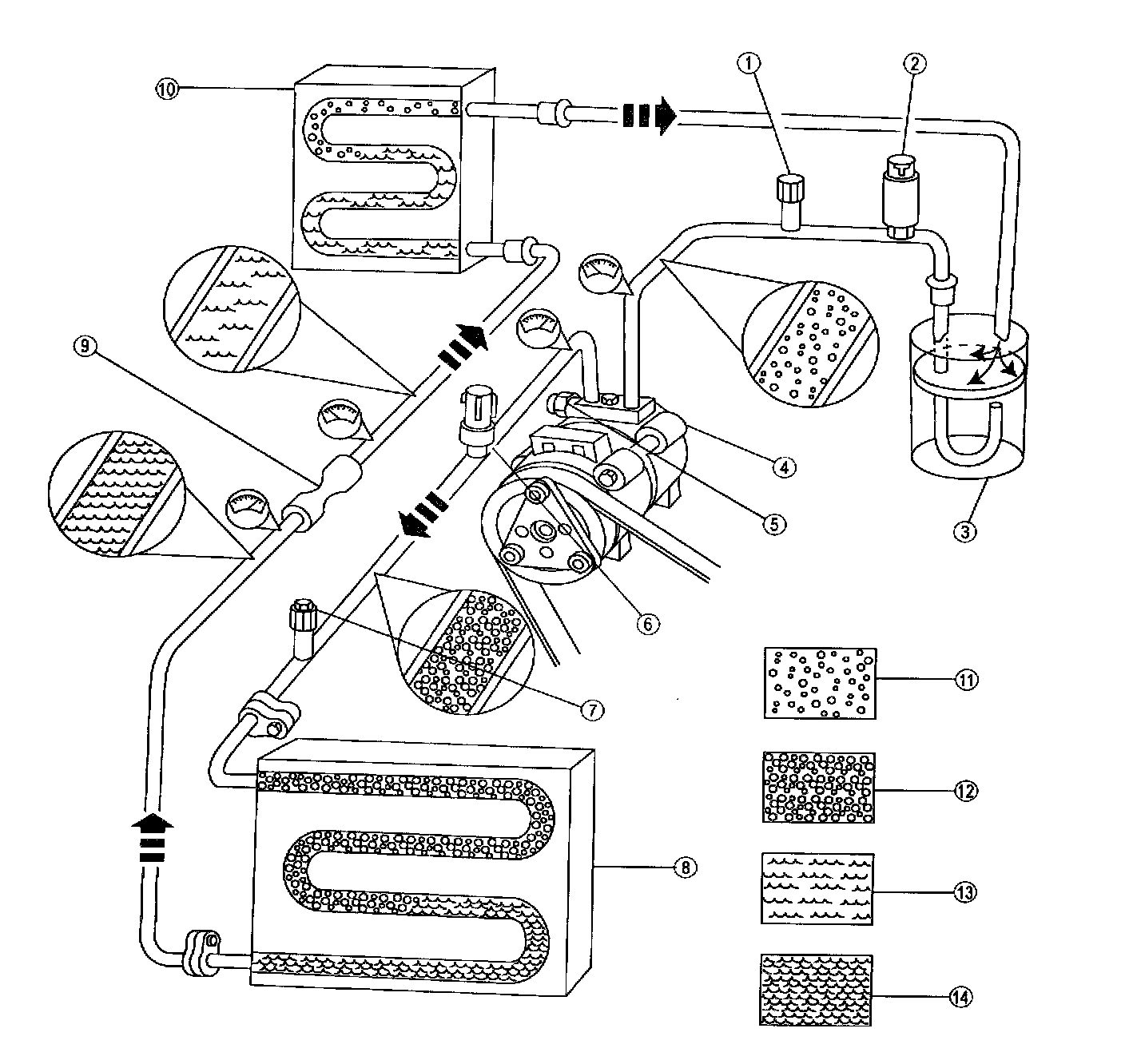

Refrigerant System Structural View:

REFRIGERANT SYSTEM STRUCTURAL VIEW

1. A/C Charge Valve Port (Low Side)
2. A/C Cycling Switch
3. Receiver/drier
4. A/C Compressor
5. A/C Compressor Pressure Relief Valve
6. A/C Pressure Cut-Off Switch
7. A/C Charge Valve Port (High Side)
8. A/C Condenser Core
9. A/C Evaporator Core Orifice
10. A/C Evaporator Core
11. Low Pressure Vapor
12. High Pressure Vapor
13. Low Pressure Liquid
14. High Pressure Liquid
