Mazda Truck
>>
2001
>>
B3000 DS Cab Plus 2WD V6-3.0L OHV
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Suspension
>>
Front Suspension
Front Suspension

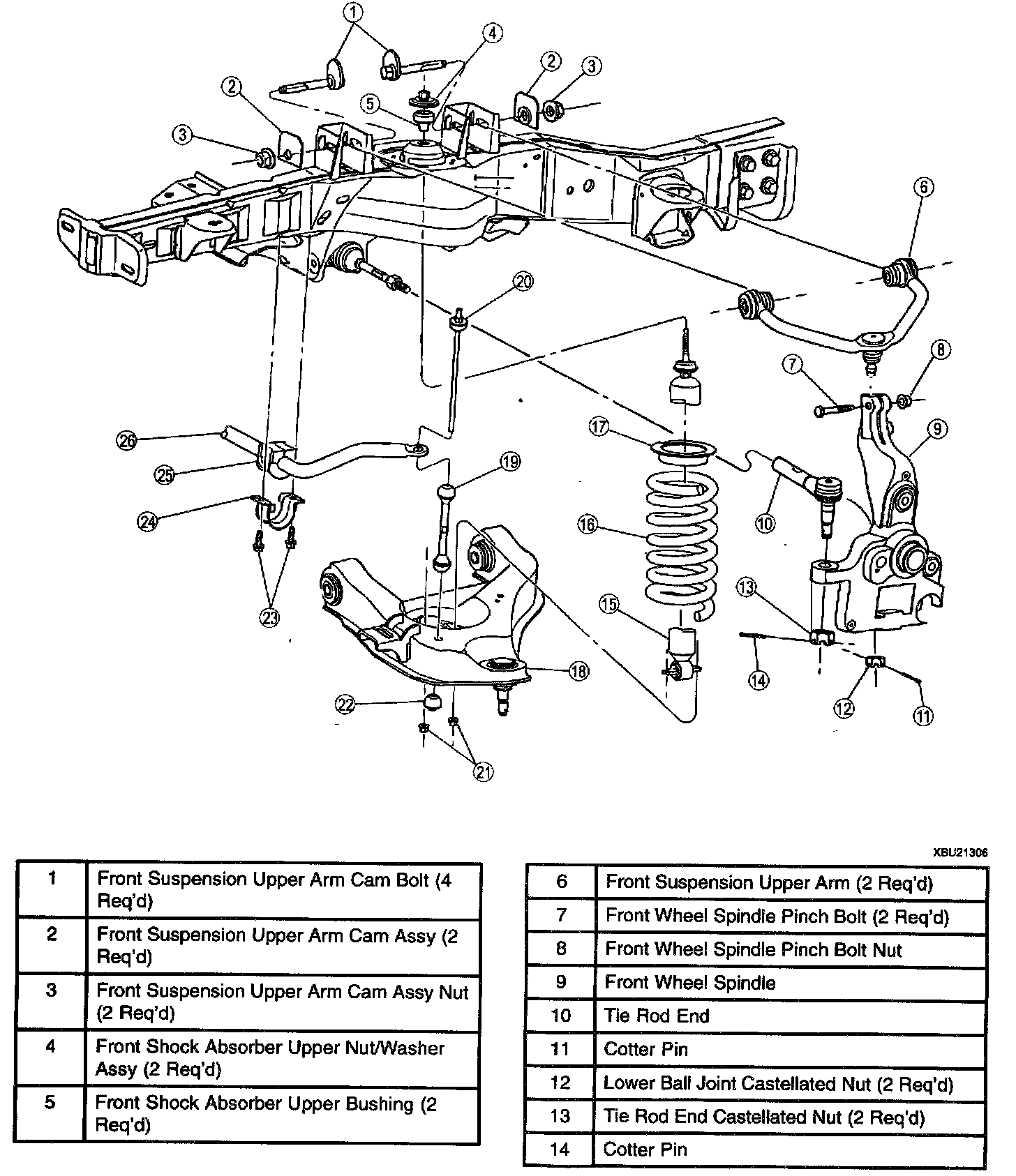

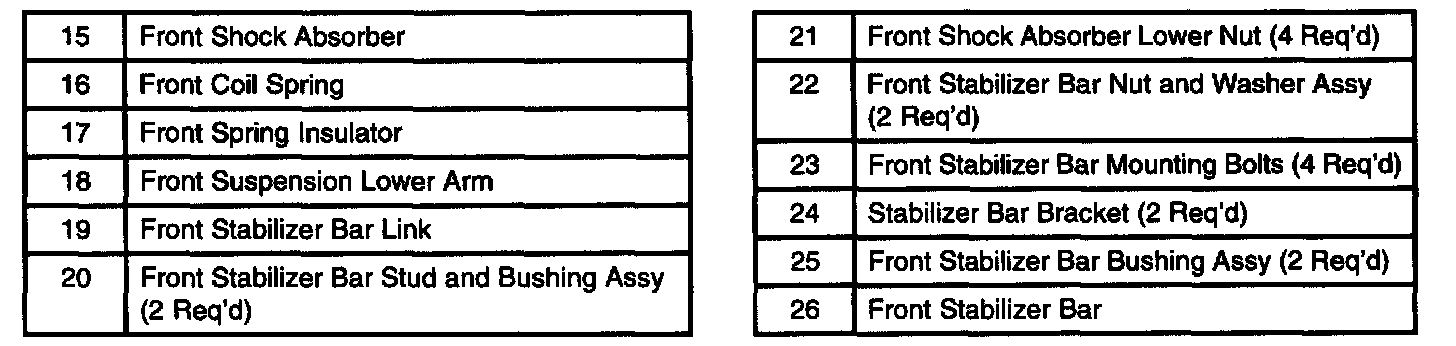

FRONT
SUSPENSION
COMPONENTS
Part 1 Of 2:
Part 2 Of 2:
Front
Suspension
Components - 4x2

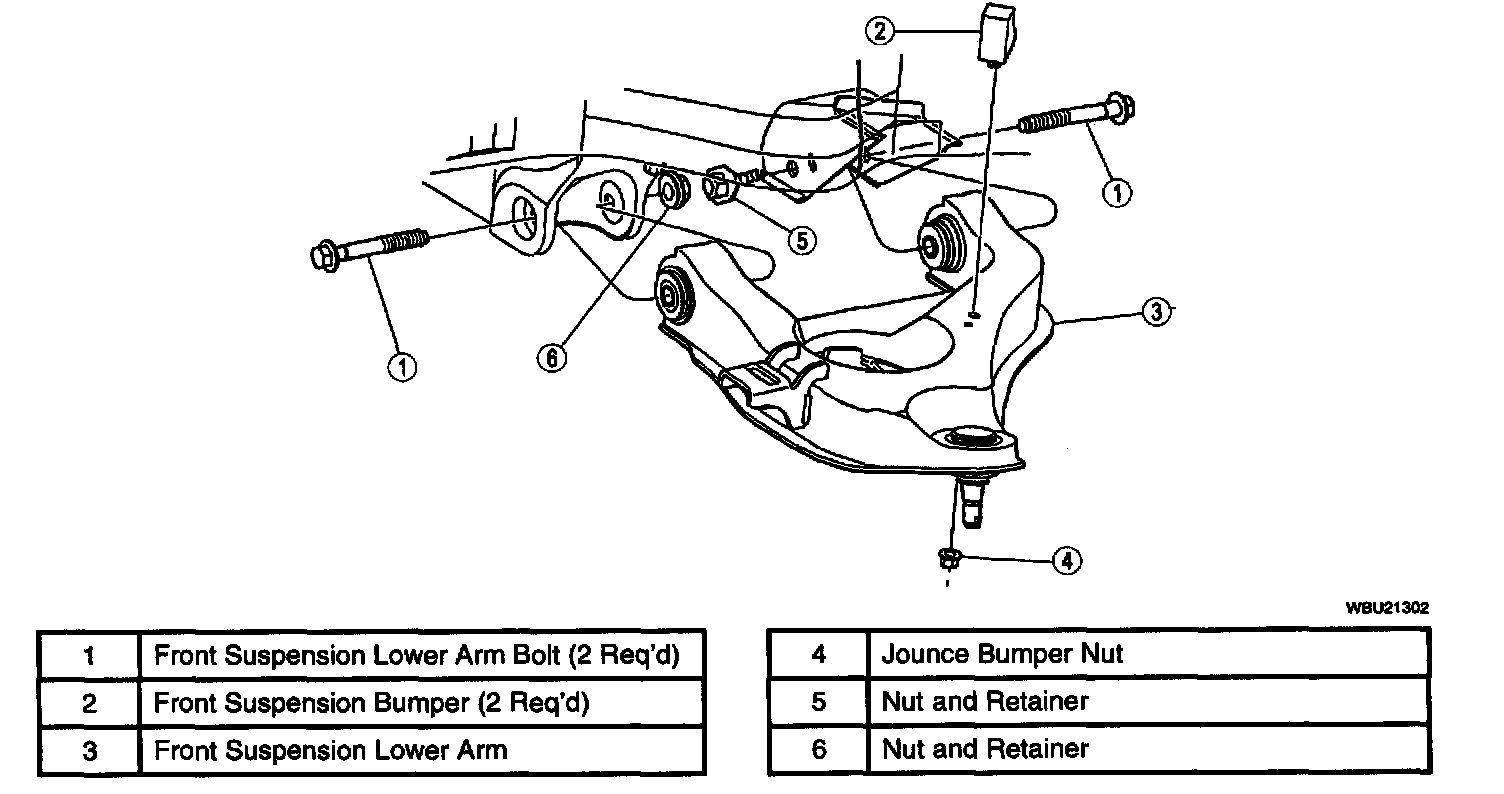

Lower Arm Components - 4x2
