Trim Panel: Service and Repair

1. Remove the scuff plate.
2. Remove A-pillar assist handles, if equipped.
3. Remove the A-pillar trim.

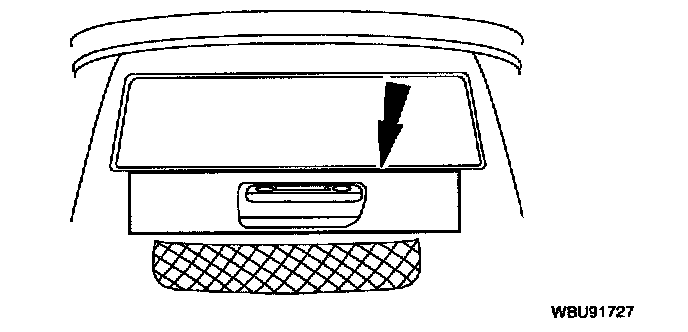

4. Remove the rear window garnish molding.

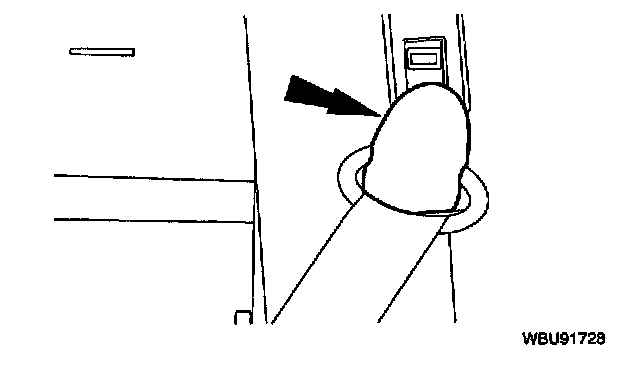

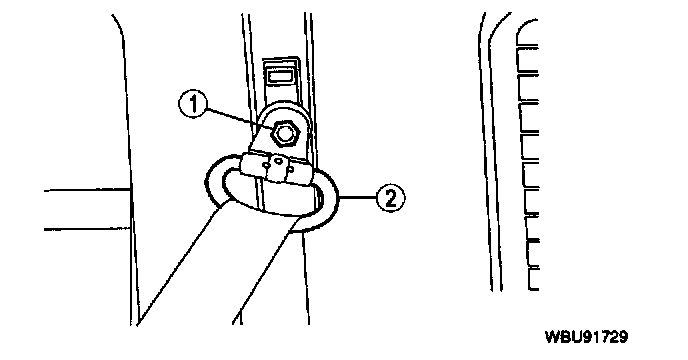

5. Remove the D-ring cover, D-ring nut (1) and disconnect D-ring (2).

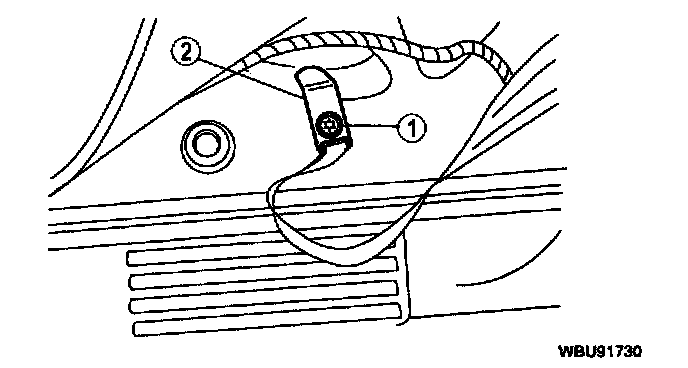

6. Remove the seat belt anchor (2).
7. Remove the B-pillar trim to floor screw.
8. Open the center-facing rear seat, if equipped.
9. Open the B-pillar trim storage compartment, if equipped.

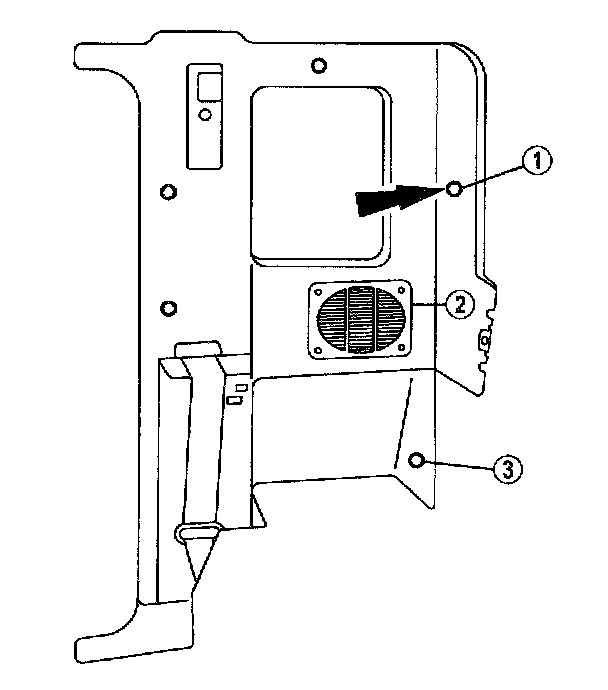

10. Remove in order shown in figure.
1. Pushpin
2. Rear speaker electrical connector
3. B-pillar trim

NOTE: To remove, feed the seat belt webbing through the B-pillar trim.

11. Install in reverse order of removal.
