Home
>>
Mazda Truck
>>
2001
>>
B3000 DS Cab Plus 2WD V6-3.0L OHV
>>
Repair and Diagnosis
>>
Accessories and Optional Equipment
>>
General Module
>>
Locations
>>
Connector Locations
Connector Locations

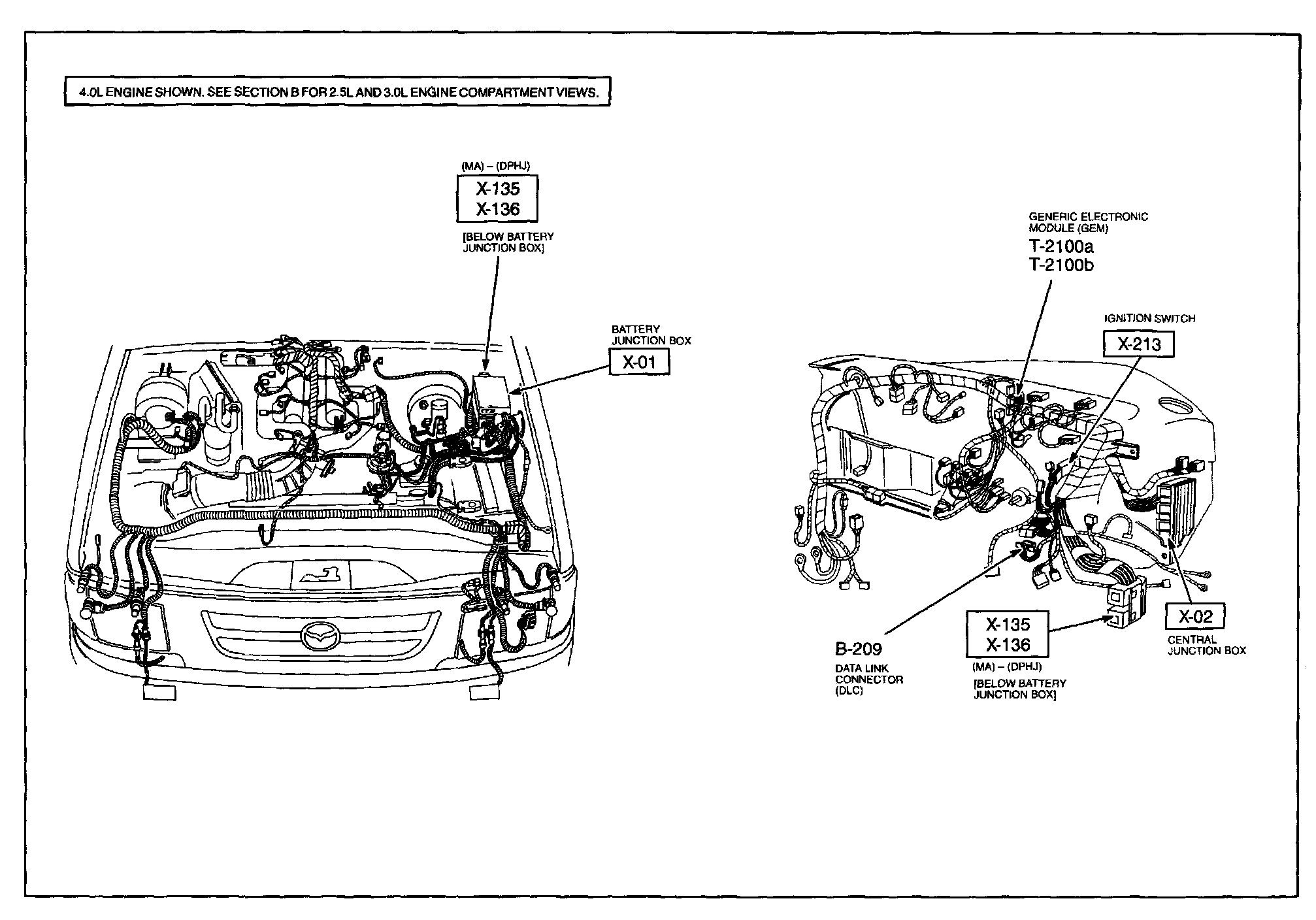

T-2a - Generic Electronic Module (GEM) System Harness/Connector Symbols:

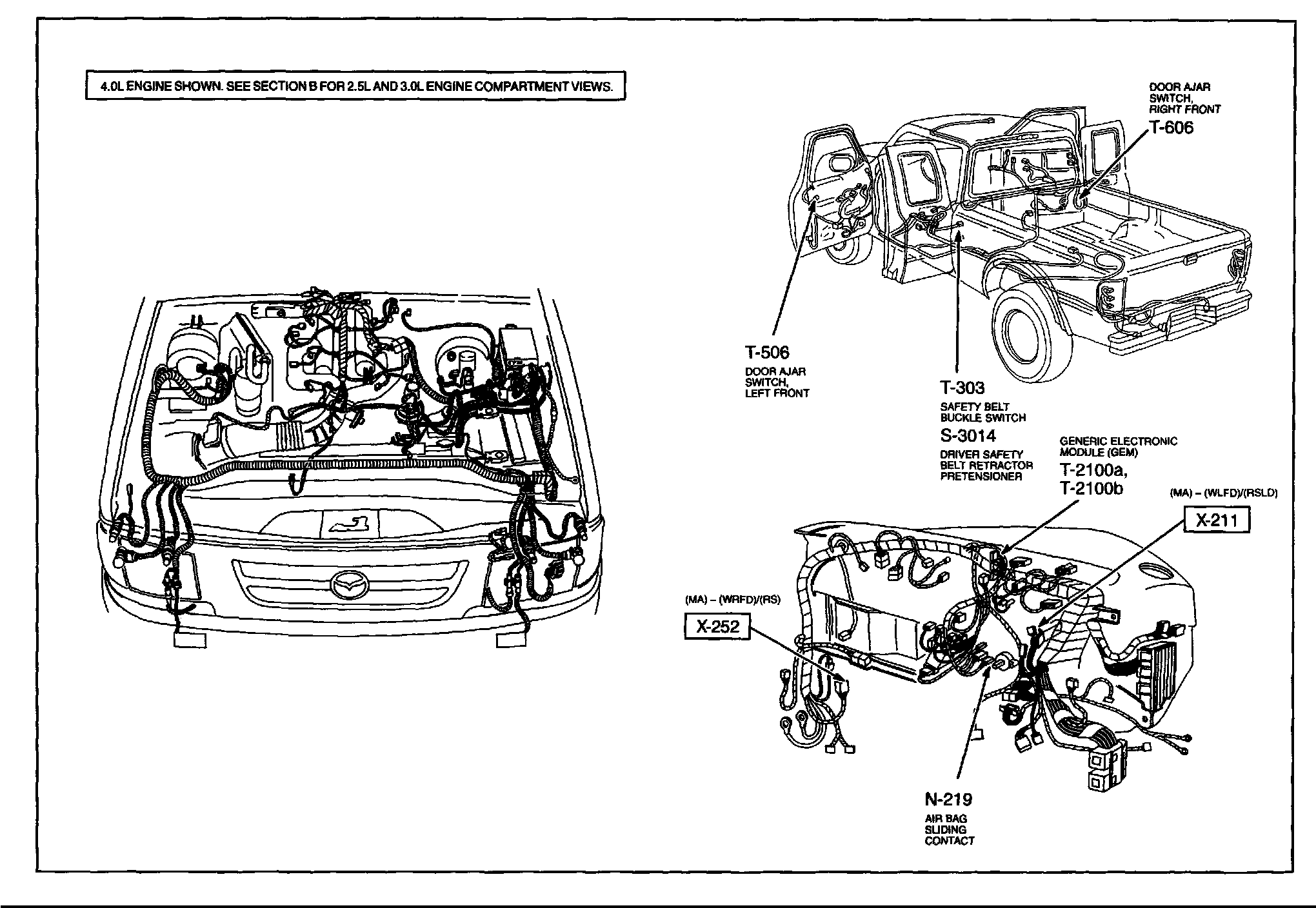

T-2b - Generic Electronic Module (GEM) System Harness/Connector Symbols:
