Transmissions Control Systems

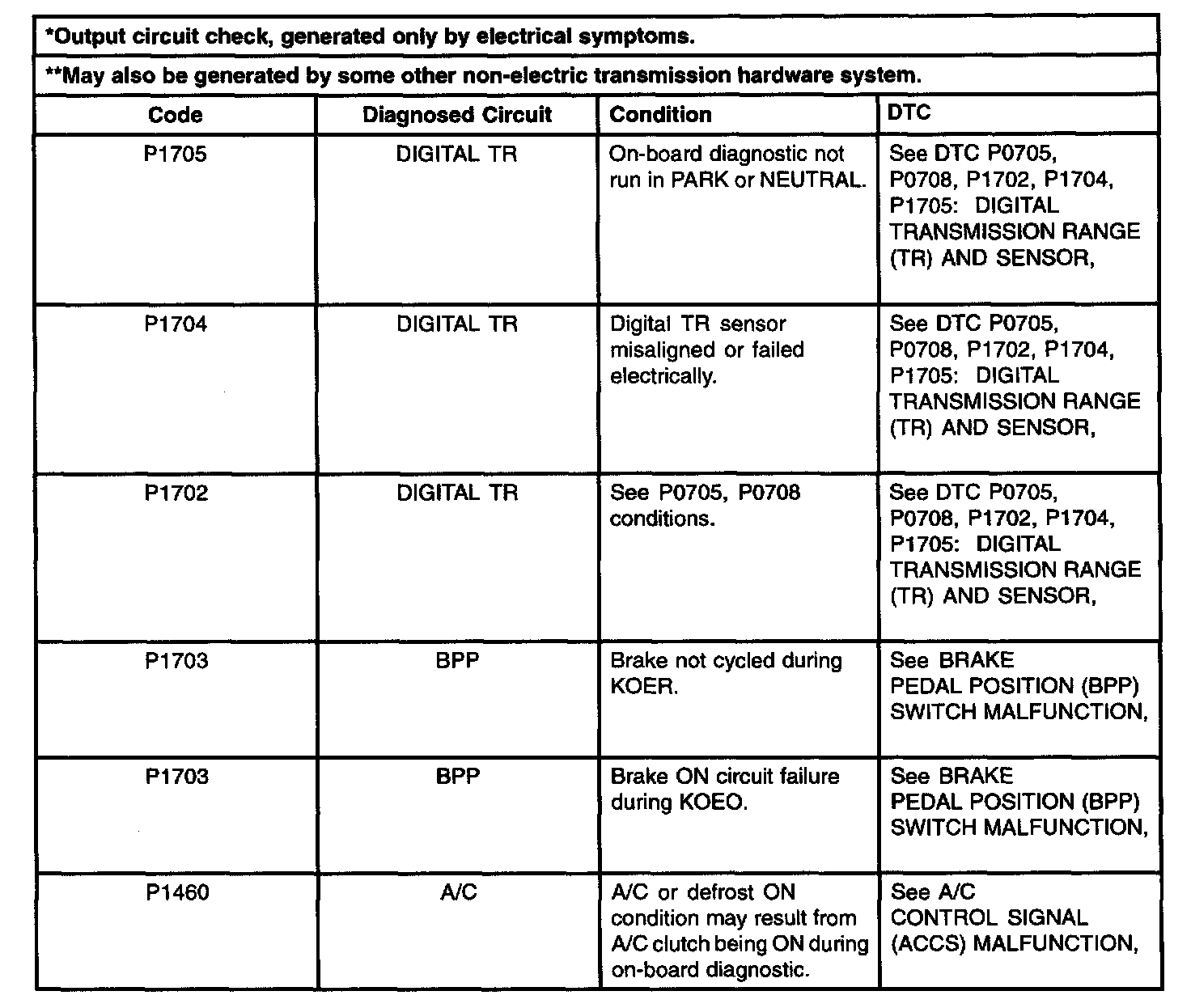

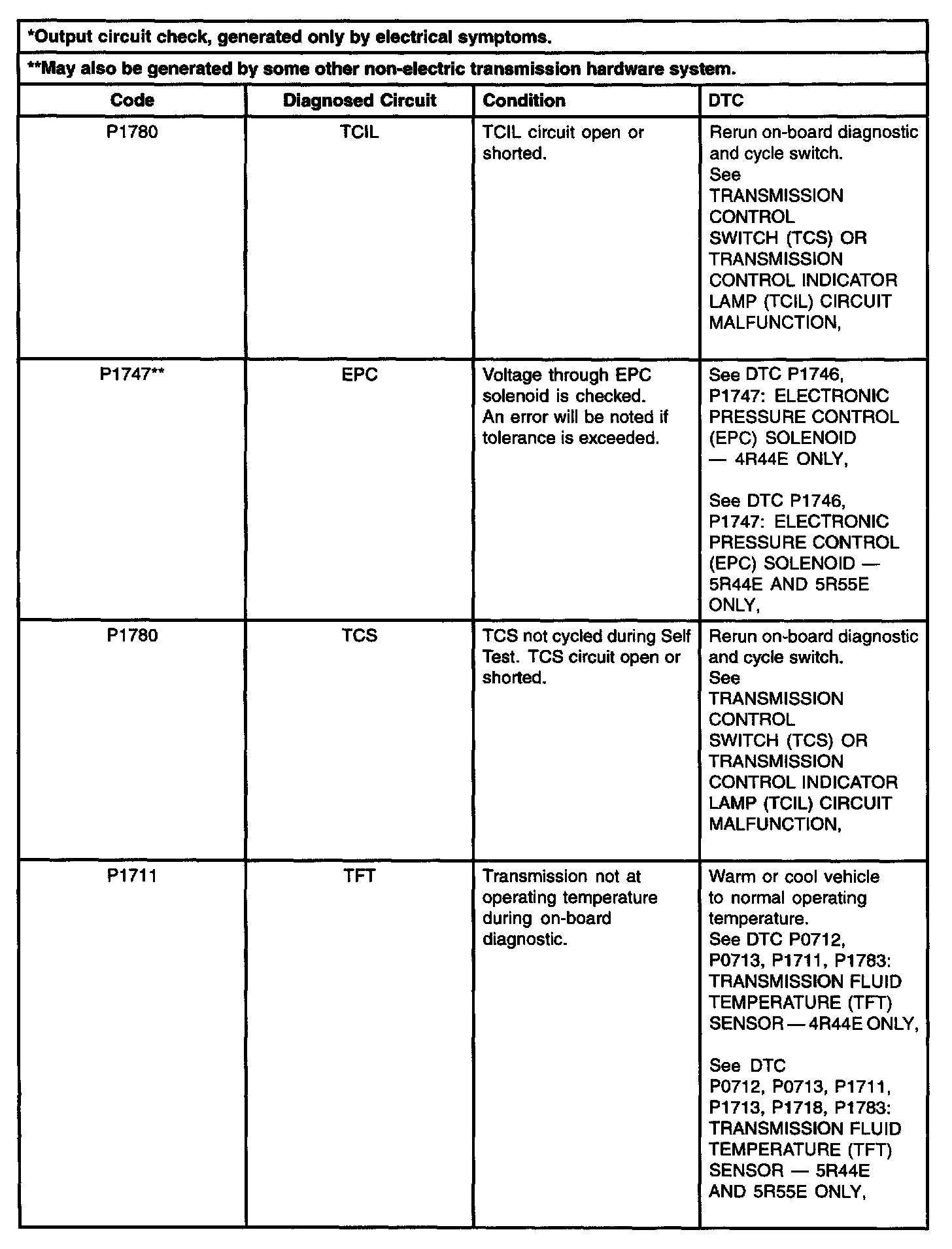

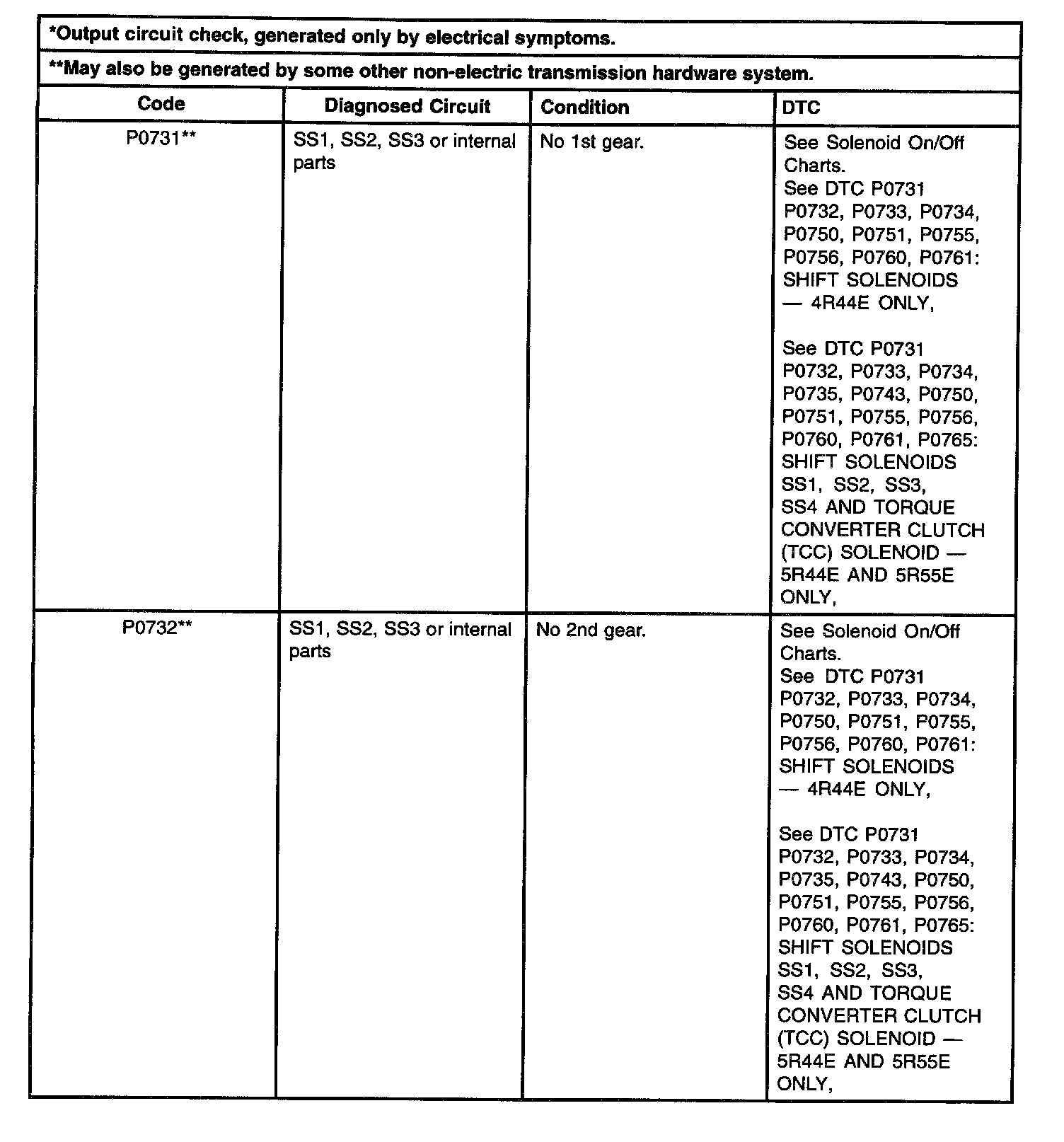

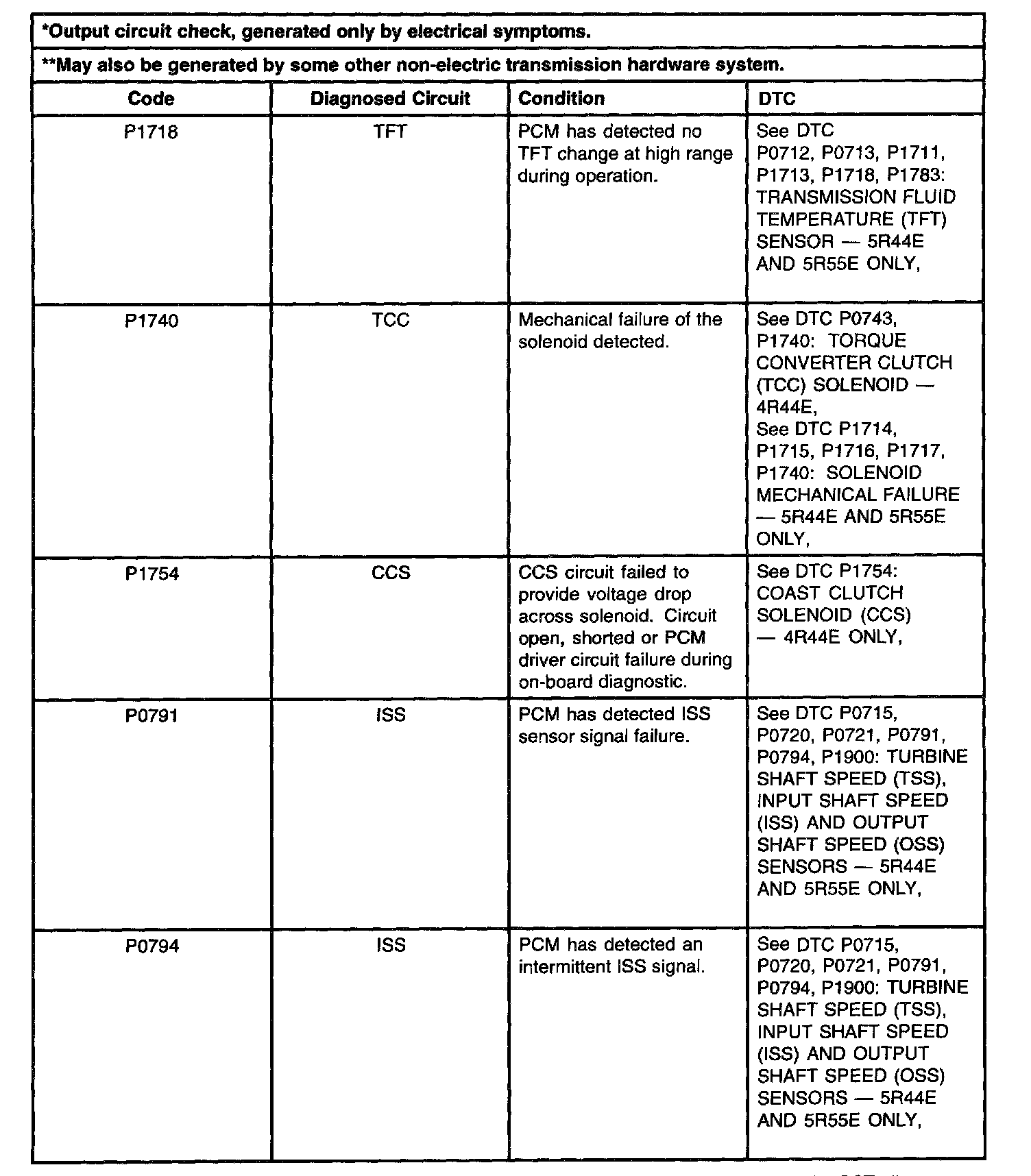

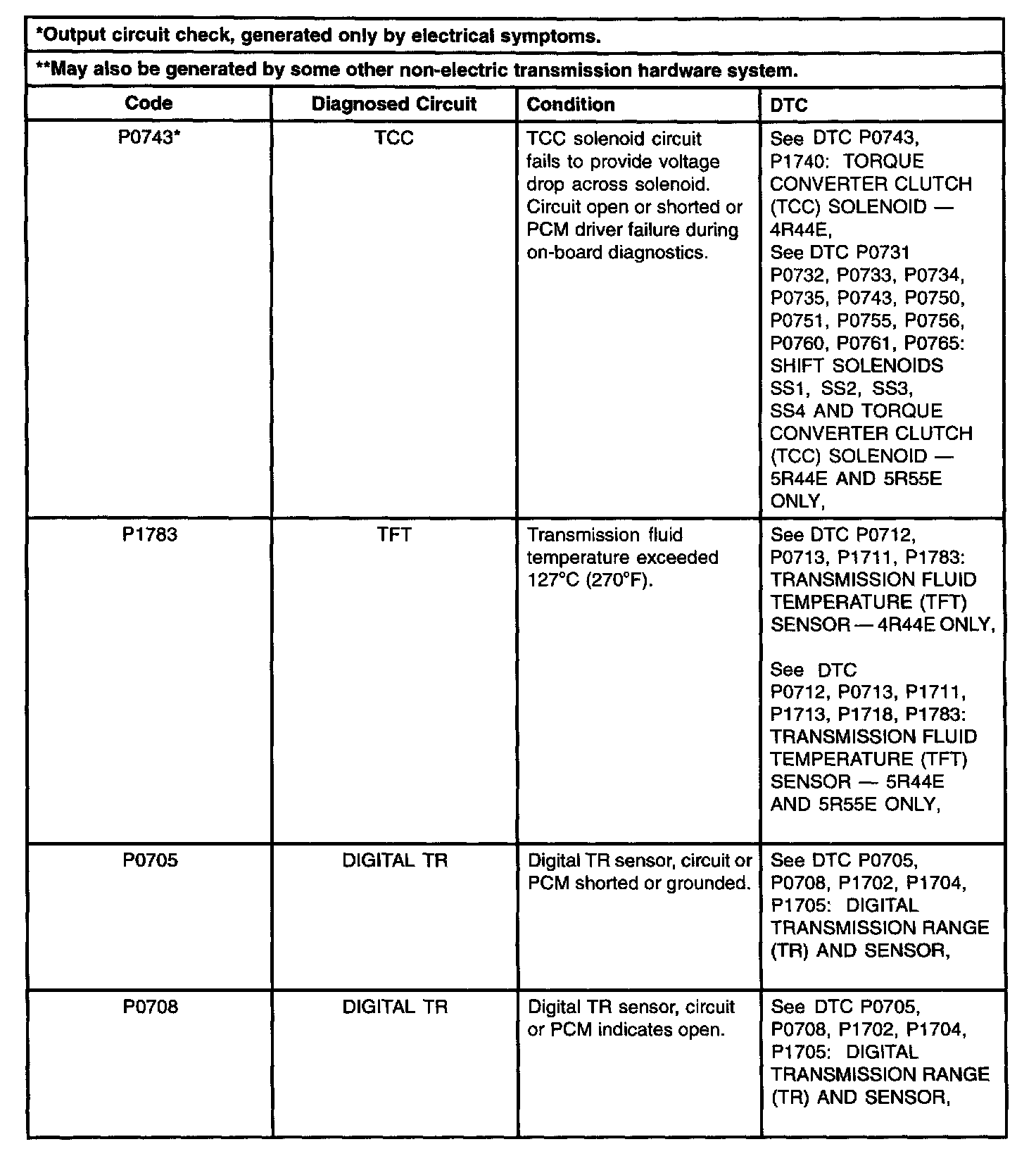

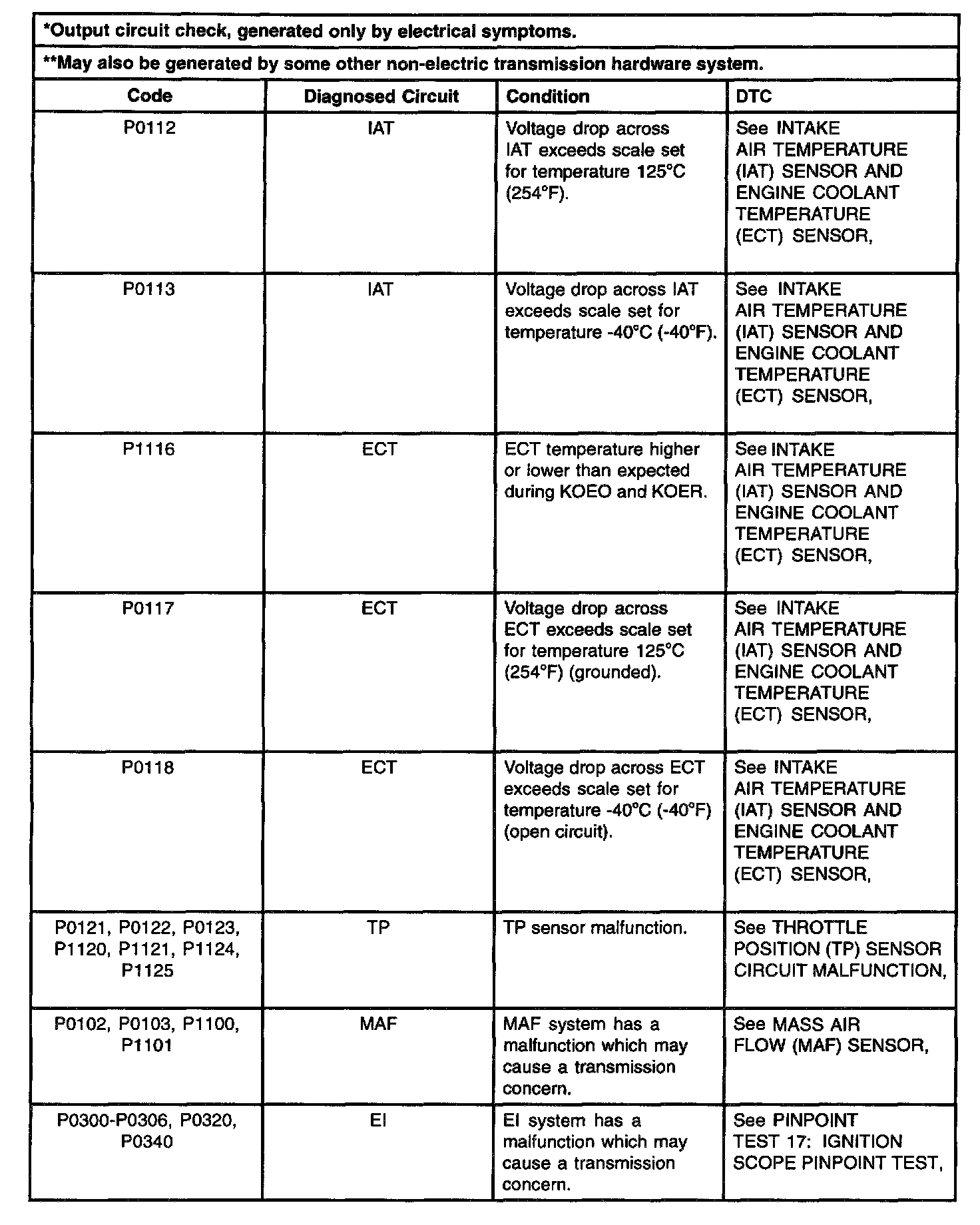

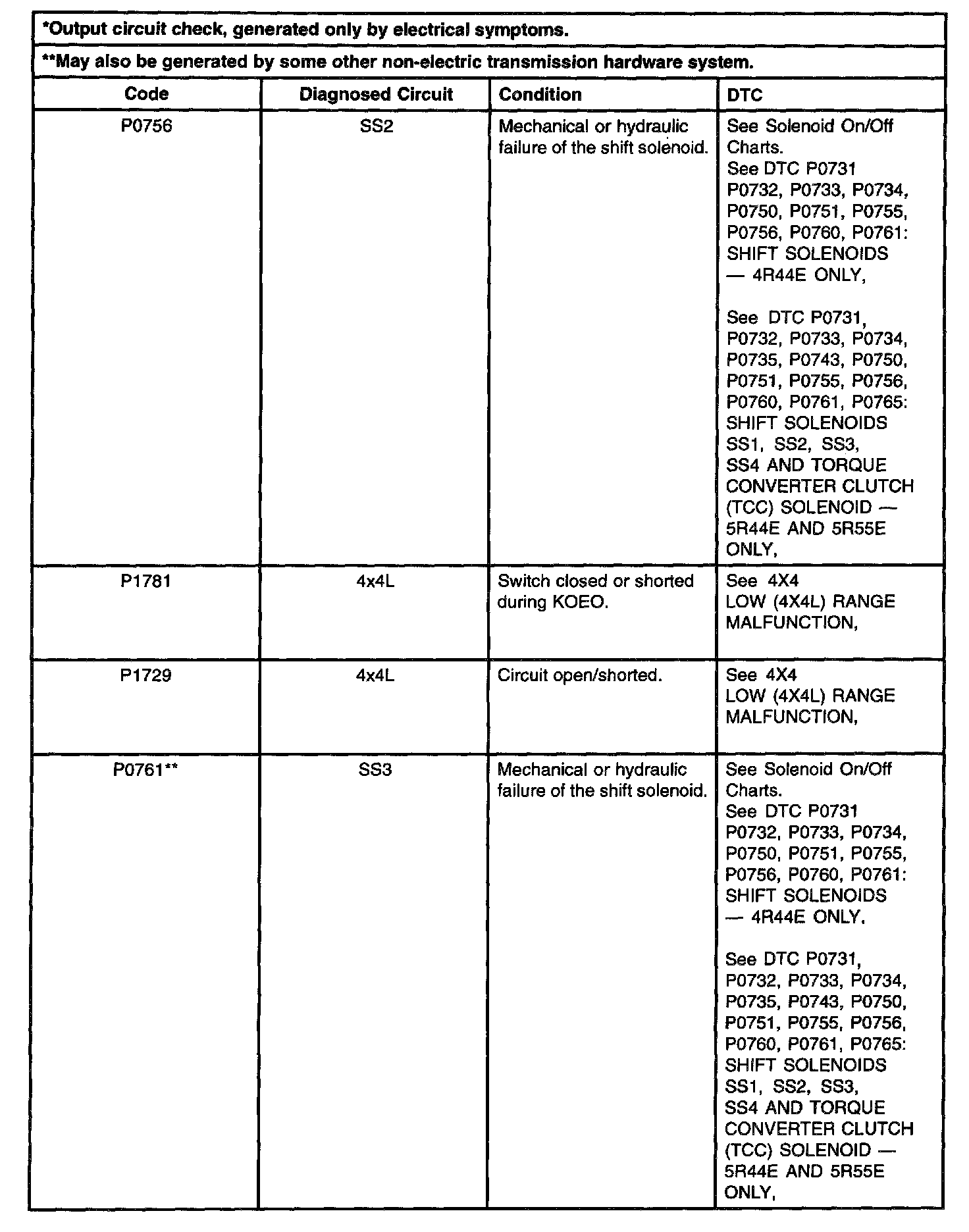

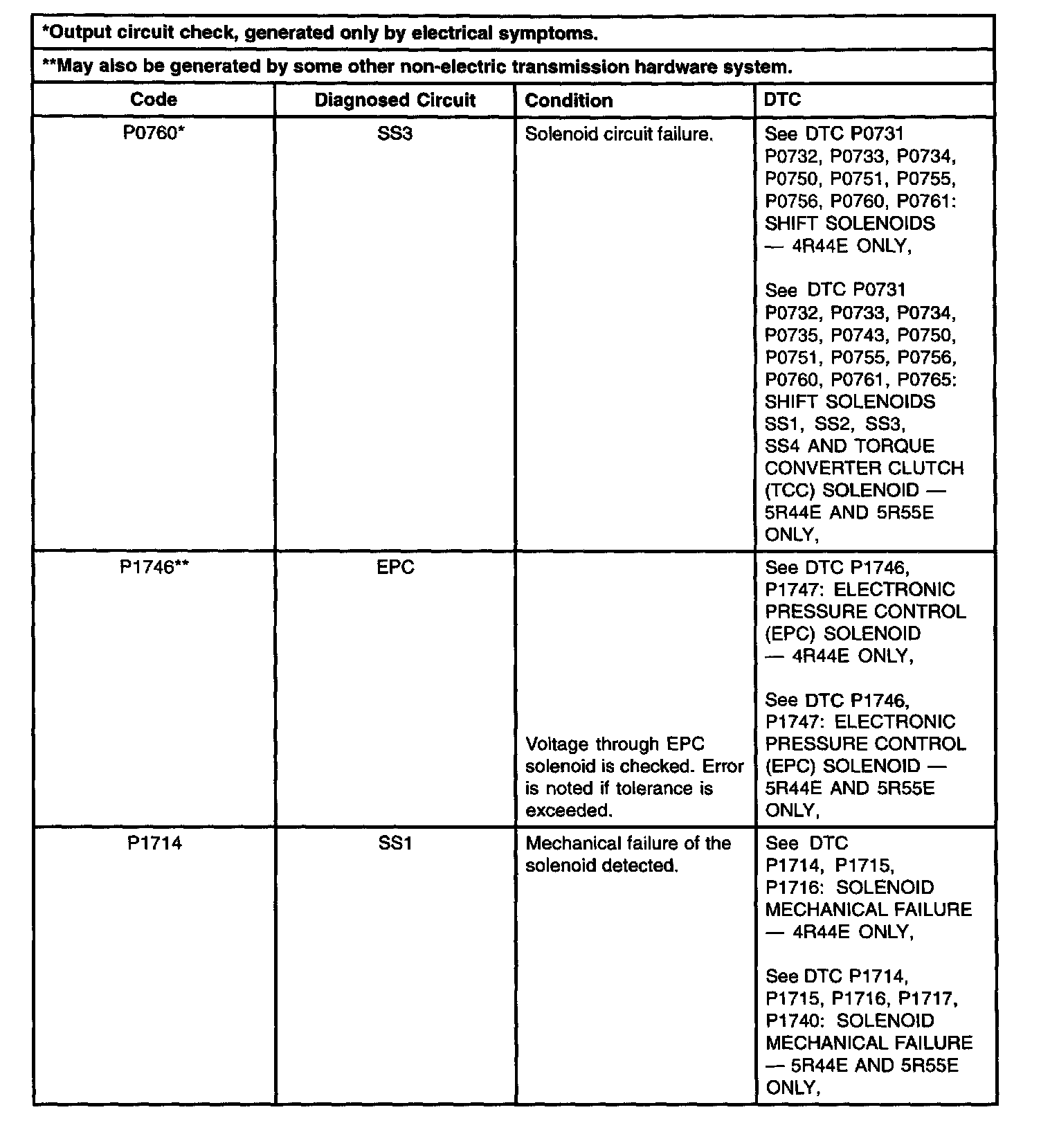

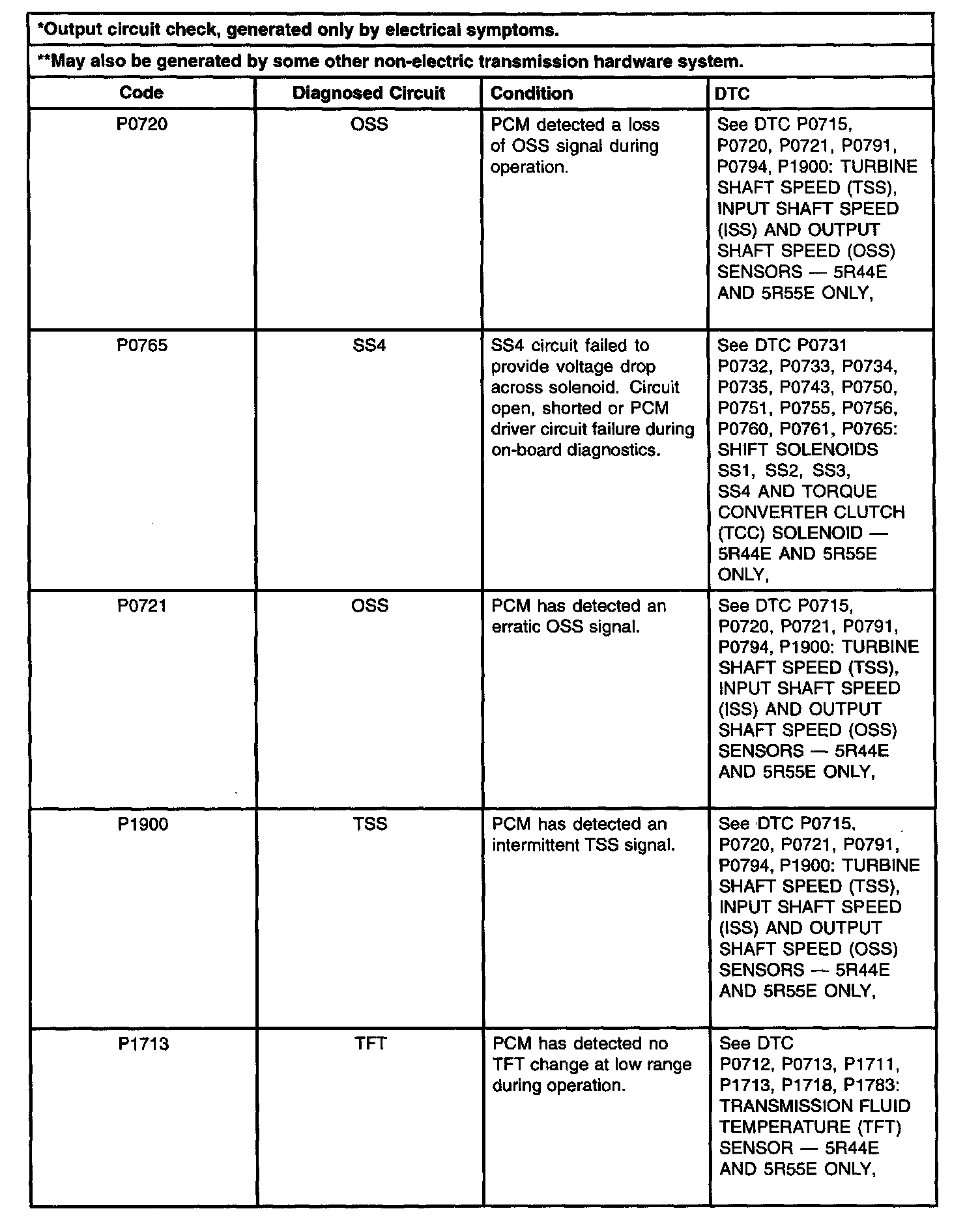

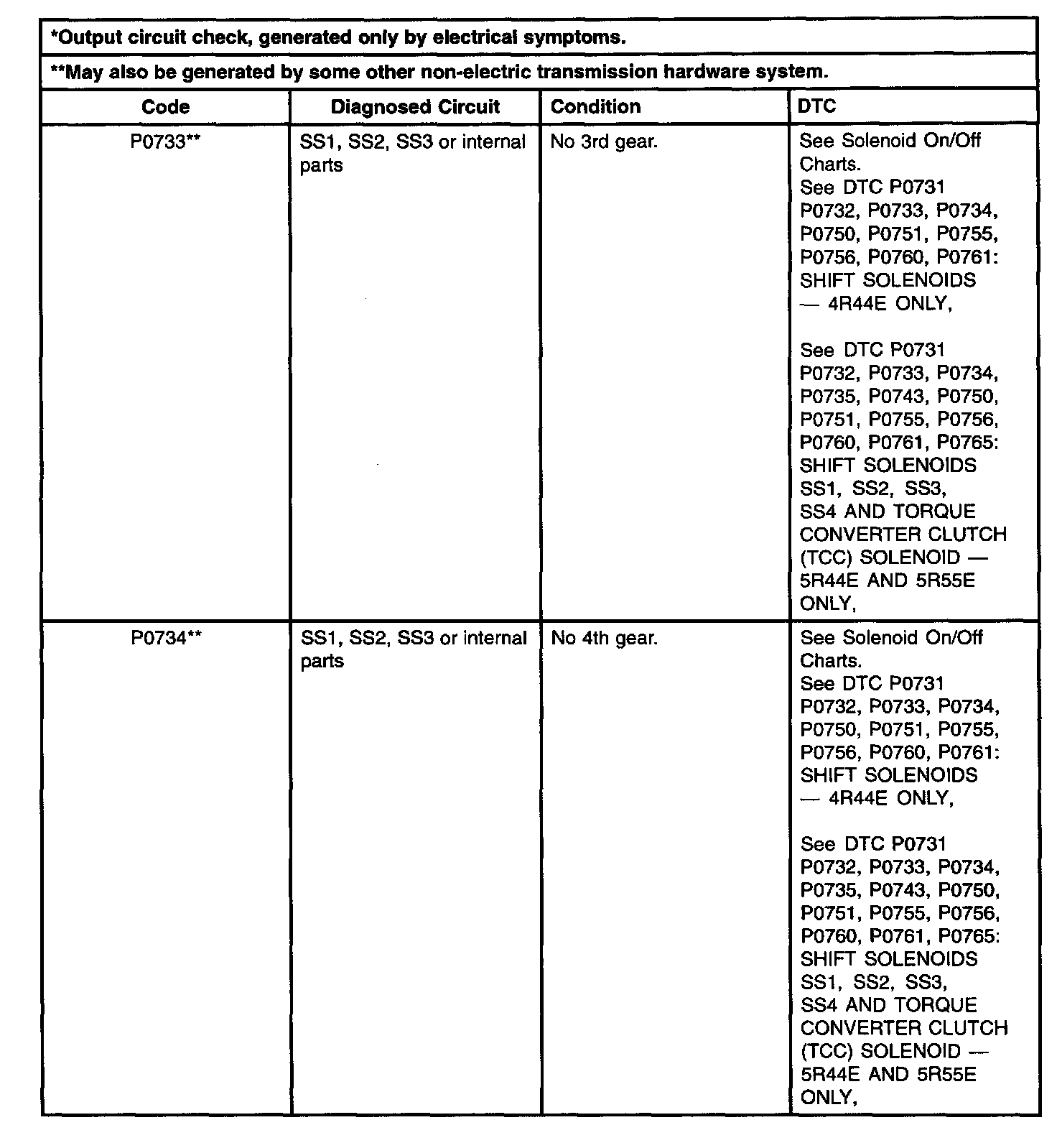

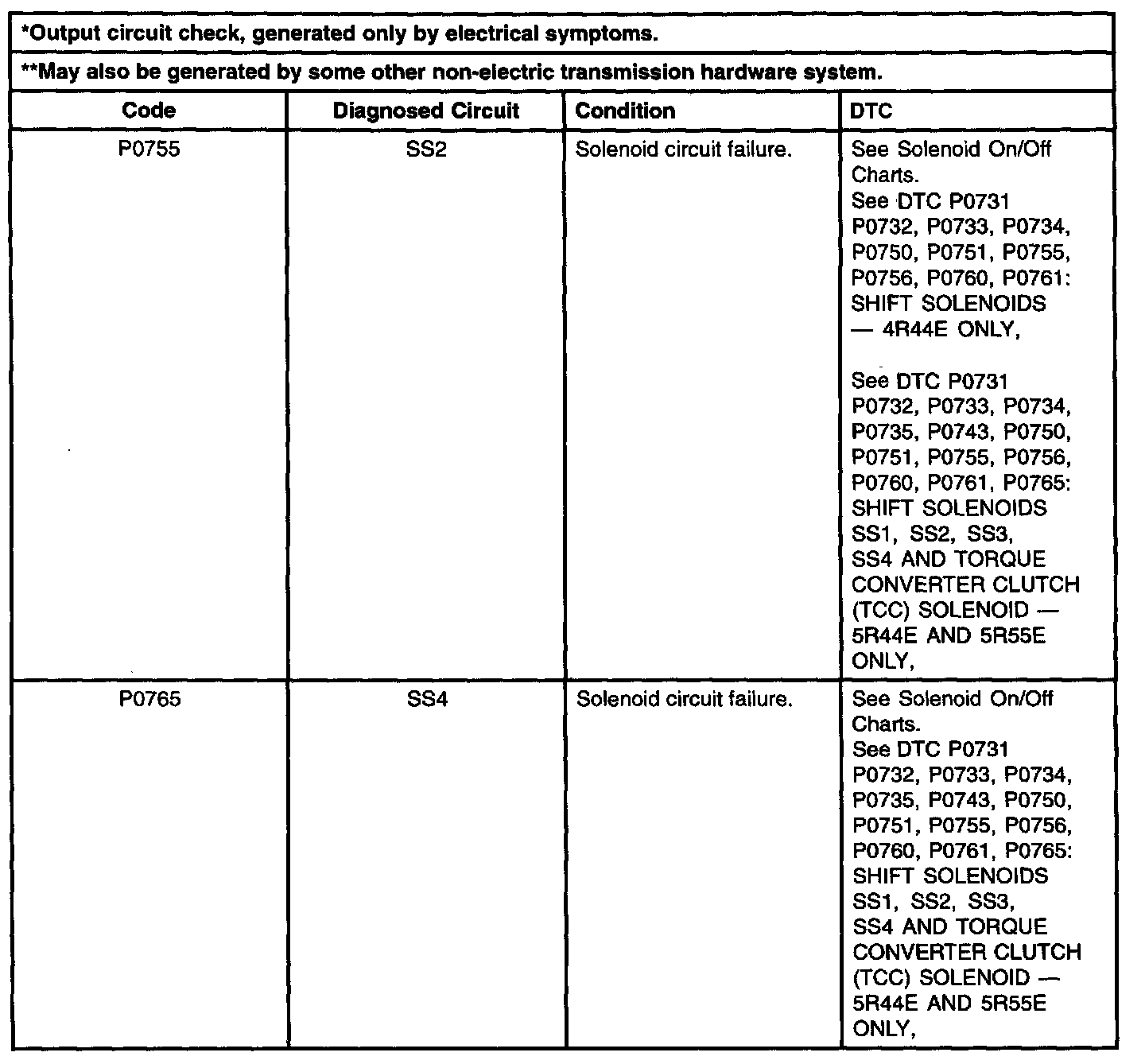

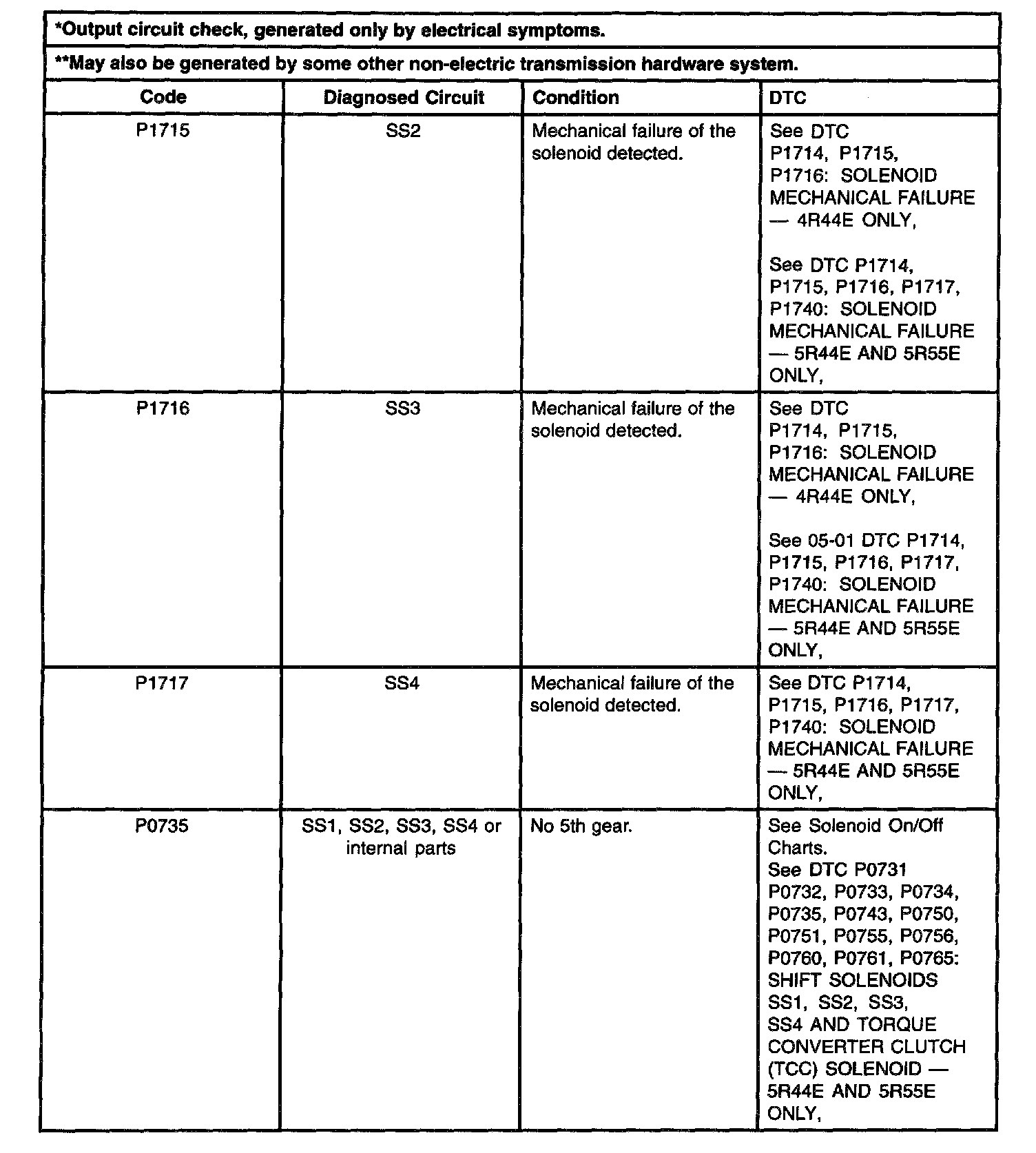

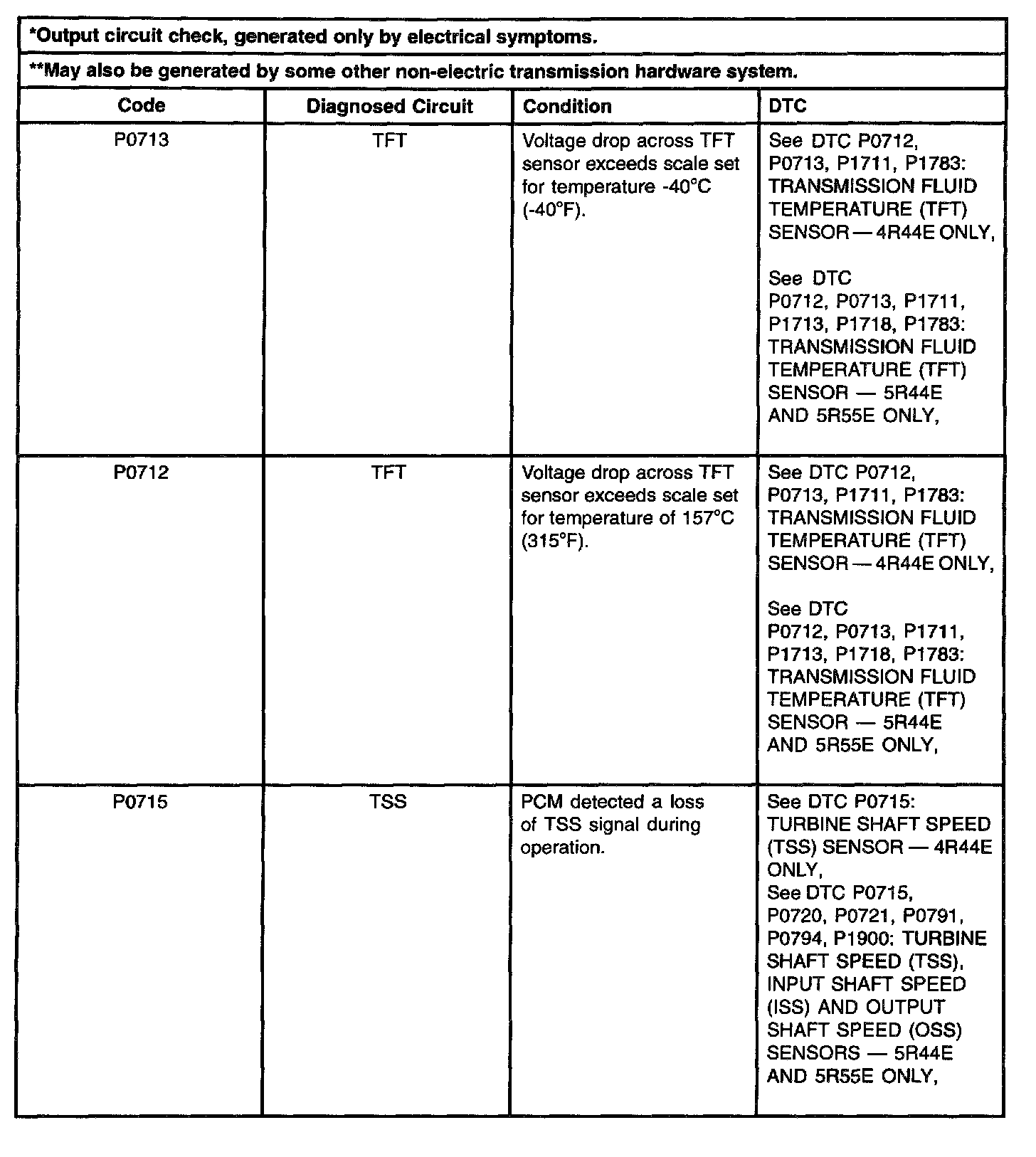

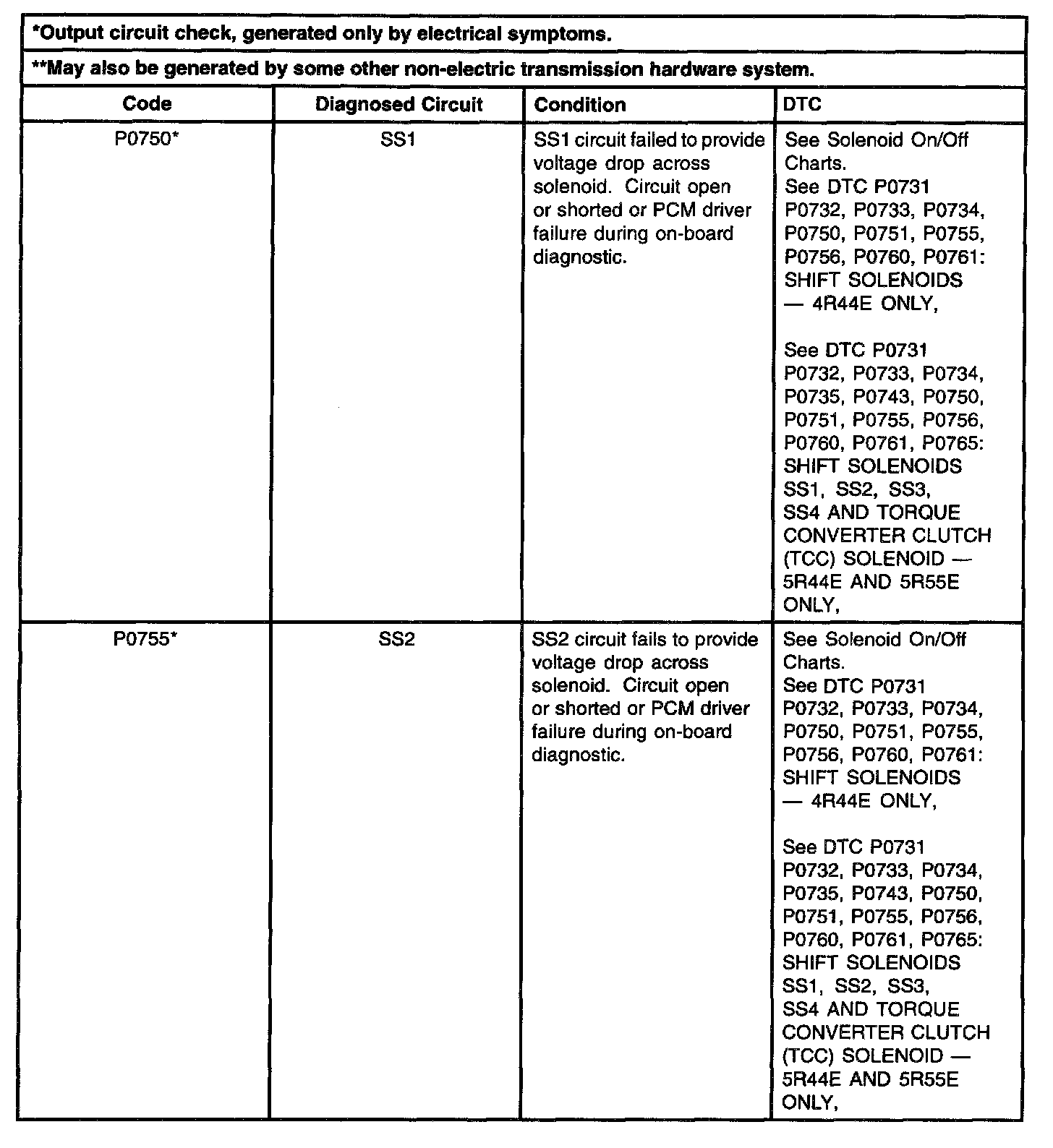

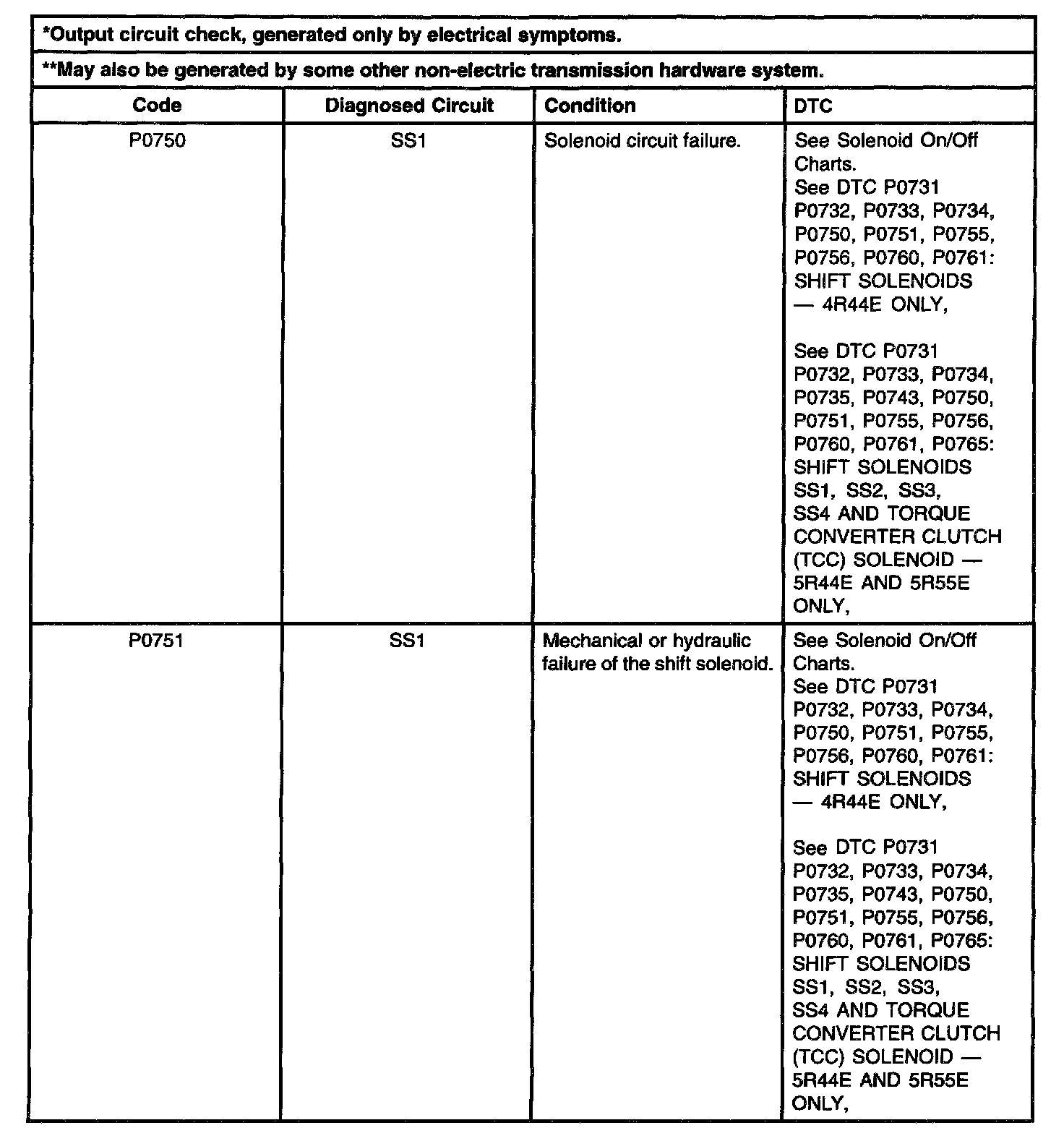

DIAGNOSTIC TROUBLE CODE CHART





1 of 15





2 of 15





3 of 15





4 of 15





5 of 15





6 of 15





7 of 15





8 of 15





9 of 15





10 of 15





11 of 15





12 of 15





13 of 15





14 of 15





15 of 15
