Mazda Truck
>>
2001
>>
B2300 SX Regular Cab 2WD L4-2.3L VIN D
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Courtesy Lamp
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Pinpoint Test 2
Pinpoint Test 2

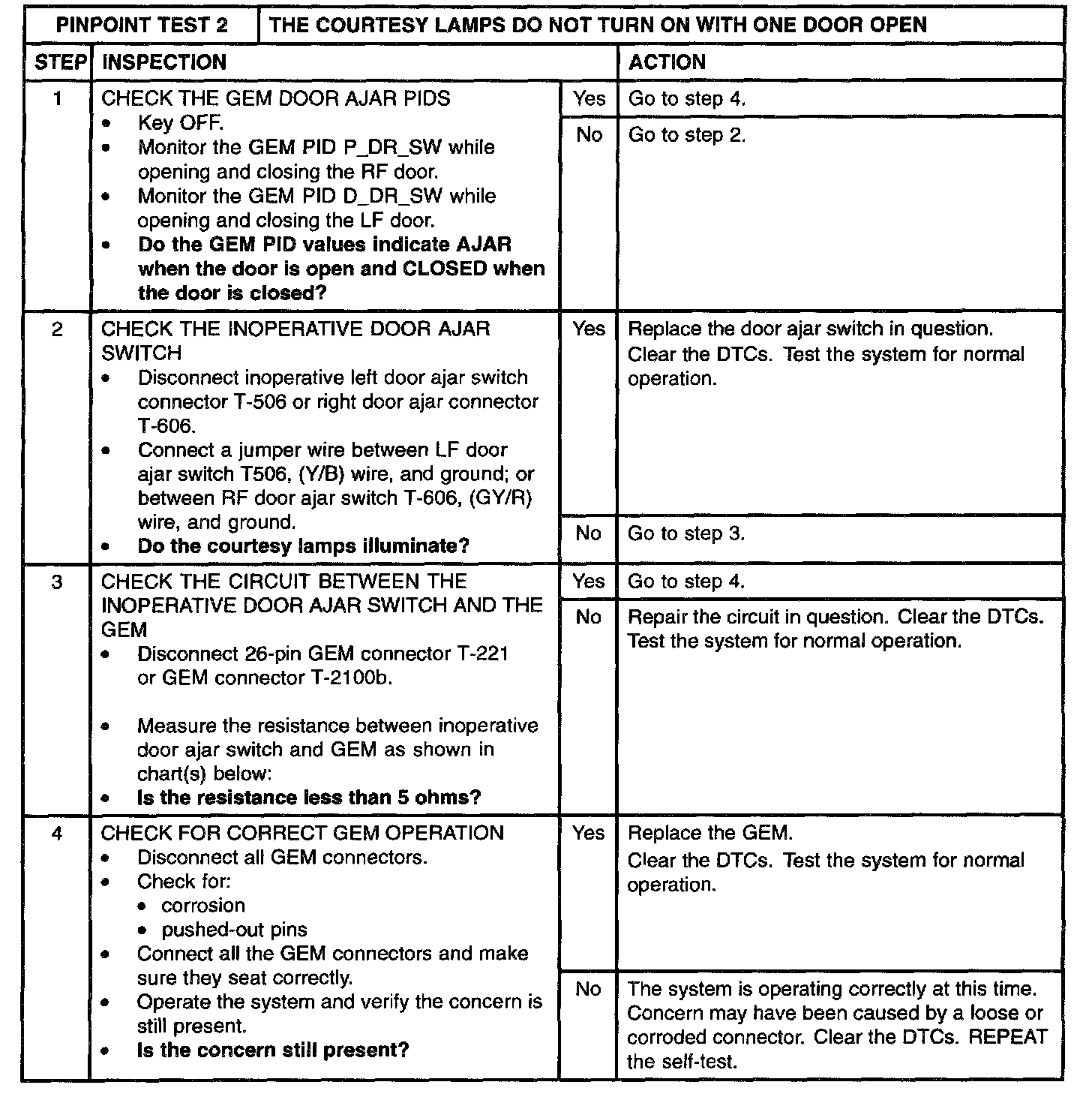

Step 1 - 4:

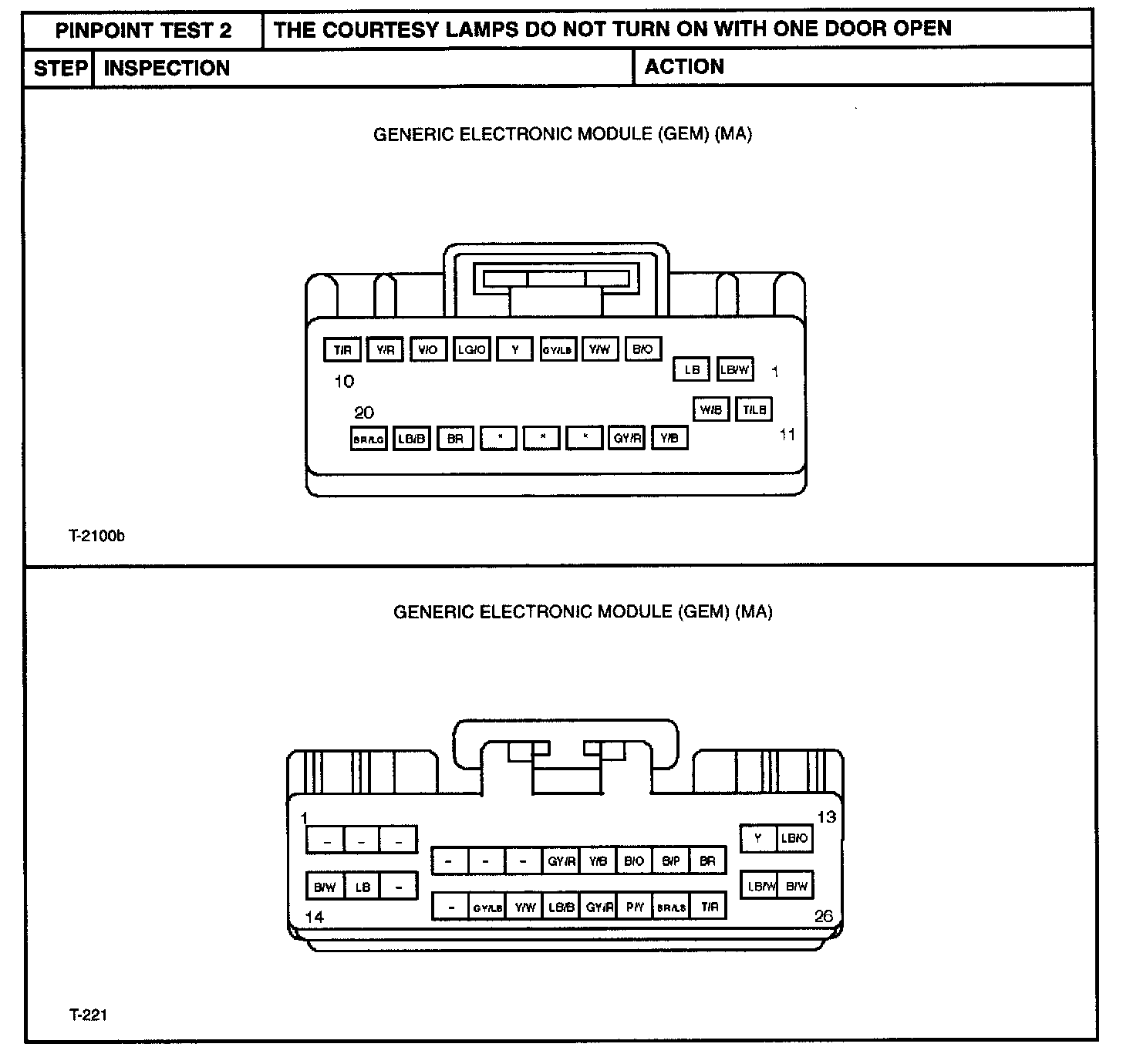

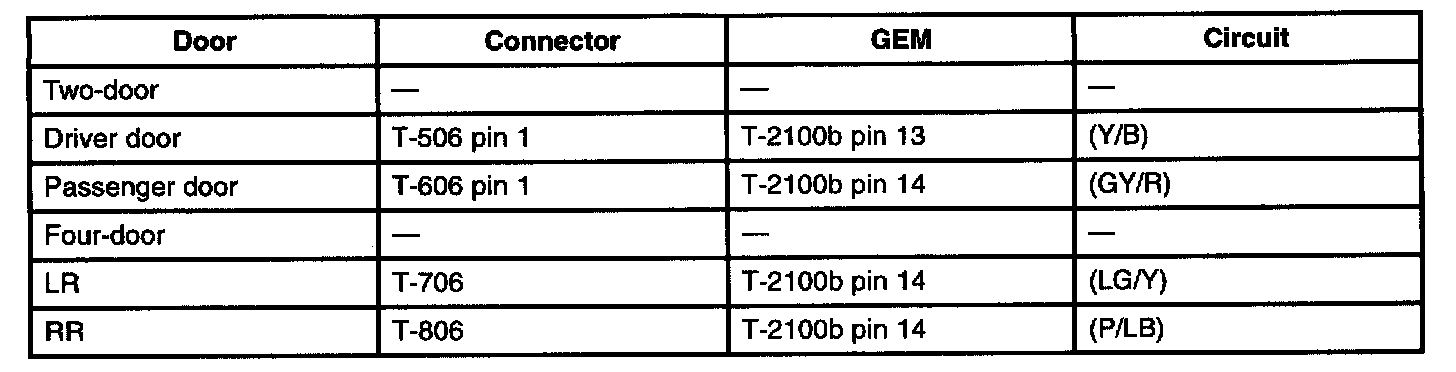

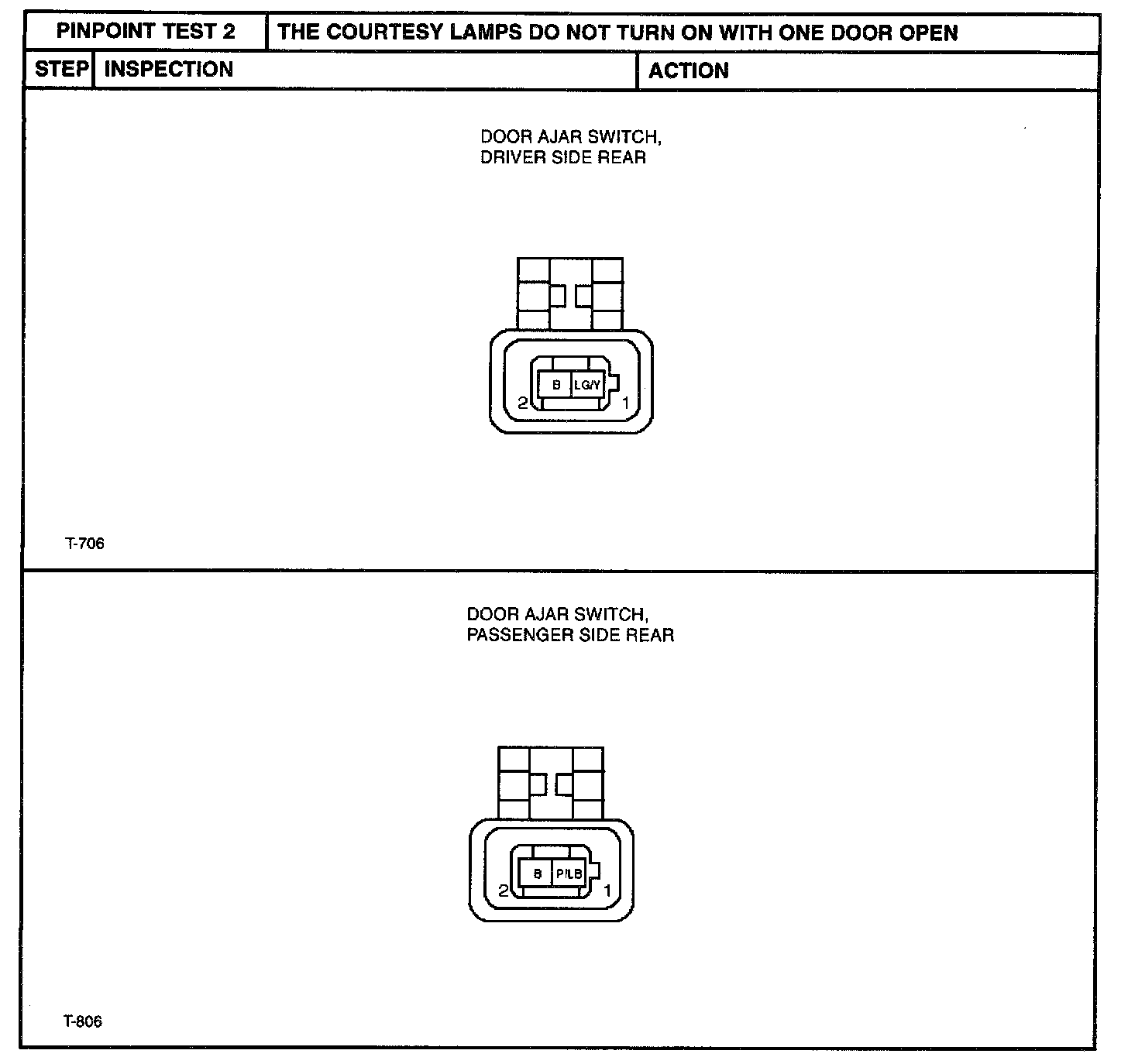

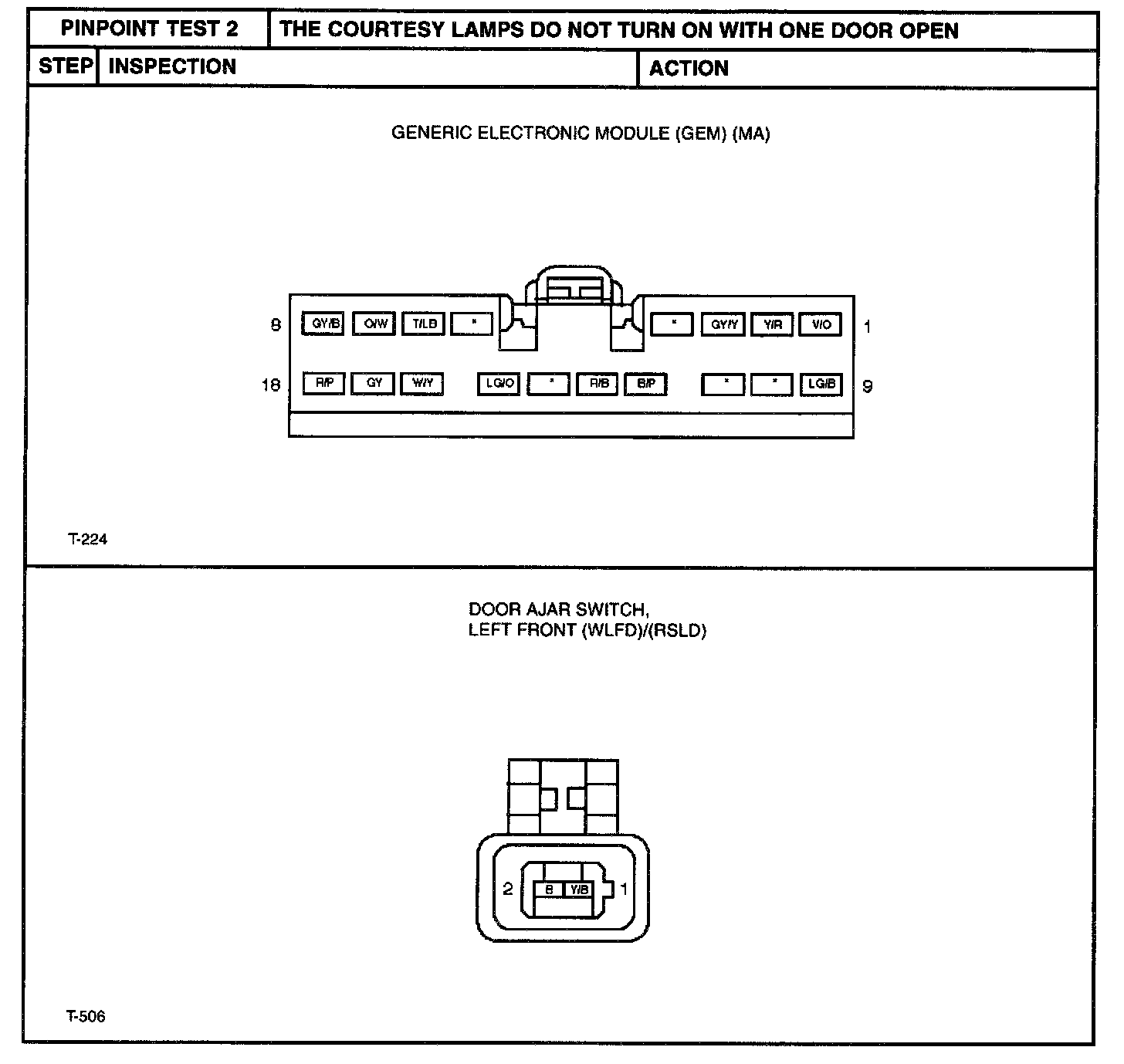

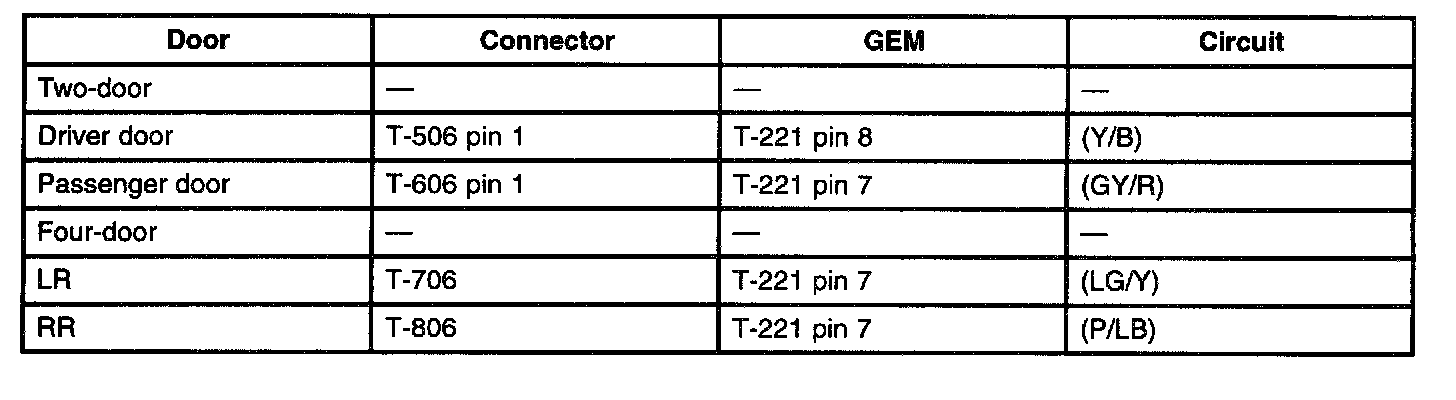

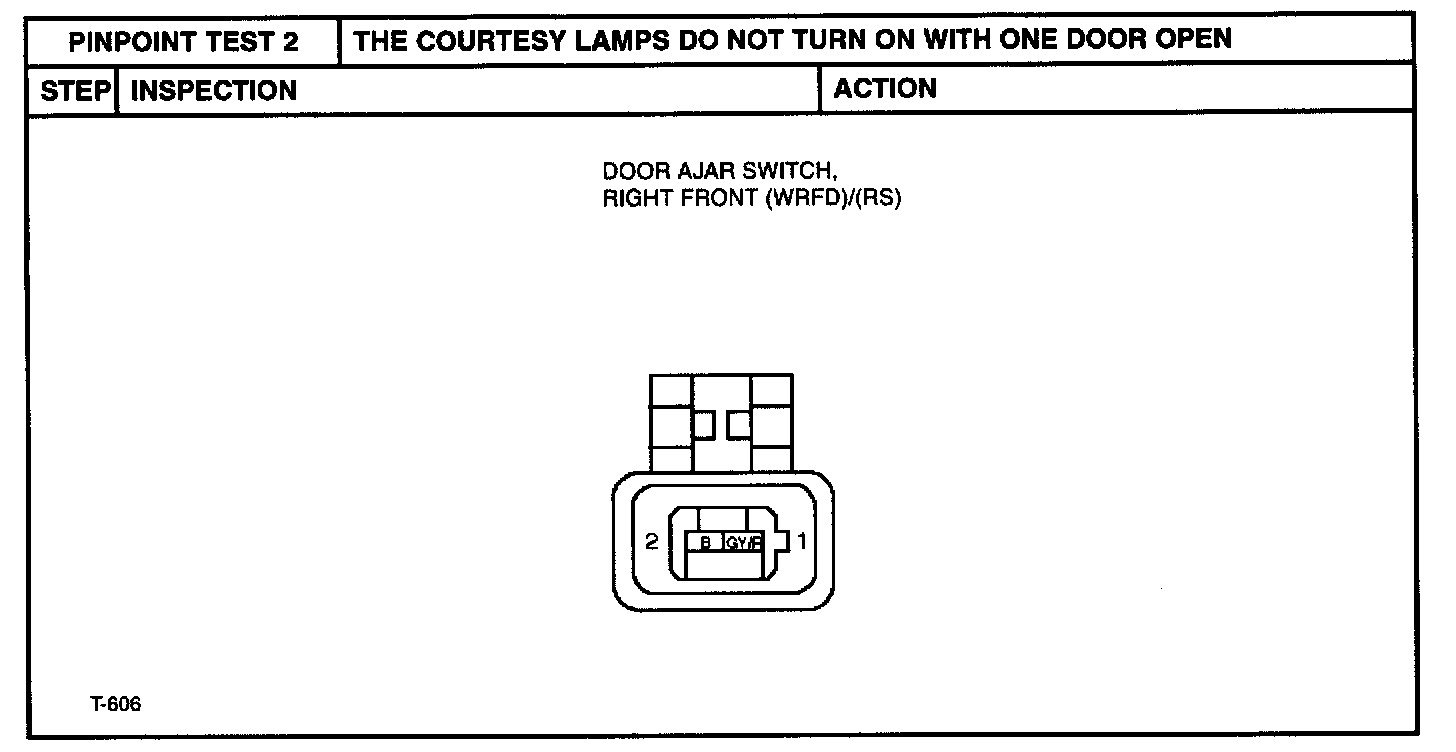

Inspection 1:
Inspection 2:
Inspection 3:
Inspection 4:
2.5 L:
3.0 L And 4.0 L:
