Component Locations
Component Locations

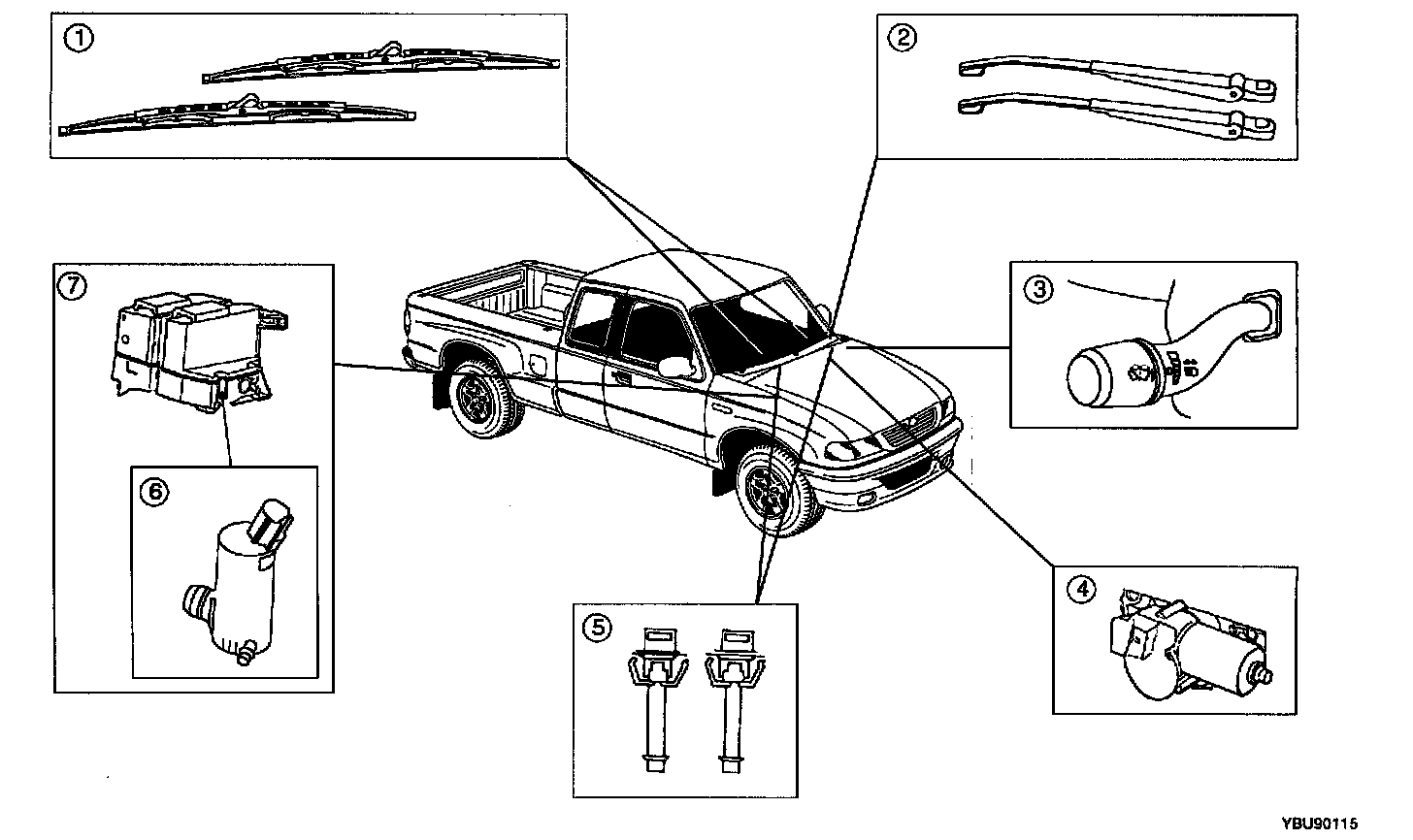

Windshield Wiper and Washer Component Part Description
1.
Windshield wiper blade
2.
Pivot arm
3.
Multi-function switch
4.
Windshield wiper motor
5.
Windshield washer nozzle jet and bracket
6.
Washerpump
7.
Washer reservoir
