Home >> Mazda Truck >> 2001 >> B2300 SE Regular Cab 2WD L4-2.3L VIN D >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Transmission and Drivetrain >> Clutch, M/T >> System Specifications

System Specifications

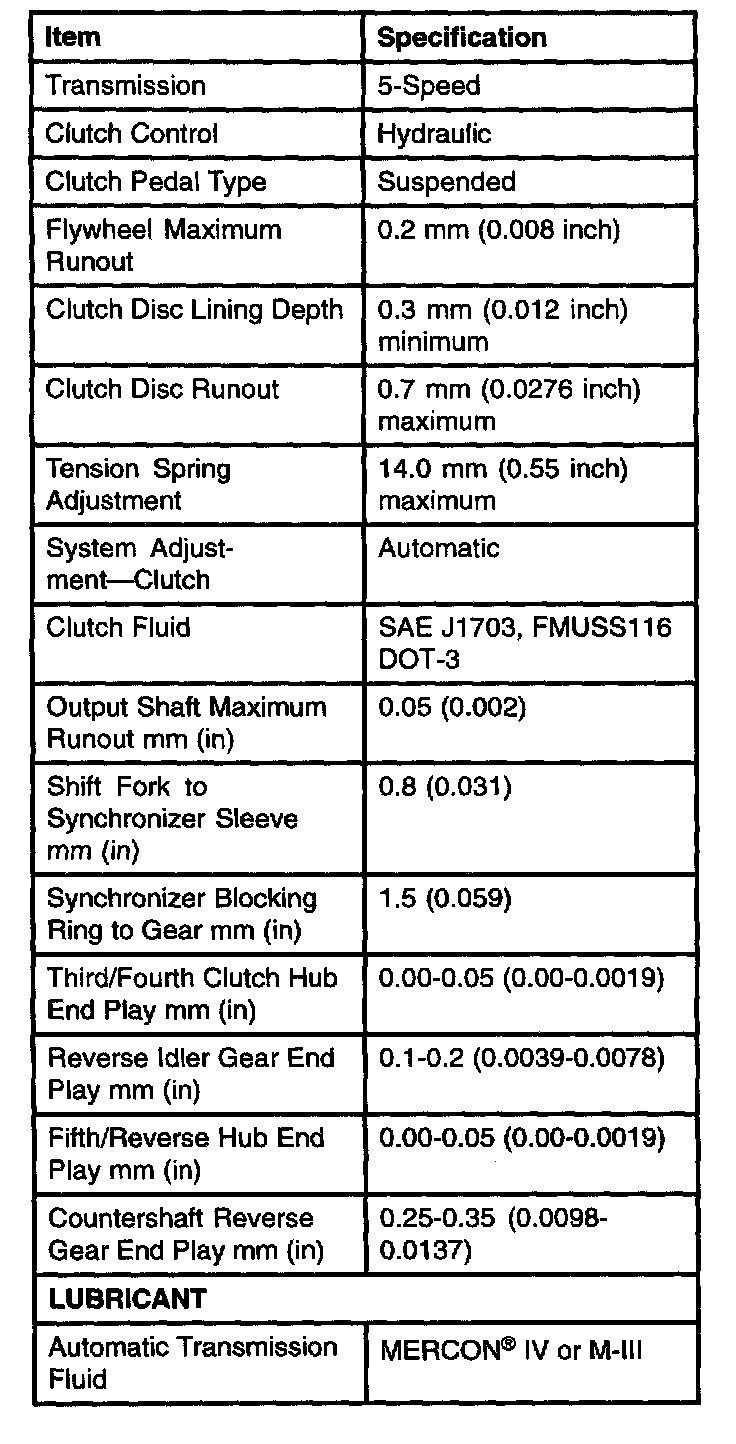

GENERAL SPECIFICATIONS

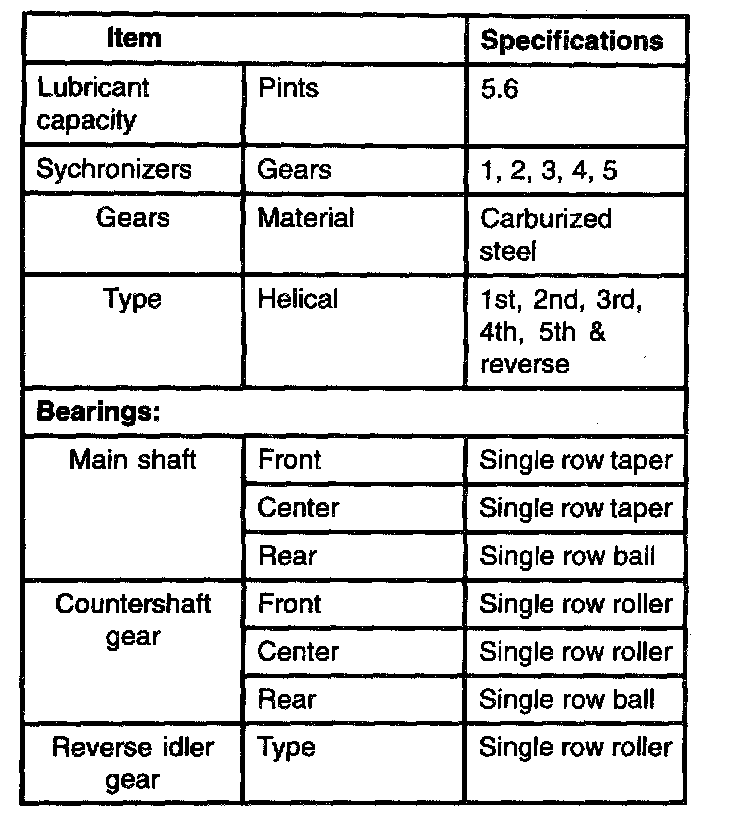

MANUAL TRANSMISSION SPECIFICATIONS - 5 SPEED OVERDRIVE (2.5L & 3.0L)

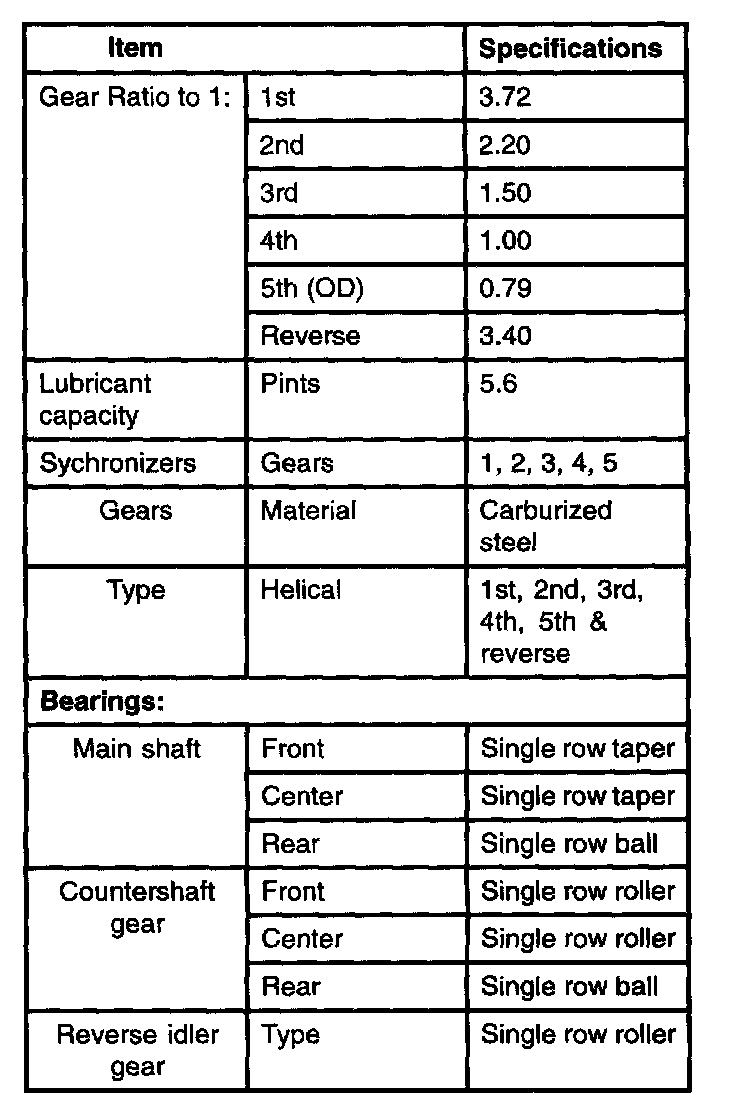

MANUAL TRANSMISSION SPECIFICATIONS - 5 SPEED OVERDRIVE (4.0L)





1 of 2





2 of 2

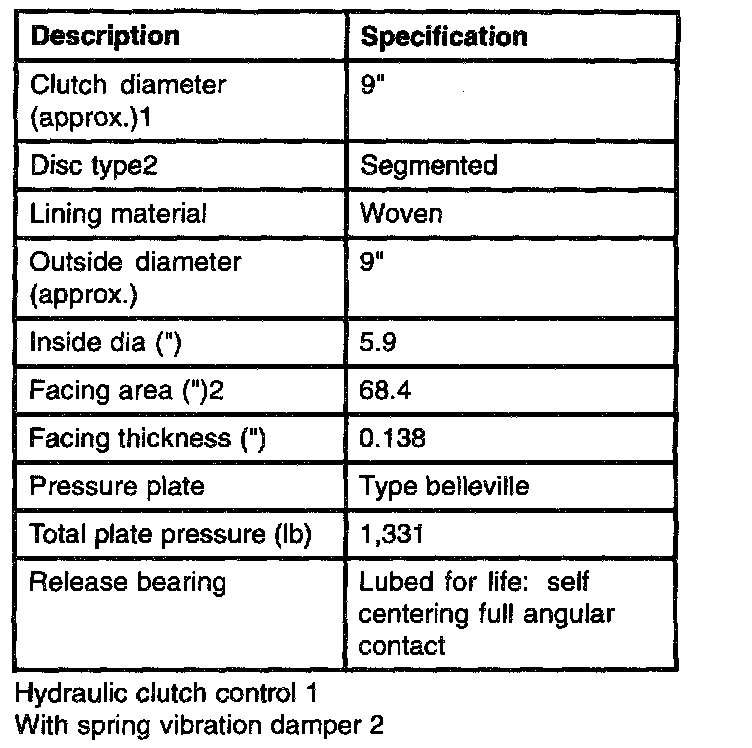

CLUTCH SPECIFICATIONS (2.5L)

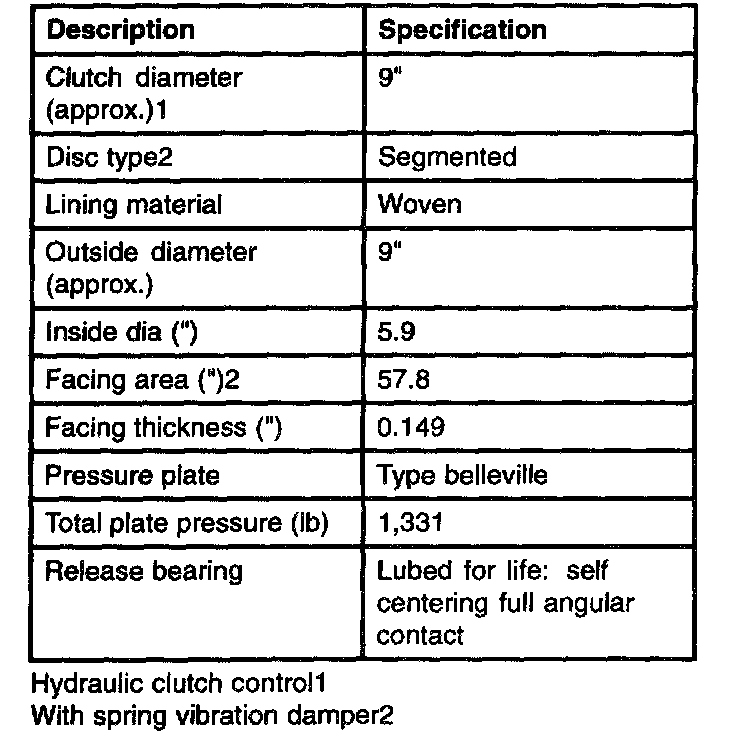

CLUTCH SPECIFICATIONS (3.0L)

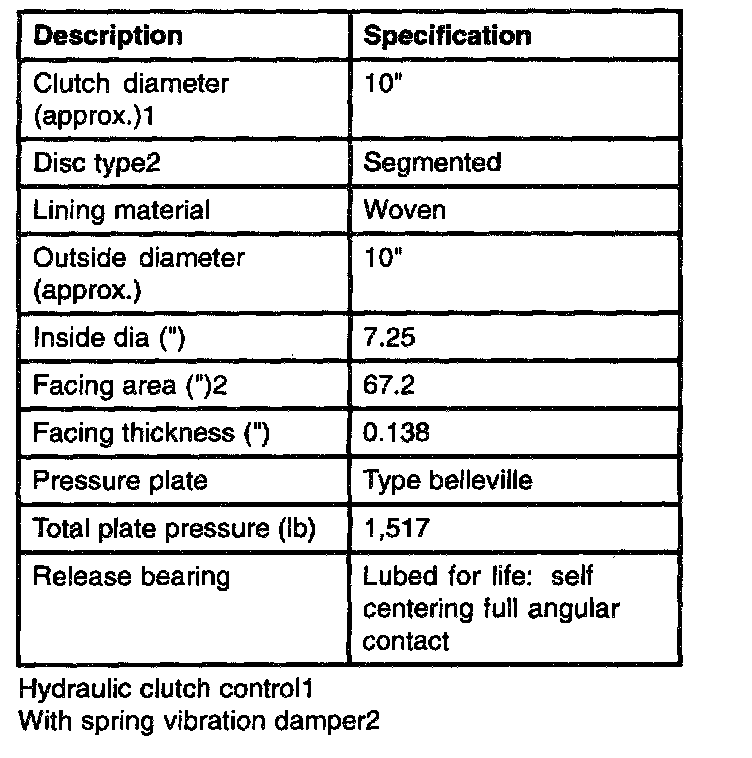

CLUTCH SPECIFICATIONS (4.0L)
