Mazda Truck
>>
2001
>>
B2300 SE Regular Cab 2WD L4-2.3L VIN D
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Information Bus
>>
Testing and Inspection
>>
Diagnosis By Symptom
>>
Pinpoint Test
>>
5. Module Does Not Respond to the NGS Tester (PCM)
5. Module Does Not Respond to the NGS Tester (PCM)

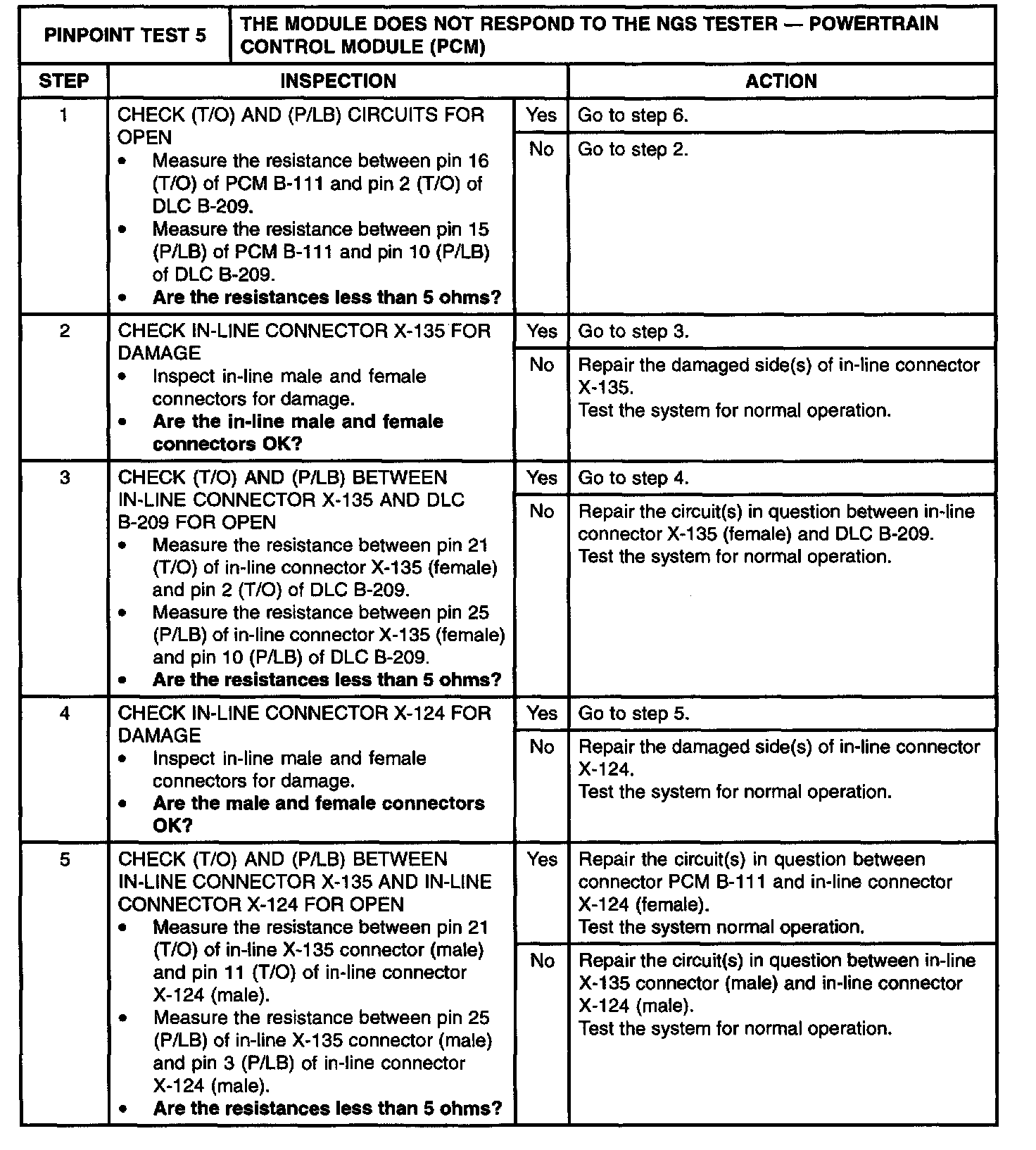

Step 1 - 5:

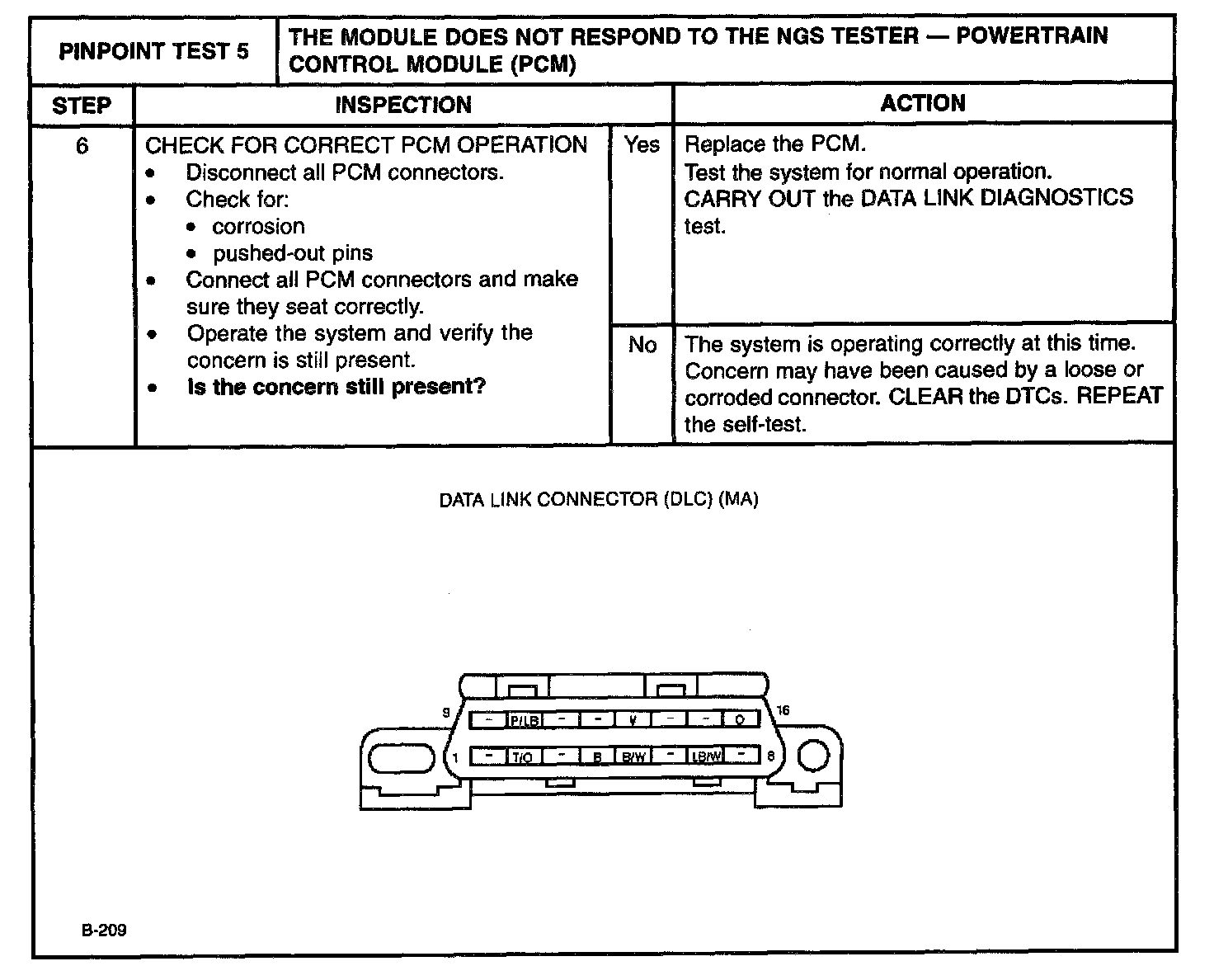

Step 6:
Inspection:
