1. Module Does Not Respond to the NGS Tester - (4WABS)
1. Module Does Not Respond to the NGS Tester - (4WABS)

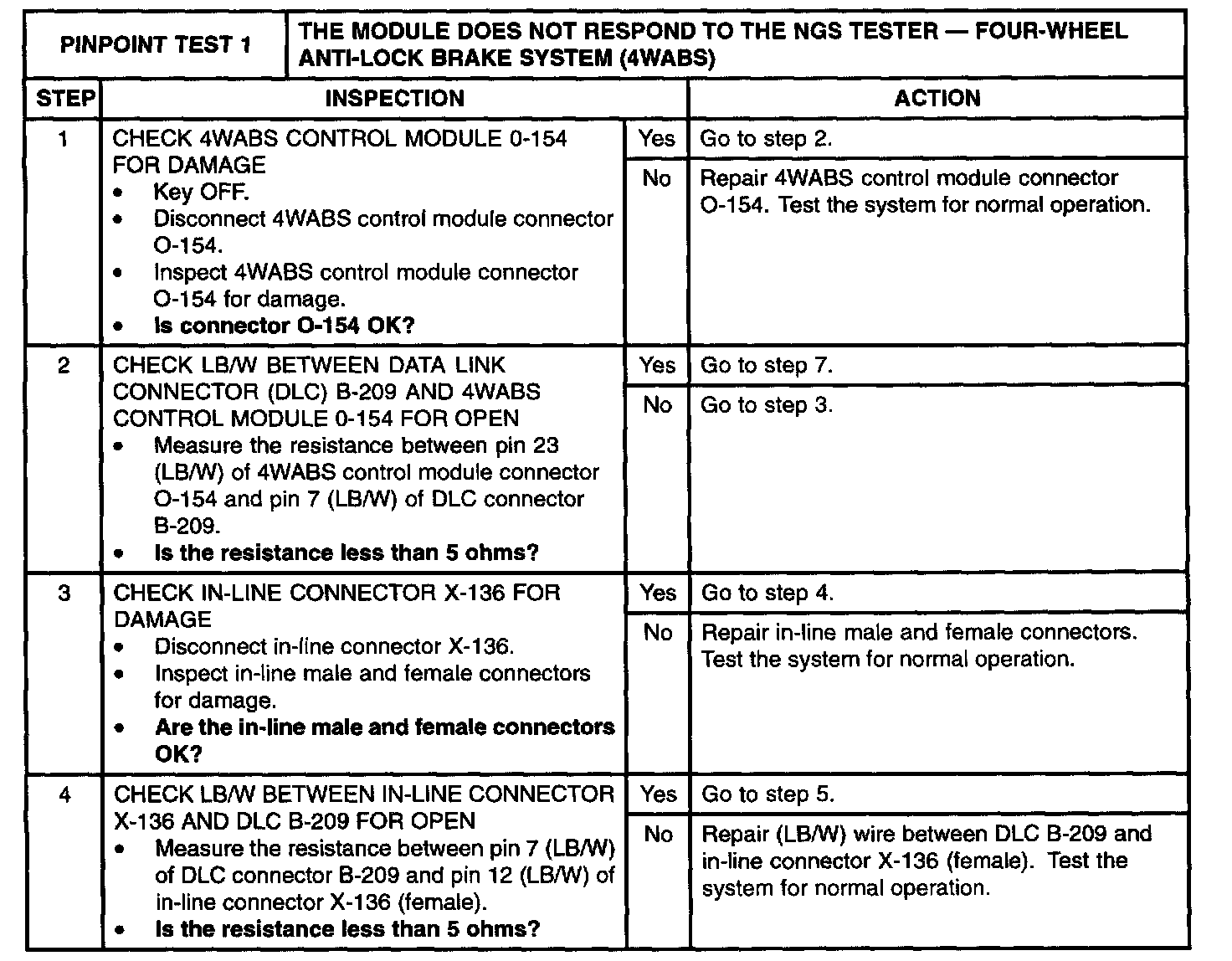

Step 1 - 4:

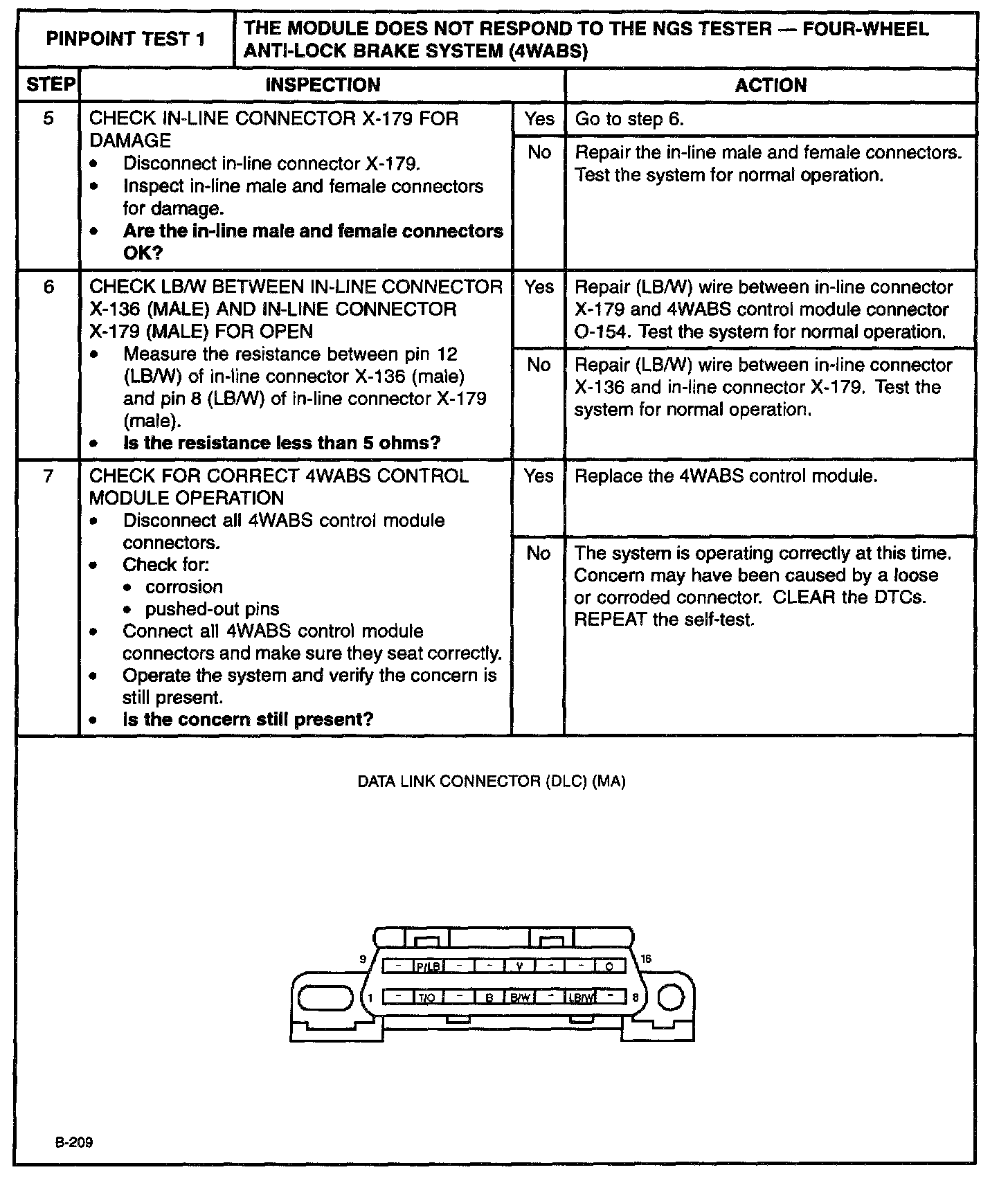

Step 5 - 7:
Inspection 1:

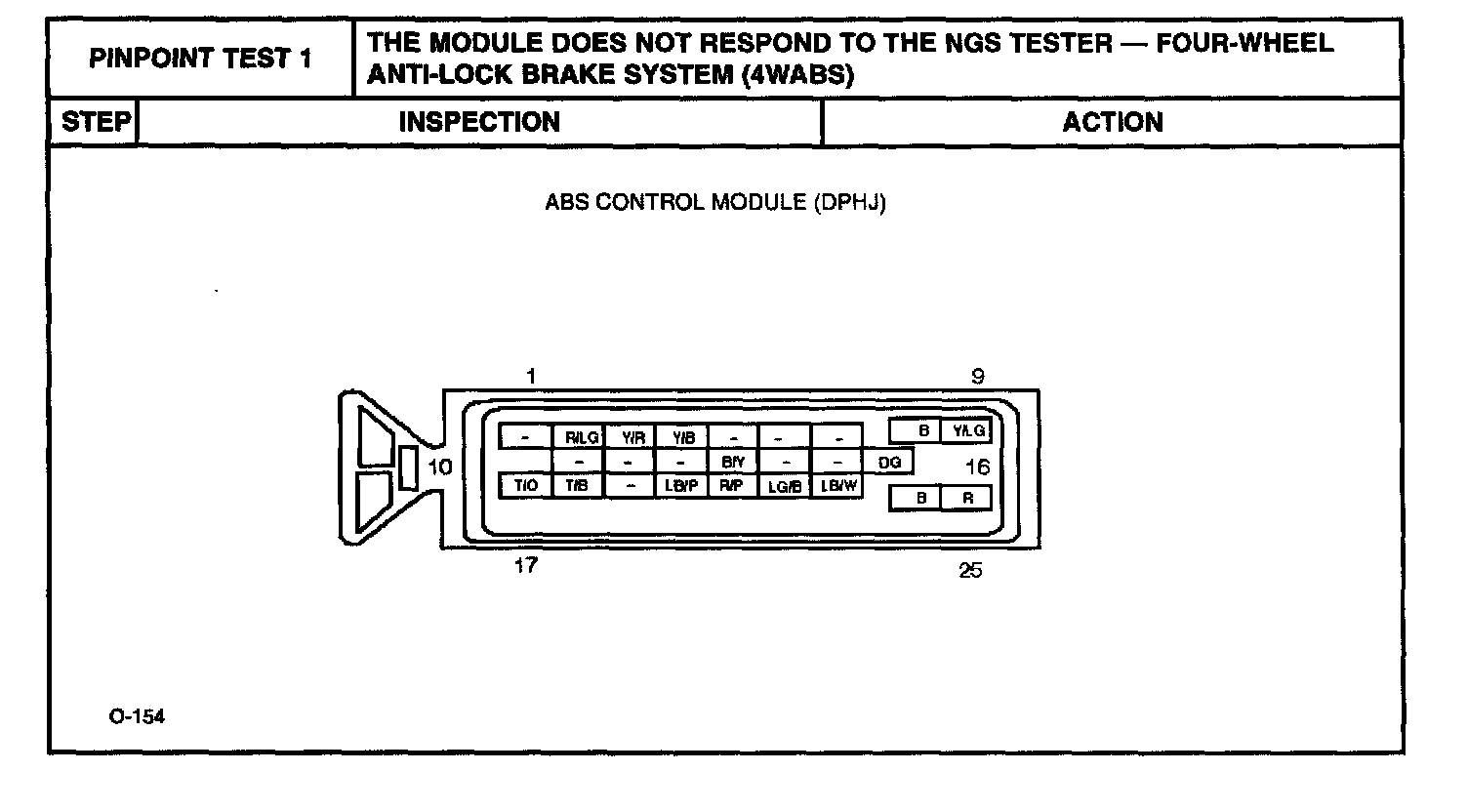

Inspection 2:
