Dimmer Switch: Service and Repair

1. Remove the instrument cluster finish panel.

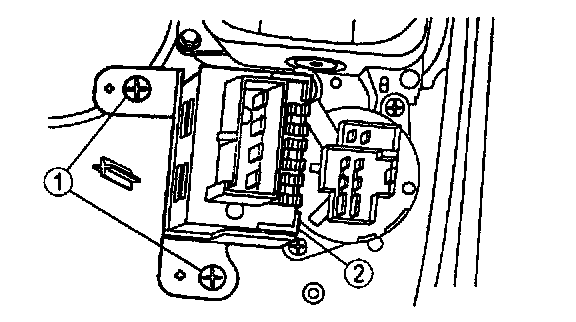

2. Remove in the order as indicated below.
1. Screws (1)
2. Dimmer switch (2)

3. Install in reverse order of removal.

Tightening torque: 2 - 3 N.m { 20 - 31 kgf.cm, 18 - 26 in.lbf }
