Mazda Truck
>>
2001
>>
B2300 SE Regular Cab 2WD L4-2.3L VIN D
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Pinpoint Tests
>>
3: A/C Does Not Operate/Does Not Operate Correctly
3: A/C Does Not Operate/Does Not Operate Correctly

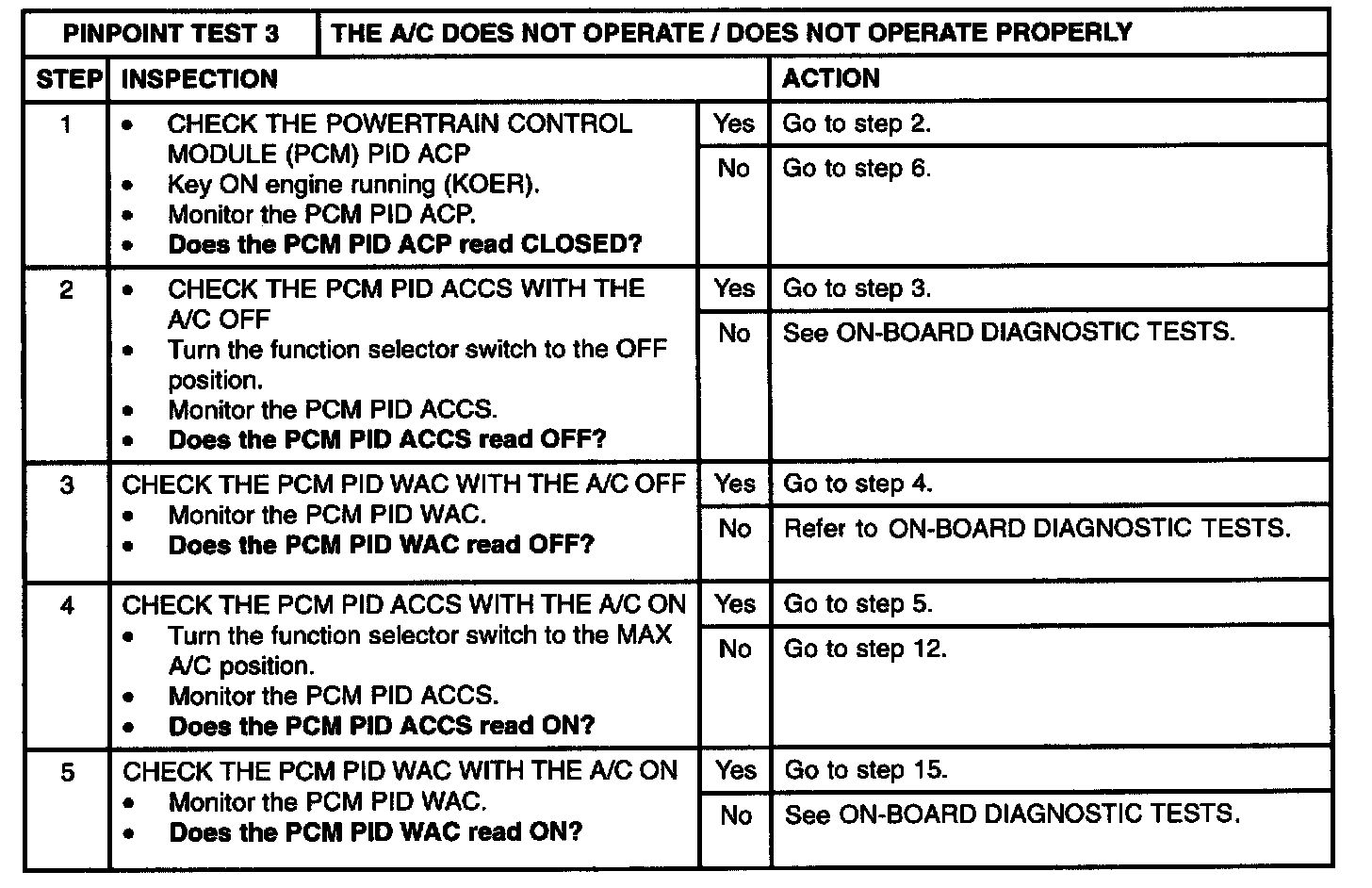

Step 1 - 5:

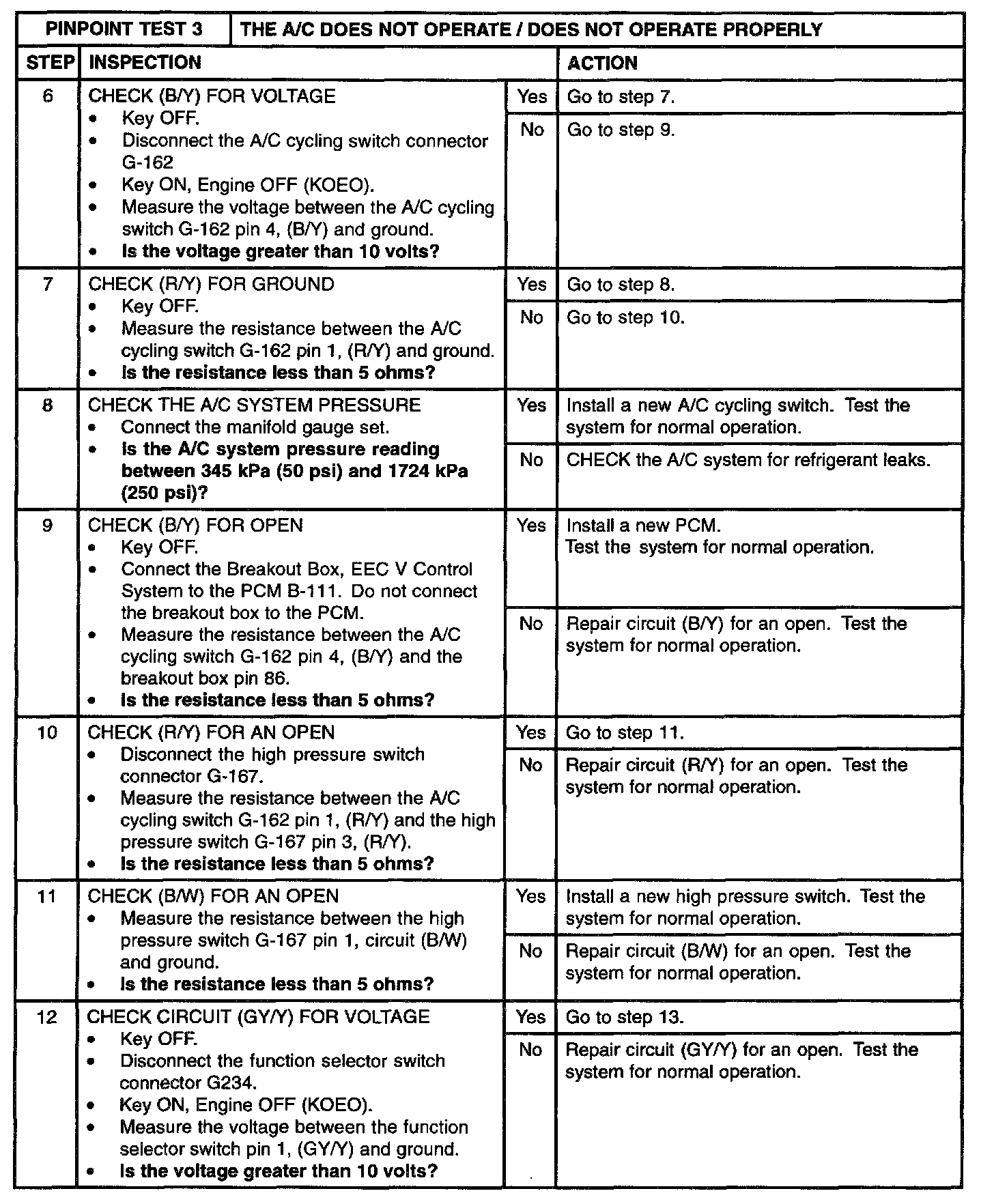

Step 8 - 12:

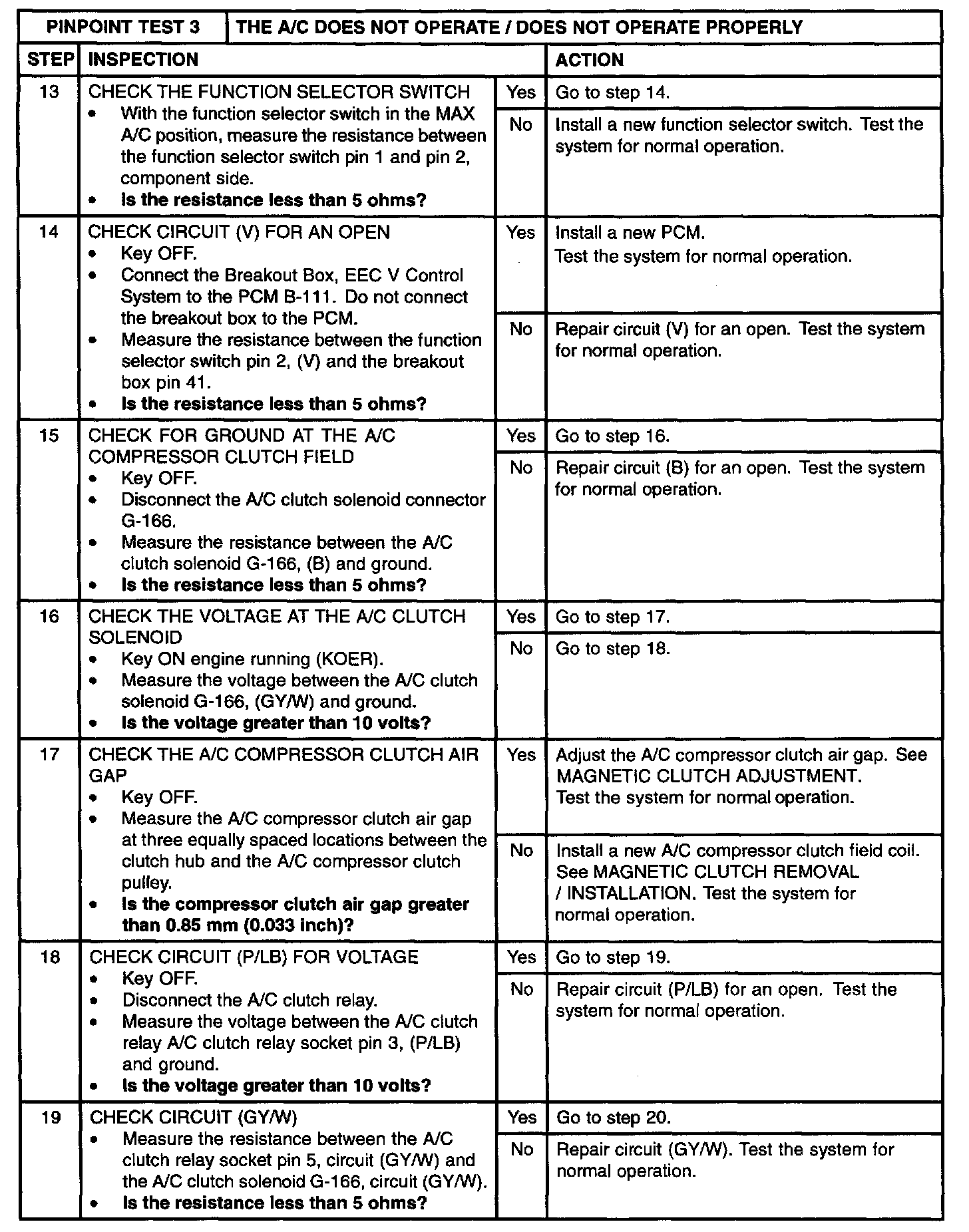

Step 13 - 19:

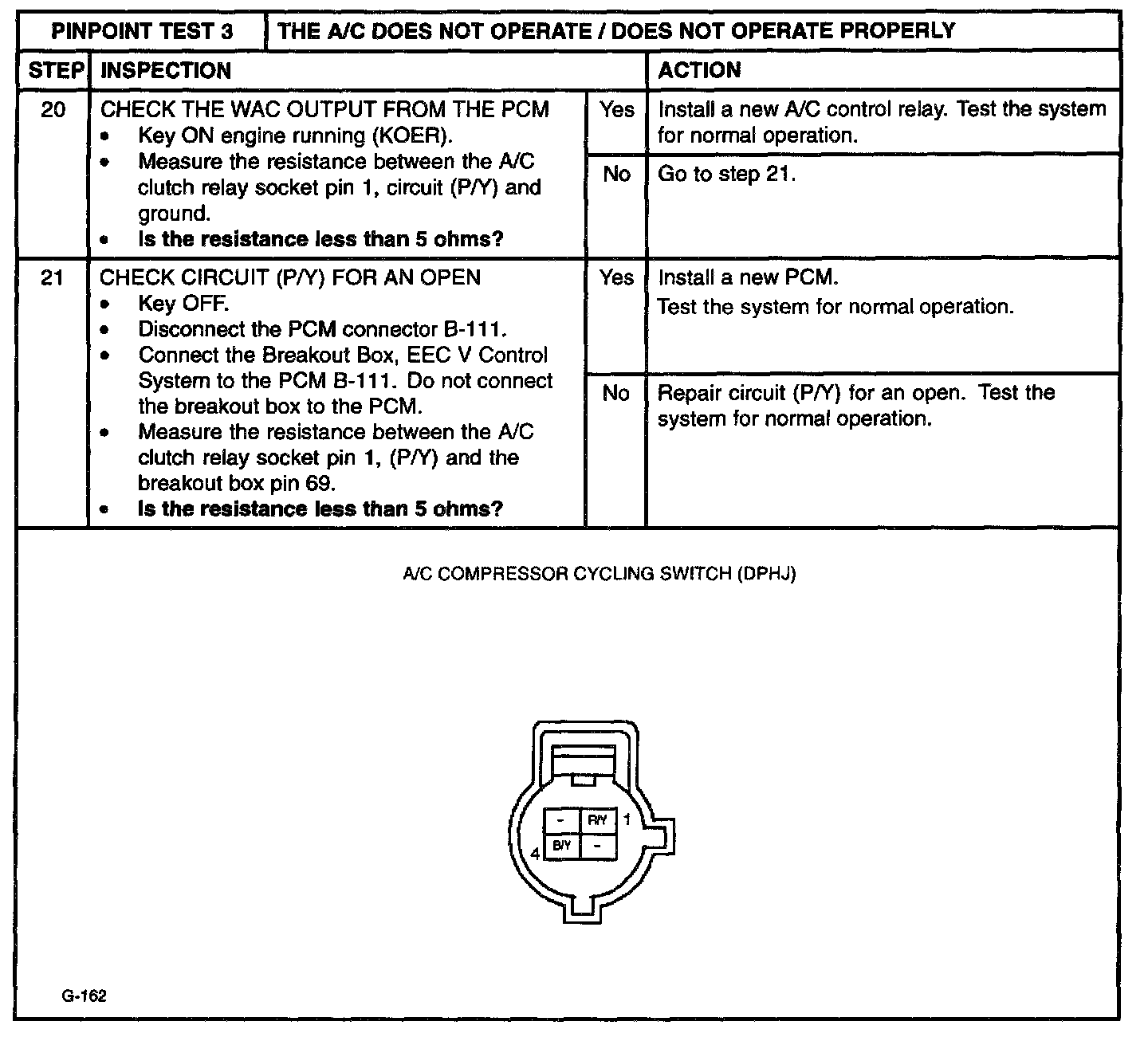

Step 20 - 21:

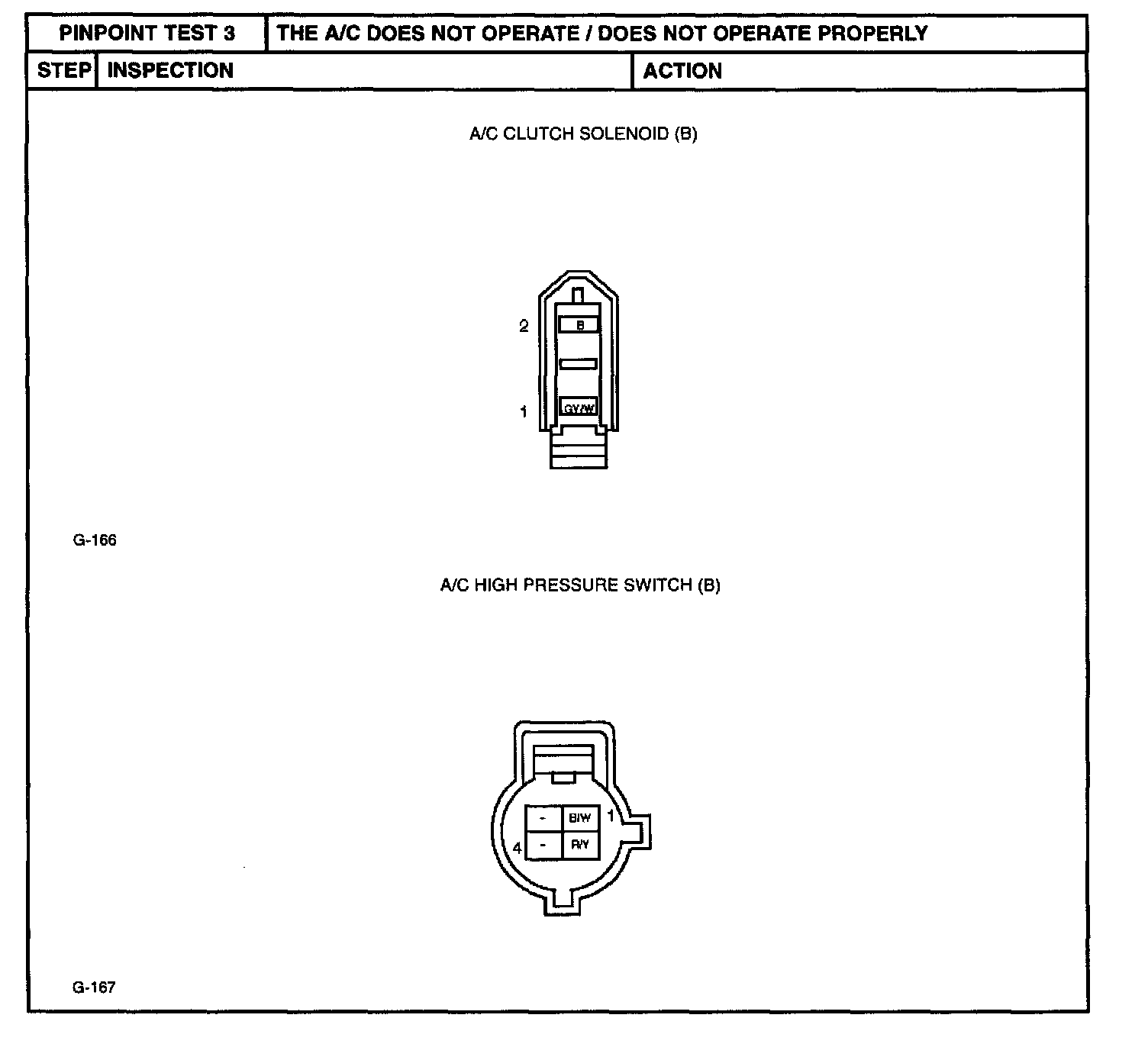

Inspection 1:

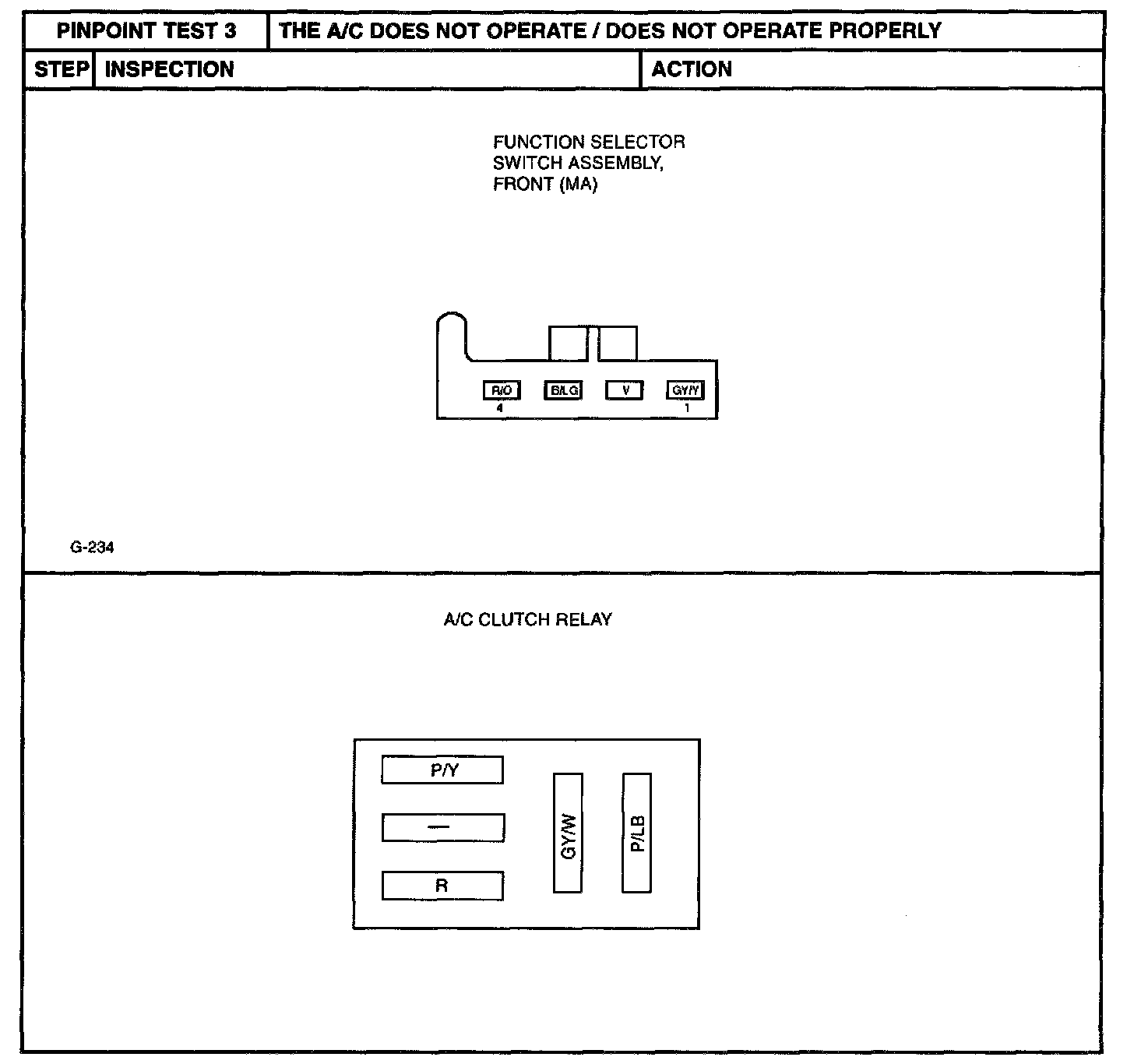

Inspection 2:
