Air Duct: Service and Repair

HEATER OUTLET FLOOR DUCT




1. Remove the plenum chamber.

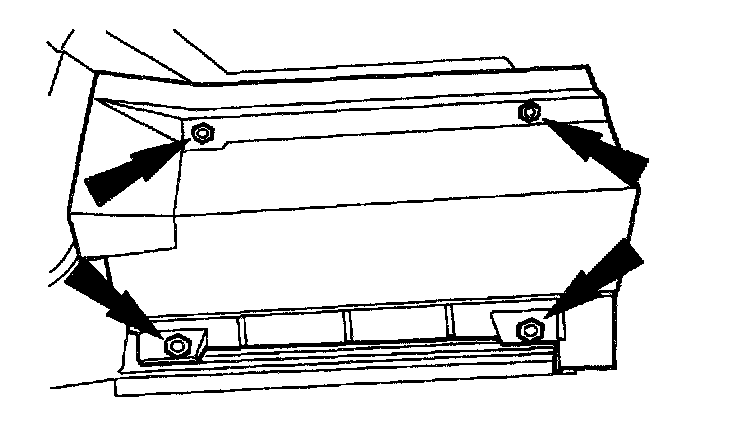

2. Remove the screws and remove the heater outlet floor duct.
3. Install in reverse order of removal.

Tightening Torque: 2 - 3 N.m { 20 - 30 kgf.cm, 18 - 26 in.lbf }.
