Disassembly and Assembly

Disassembly Note

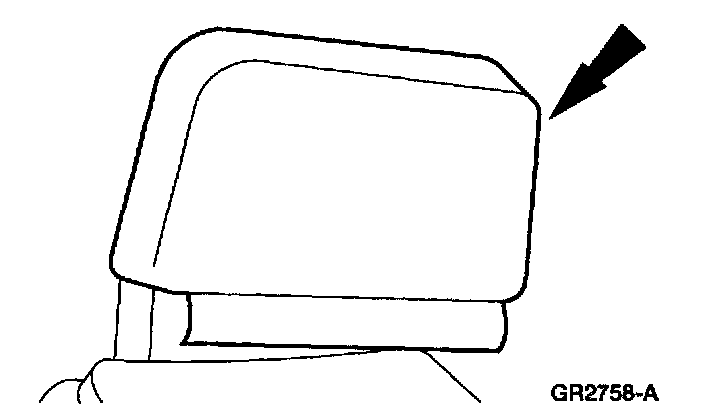

1. Unhook the trim cover retainer.

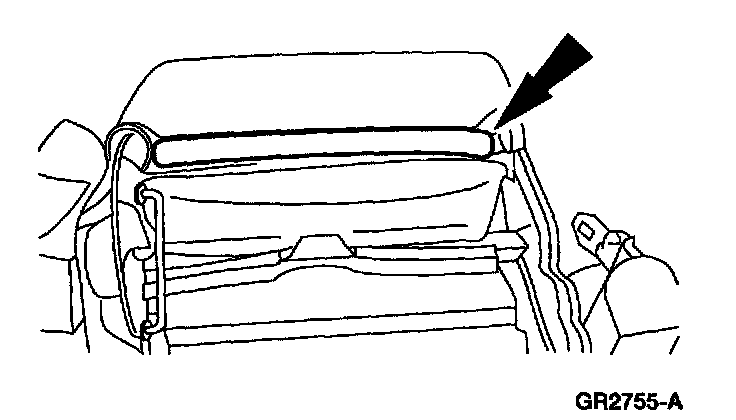

2. Reposition the seat back trim cover.

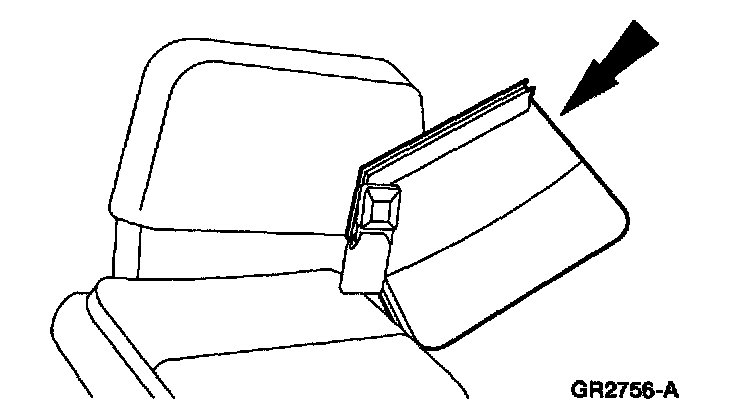

3. Remove the seat back trim cover and the safety belt buckle.

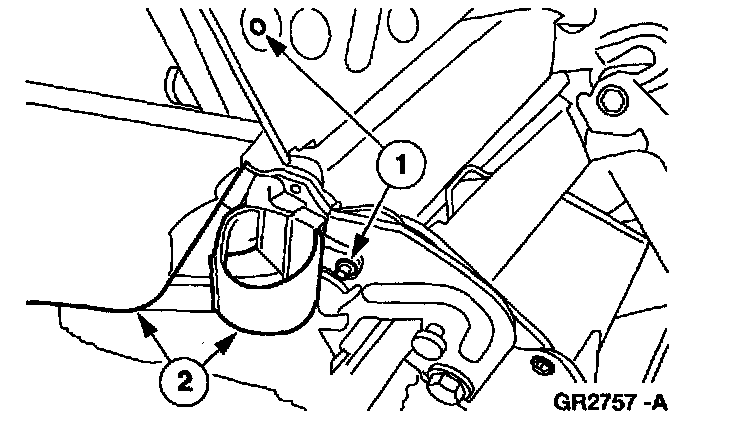

1. Drill out the rivets.
2. Remove the seat back trim cover and the safety belt buckle.

CAUTION: Use care when removing the seat back padding because it may be attached to the seat back frame with adhesive.

4. Remove the seat back cushion.

Assembly Note
1. To assemble reverse the disassembly procedure.
2. Check the restraint system for correct operation.
