Fuel Injector: Service and Repair

1. Remove fuel rail.

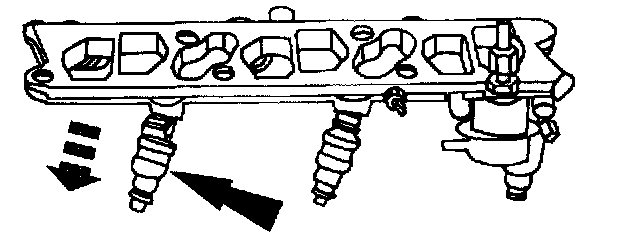

2. Remove the six fuel injectors from fuel rail.

NOTE: Lubricate new O-ring seals with clean engine oil.

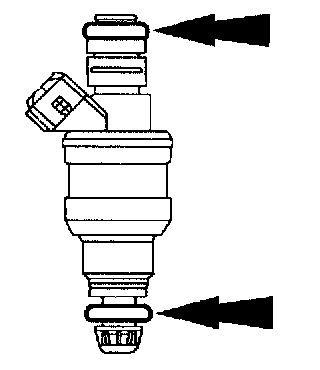

3. Install new O-rings as needed.
4. Install in reverse order of removal.
