3: The A/C Does Not Operate/does Not Operate Properly
3: The A/C Does Not Operate/does Not Operate Properly

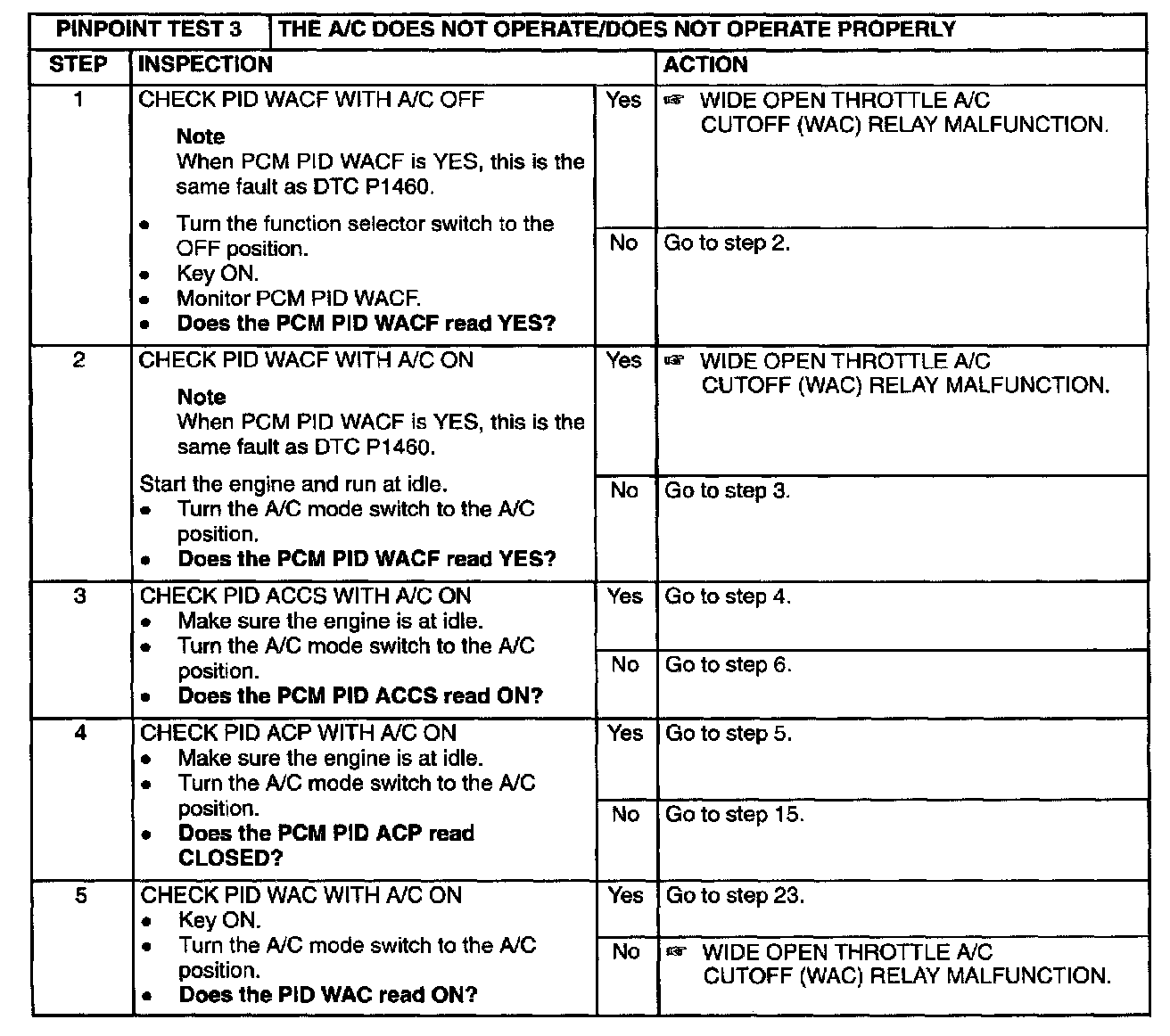

Steps 1 - 5:

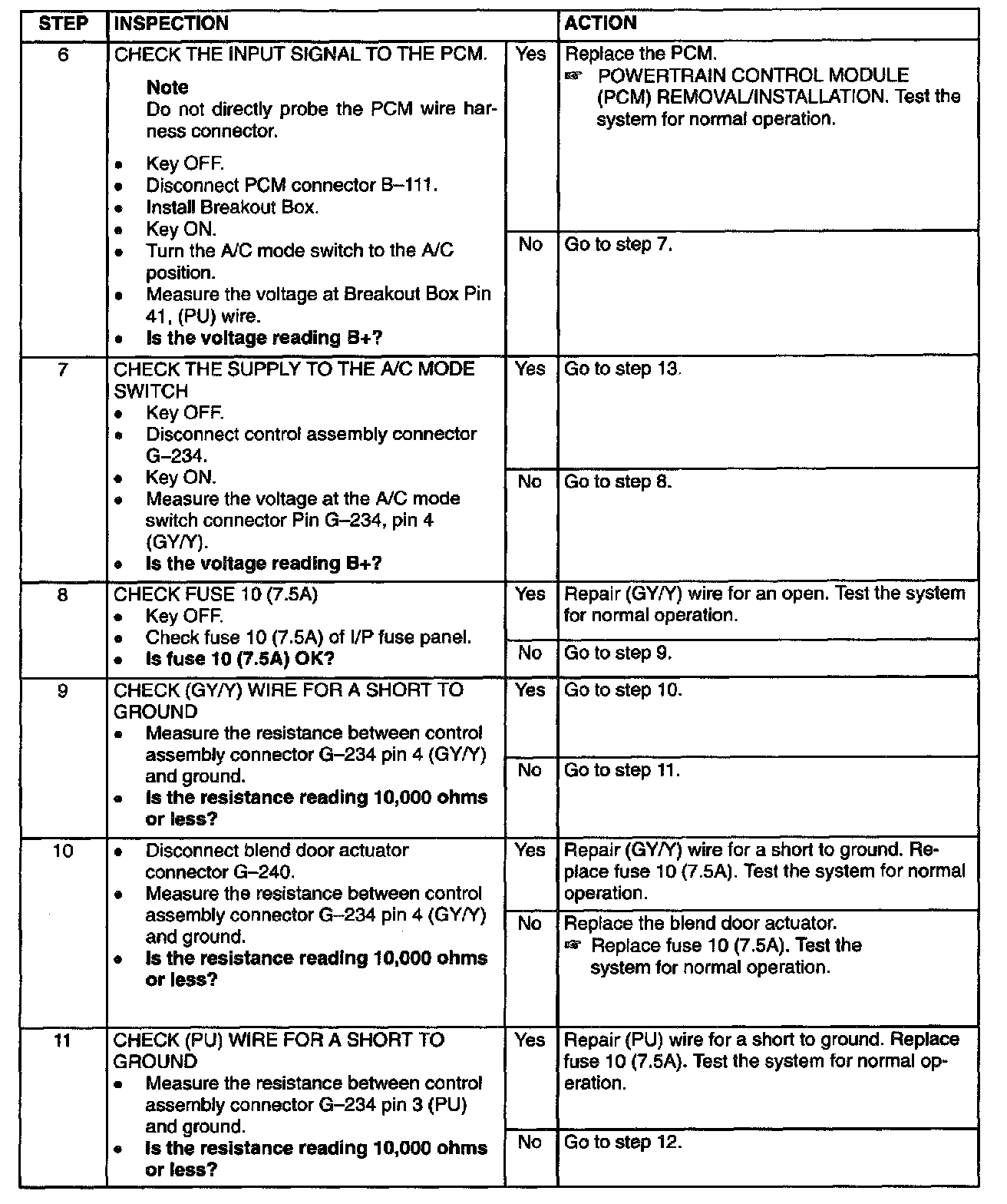

Steps 6 - 11:

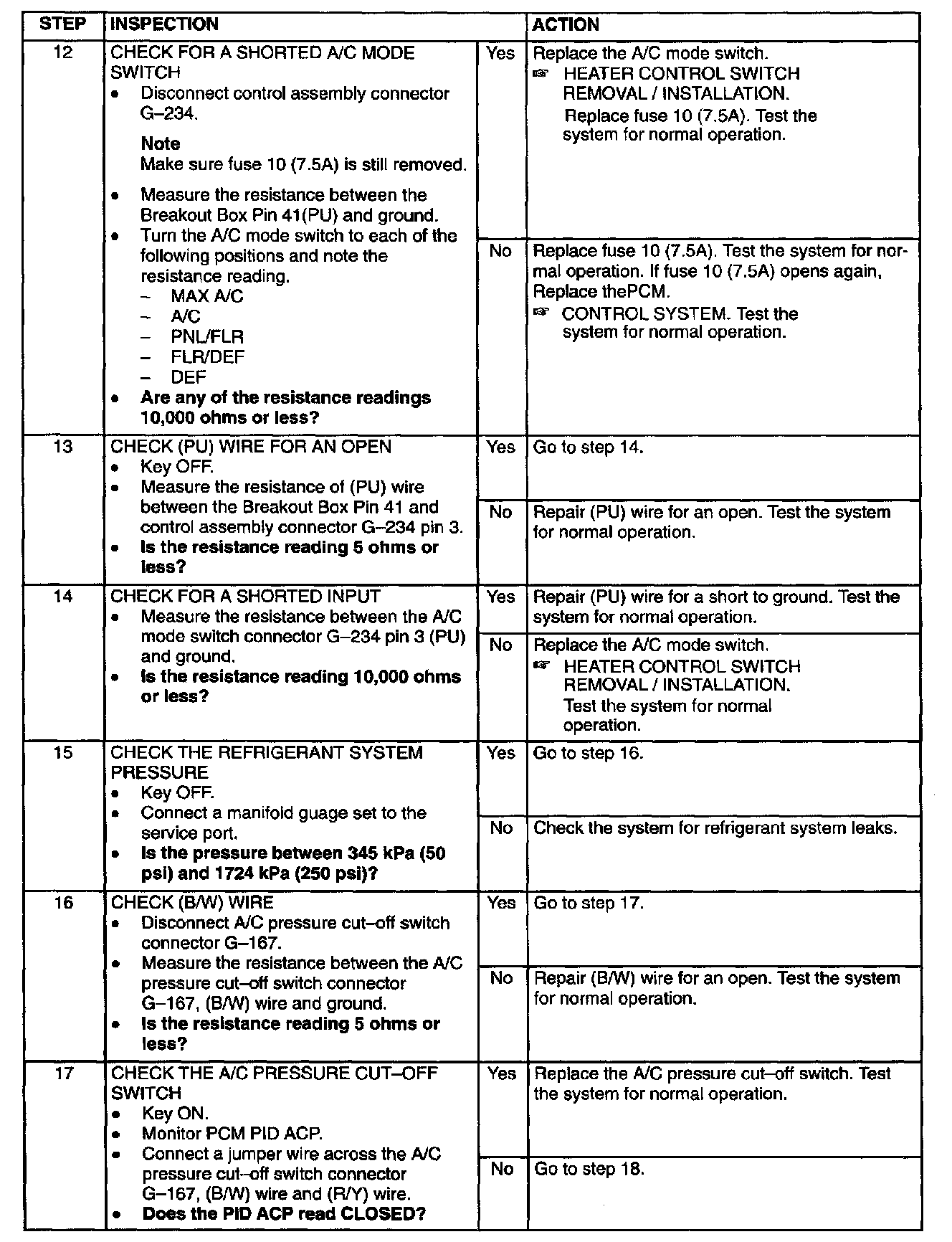

Steps 12 - 17:

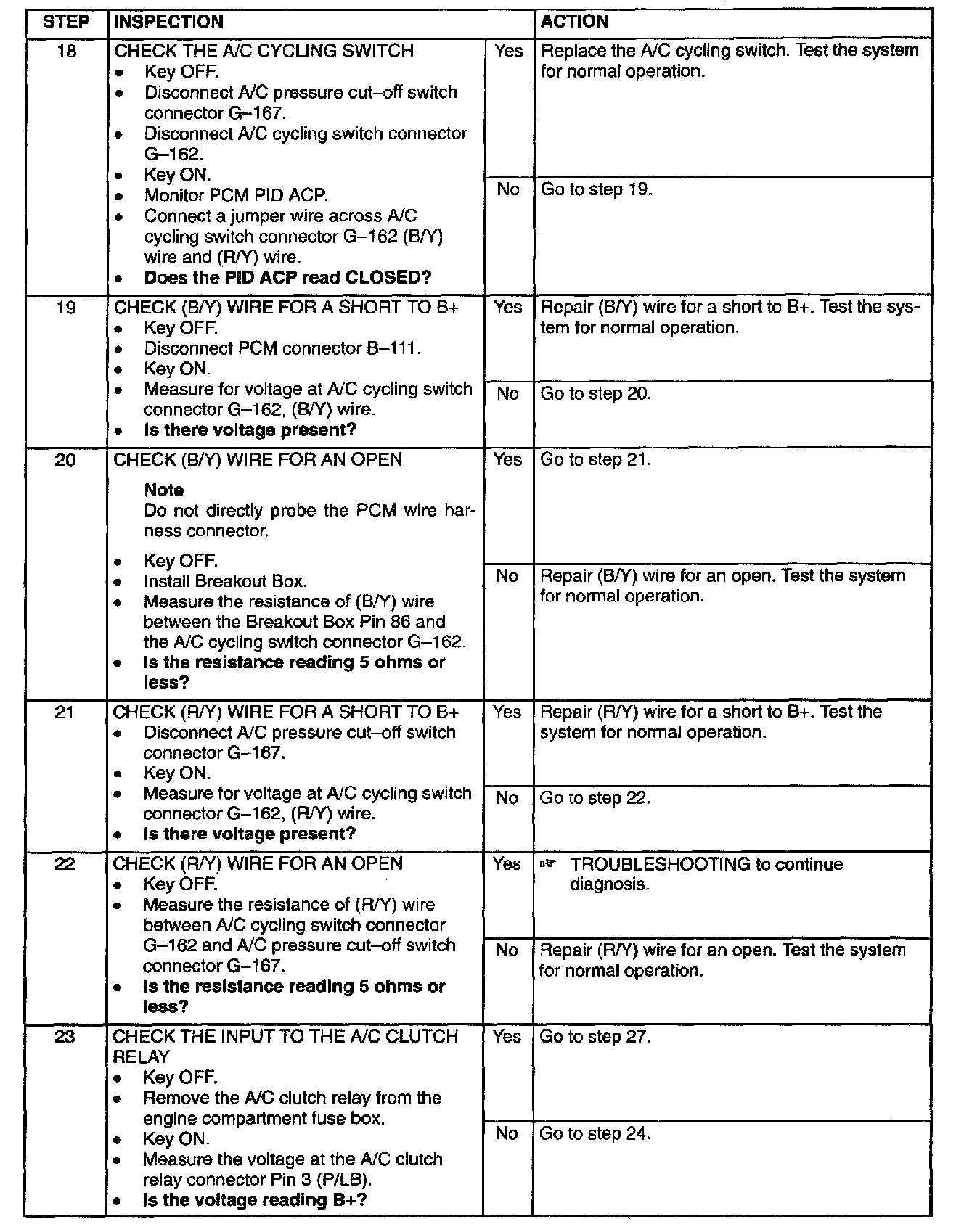

Steps 18 - 23:

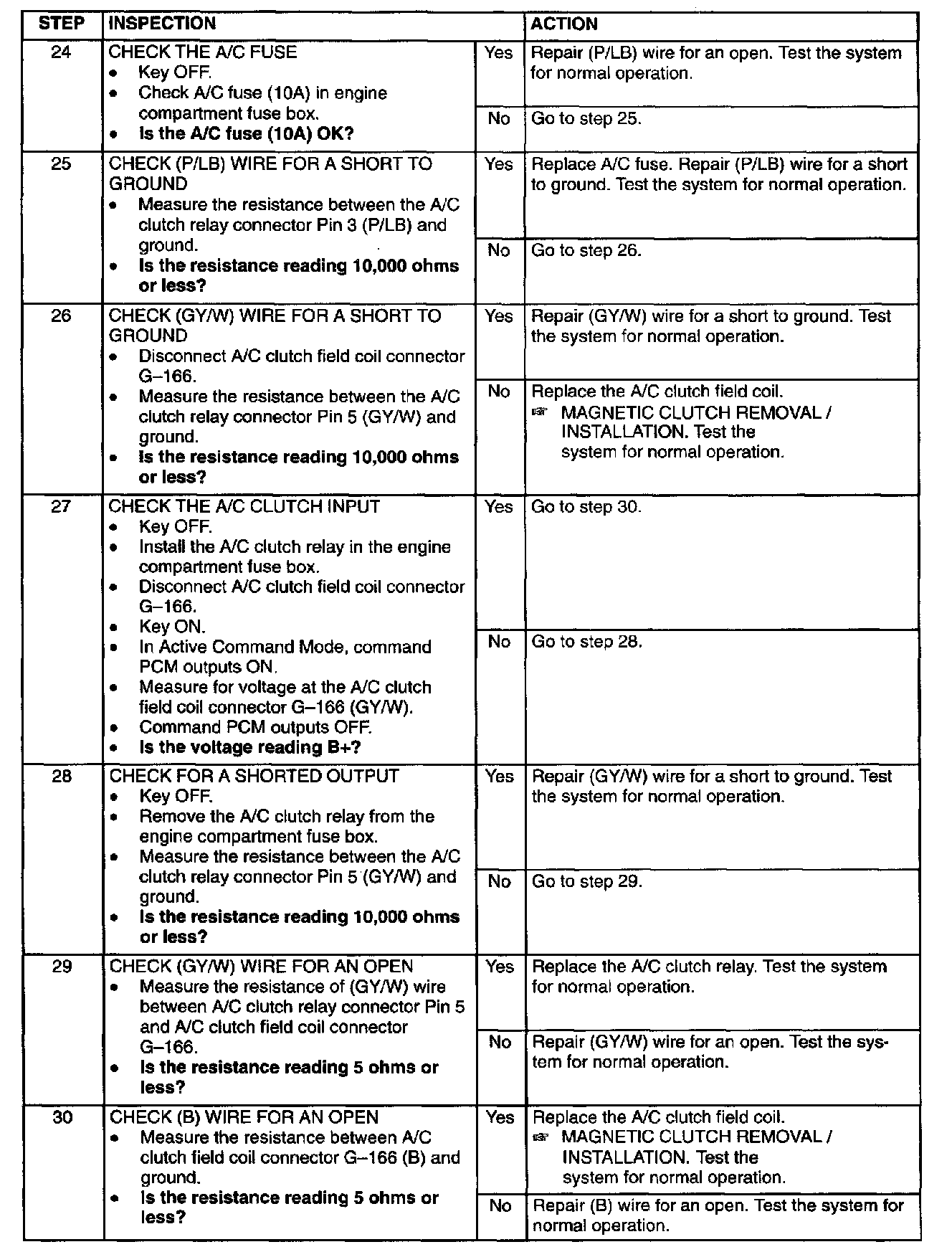

Steps 24 - 30:
Connector View/Diagram:
