Seals and Gaskets: Service and Repair

REAR PINION SEAL REMOVAL/INSTALLATION
Removal Note
1. Remove the rear companion flange.
2. Pry up on the metal flange of the rear pinion seal. Install gripping pliers and strike with a hammer until the seal is removed.

Installation Note
1. Lubricate the new rear pinion seal.

Caution If the rear pinion seal becomes misaligned during installation, remove the seal and Install a new seal.

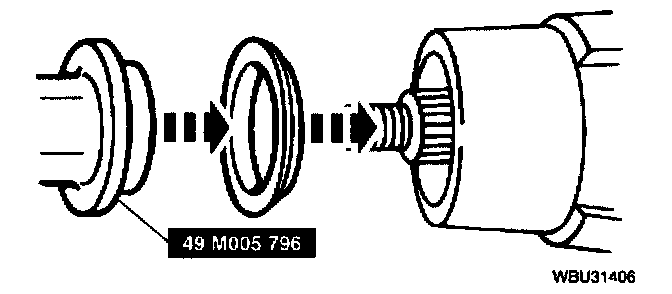

2. Use Pinion Seal Replacer SST 49 M005 796 to install the rear pinion seal.
3. Install the rear companion flange
