Rear Axle

REAR AXLE SPEED SENSOR REMOVAL / INSTALLATION
1. Raise and support the vehicle.

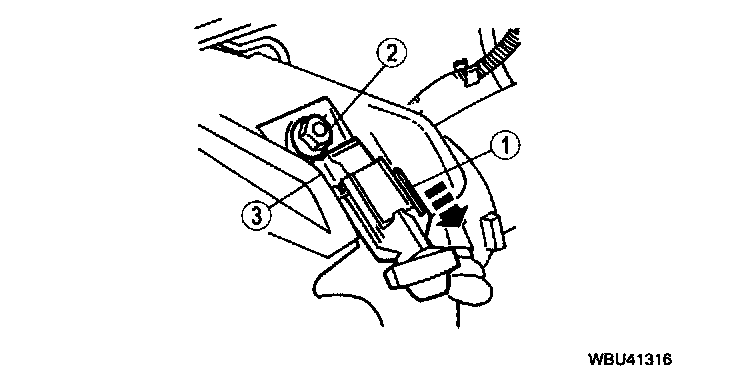

2. Disconnect the rear axle speed sensor connector (1).
3. Remove the bolt (2).
4. Remove the rear axle speed sensor (3).

Note Inspect the anti-lock brake sensor O-ring for damage; lightly lubricate O-ring with rear axle lubricant.

Caution Before removing the rear axle speed sensor, clean any dirt around the sensor to prevent the dirt from contaminating the rear axle fluid.

5. Install in reverse order of removal.
Tightening torque
34 - 40 Nm (3.5 - 4.1 kgf-m, 25 - 29 ft. lbs.)
