Splash Guard: Service and Repair

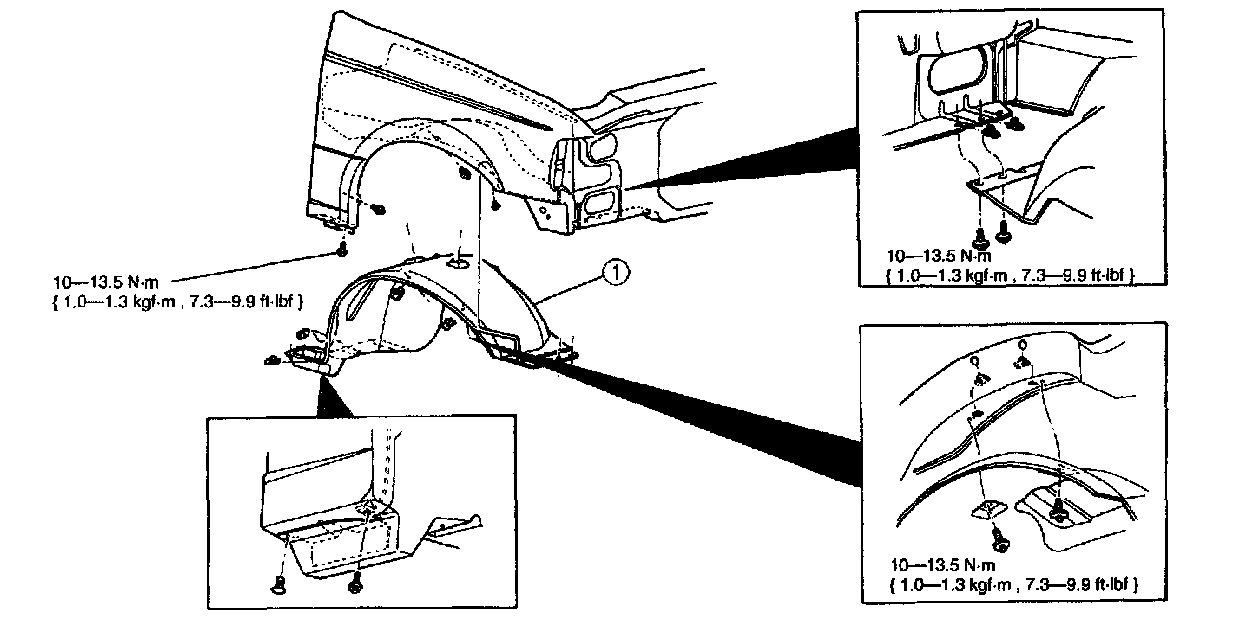

Front
1. Remove screws.
2. Remove splash shield (1).
3. Install in reverse order of removal.

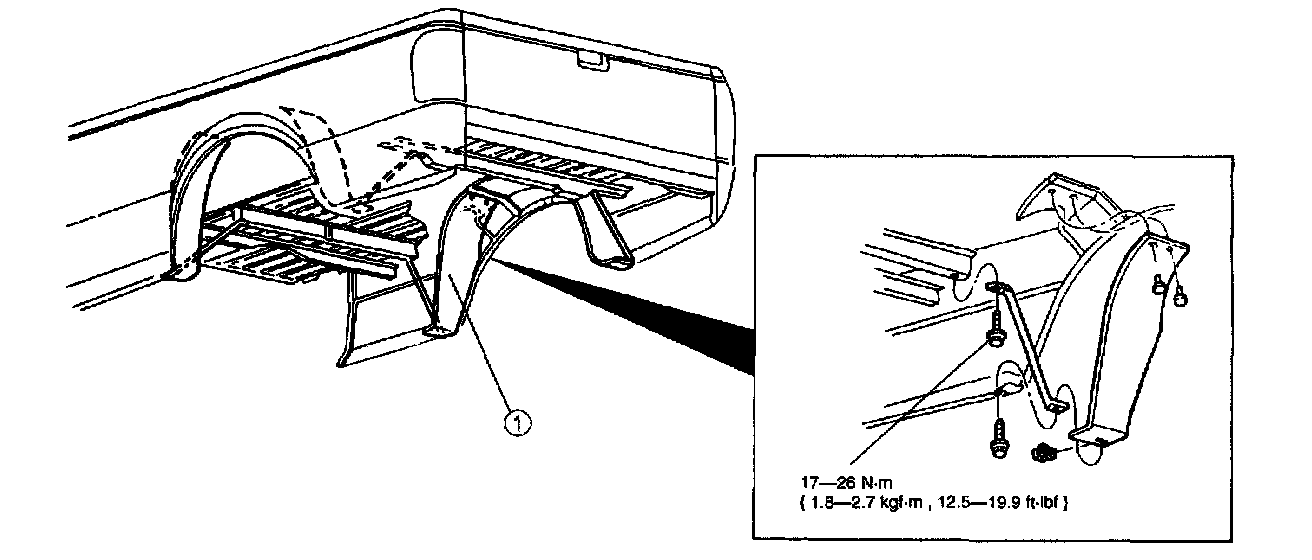

Rear
1. Remove screws.
2. Remove splash shield (1).
3. Install in reverse order of removal.
