Mazda Truck
>>
2000
>>
B2500 SX Regular Cab 2WD L4-2.5L VIN C
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Automatic Transmission External Controls Diagnosis
>>
Test 1: Shift Interlock System Does Not Operate Properly
Test 1: Shift Interlock System Does Not Operate Properly
PINPOINT TEST 1: SHIFT INTERLOCK SYSTEM DOES NOT RELEASE/LOCK PROPERLY
Step 1 - 4

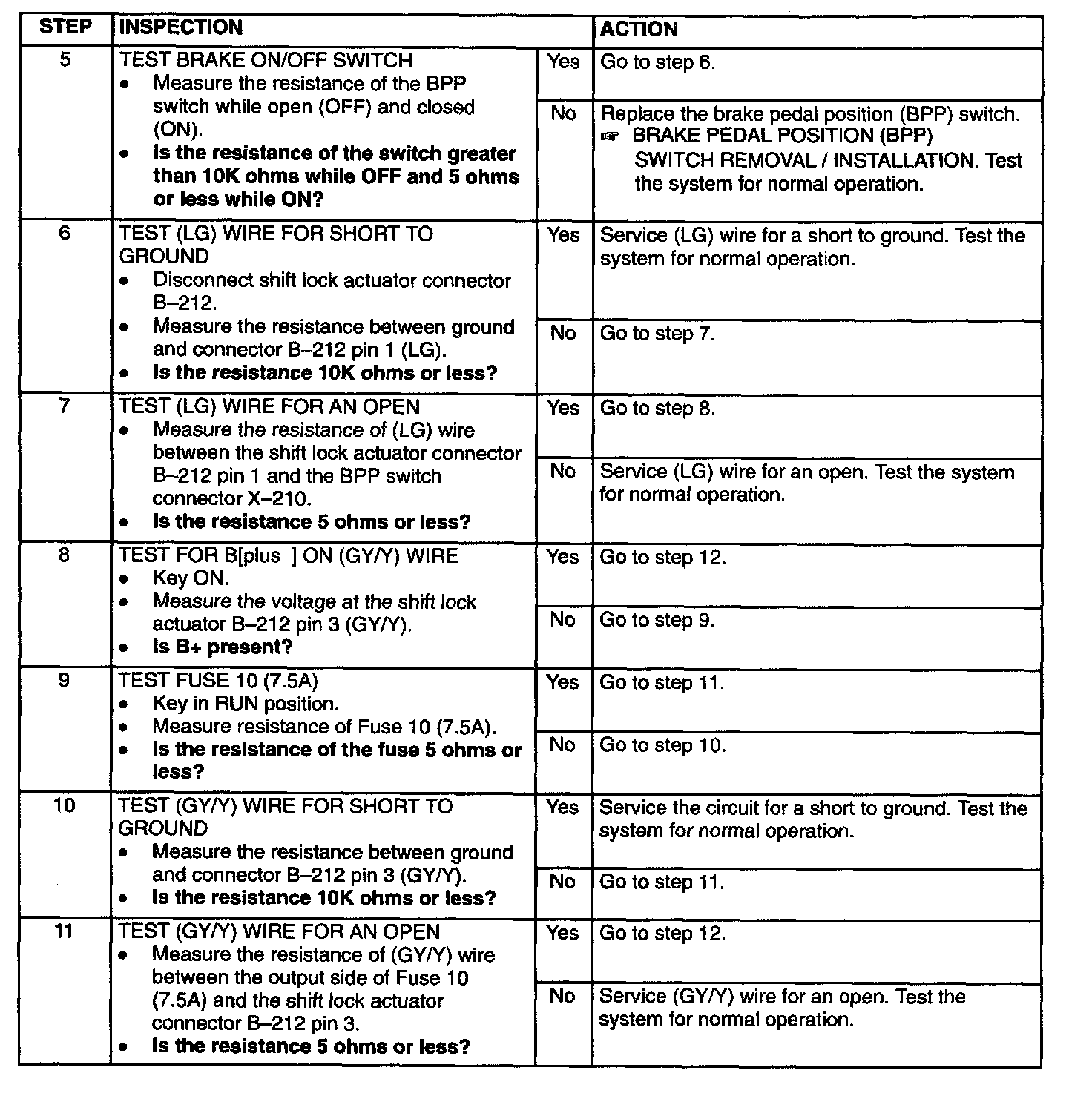

Step 5 - 11

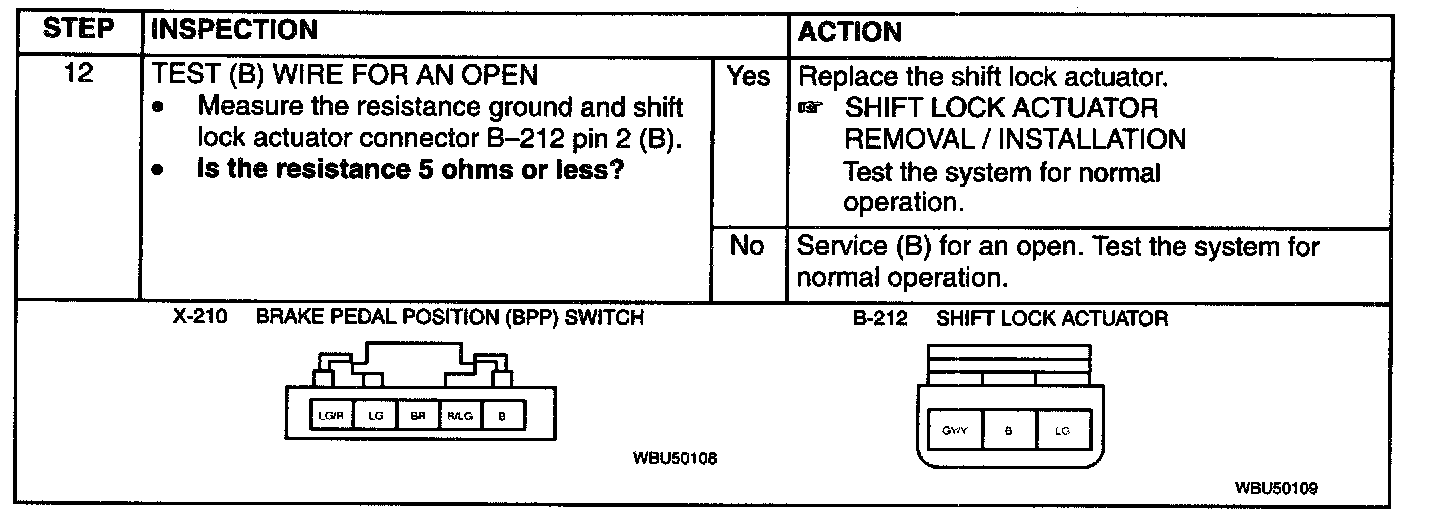

Step 12
