Intermediate Servo

INTERMEDIATE SERVO REMOVAL/INSTALLATION
Removal Note
1. Disconnect the battery ground cable.
2. Raise and support the vehicle.
3. Remove the control valve body.

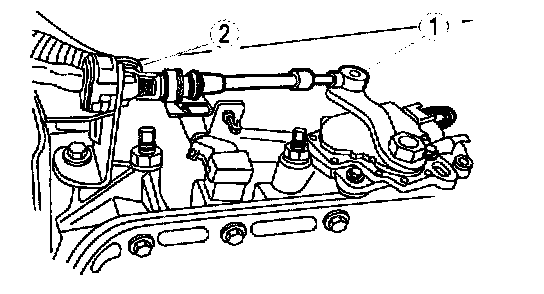

4. Remove the shift cable.
1. Disconnect the shift cable from the manual control lever.
2. Remove the shift cable from the bracket.
5. Remove the digital Transmission Range (TR) sensor. Refer to Powertrain Manangement; Computers and Control Systems; Transmission Position Switch/Sensor.

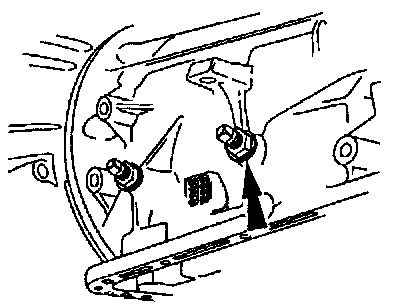

6. Remove the intermediate band locknut and unscrew the intermediate band adjusting screw.
- Discard the intermediate band locknut after removal.
7. Remove the catalytic converter.

Caution Servo cover is under spring tension. Use caution when removing.

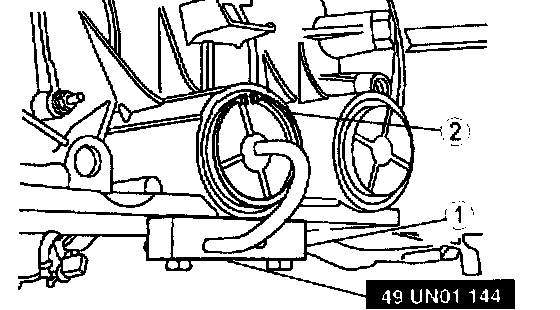

8. Using SST, remove the intermediate band servo cover retaining ring.
1. Install the SST and compress the intermediate band servo cover.
2. Remove the intermediate servo cover retaining ring.
- Slowly remove tension on the J hook nut and remove the servo cover compressor.
9. Using SST, remove the overdrive band servo cover retaining ring.
1. Install the SST and compress the overdrive/front band servo cover.
2. Remove the overdrive/front servo cover retaining ring.
- Slowly remove tension on the J-hook nut and remove the servo cover compressor.

Installation Note

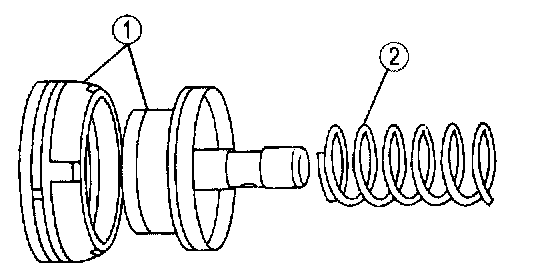

1. Assemble the intermediate band servo cover, intermediate band servo piston, and the servo piston spring.
1. Install the intermediate band servo piston into the intermediate band servo cover.
2. Install the servo piston spring on the intermediate band servo piston.

Caution Do not damage O-ring during installation. Do not press servo cover and O-ring past relief hole in case, or O-ring damage may occur.

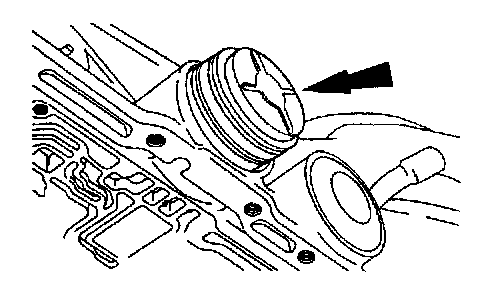

2. Install the intermediate band servo piston assembly into the transmission case.
- Lubricate intermediate band servo cover O-ring with petroleum jelly.

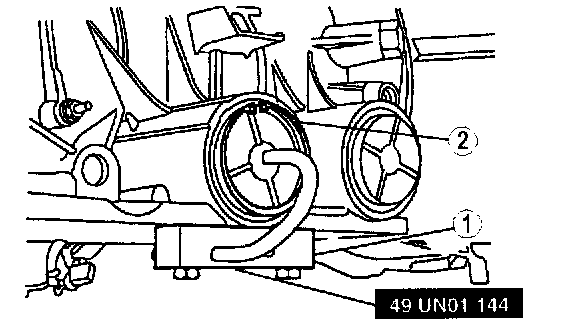

3. Using SST, install the intermediate band servo cover retaining ring.
1. Install the SST and compress the intermediate band servo cover.
2. Install the intermediate servo cover retaining ring.
4. Install the catalytic converter.
5. Install the digital Transmission Range (TR) sensor. Refer to Powertrain Manangement; Computers and Control Systems; Transmission Position Switch/Sensor.

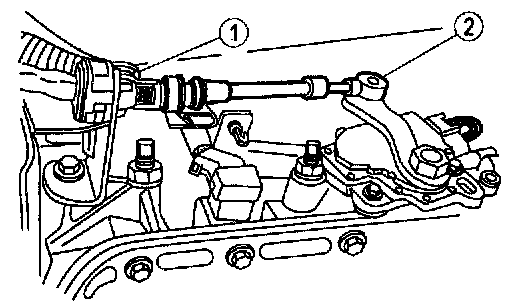

6. Install the shift cable.
1. Install the shift cable.
2. Install the shift cable to the manual control lever.
7. Install the control valve body.
8. Adjust the intermediate band.
9. Lower the vehicle.
10. Connect the battery ground cable.
