Windshield Wipers - Malfunction

Bulletin No.: 001/00R
Issued: 01/13/00
Revised: 08/18/00

Section
09

Applicable Model/s
1999-2000 B-Series

Subject:
WINDSHIELD WIPERS OPERATE WHILE
SWITCH IS IN "OFF" POSITION

BULLETIN NOTE:
^ This bulletin supersedes 09-001-00. The majority of the content of this bulletin has been changed.

^ For all 1999-2000 B-Series built prior to 9/12/99 with 4X4 or power windows that have this same concern, refer to SSP 44.

APPLICABLE MODEL(S)/VINs
All 1999-2000 B-Series 4x2 without power windows, and with manufacture dates before 9/12/99.

DESCRIPTION

The windshield wipers may operate while the multi-function switch is in the OFF position. This may be caused by a resistance drift in the multi-function switch or a partially plugged-in connector.

REPAIR PROCEDURE

1. Verify customer concern.

2. Replace the multi-function switch with revised part per the Workshop Manual (section 09-18 MULTI-FUNCTION SWITCH REMOVAL/INSTALLATION).

Note:
^ If non-wiper related symptoms are present, perform diagnostics per the appropriate Workshop Manual.

^ DO NOT attempt to repair the vehicle by replacing the CTM.

Caution:
^ Make sure that all connections are fully seated to the CTM, center instrument panel components, wiper motor and multi-function switch during Installation. Check multi-function switch connection closely for loose connections, terminals, and terminal push outs. Do not attempt a continuity check or probe the circuits of the wire harness.

3. Verify repair.

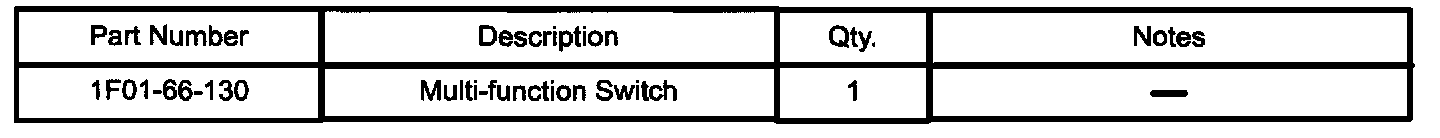

PART(S) INFORMATION

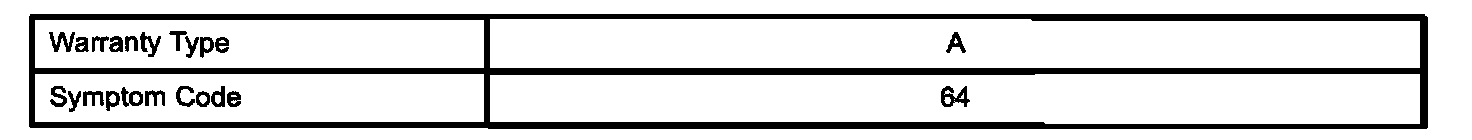

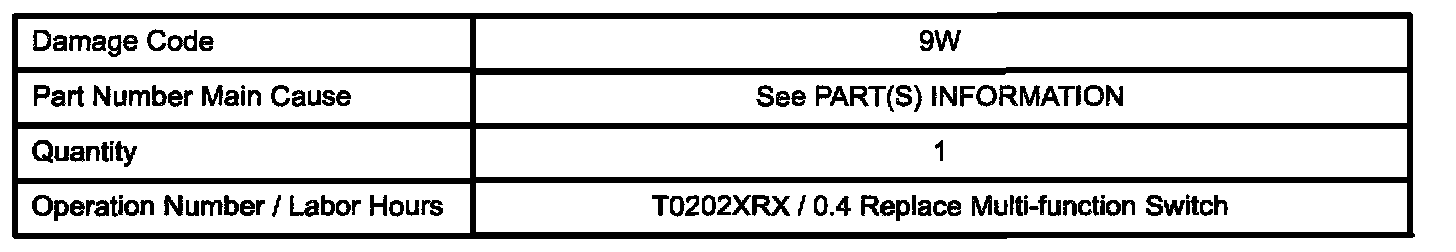

WARRANTY INFORMATION

Note:
^ This information applies to verified customer complaints on vehicles covered under normal warranty. Refer to the SRT microfiche for warranty term information.
