Removal and Installation

NOTE:
- Repair is made by replacement only. If a part is replaced and the new part does not correct the condition, install the original part and perform the diagnostic procedure again.
- Make sure to tighten the retaining bolts to specification. it is critical for proper operation.




1. Disconnect the negative battery cable and wait at least one minute.

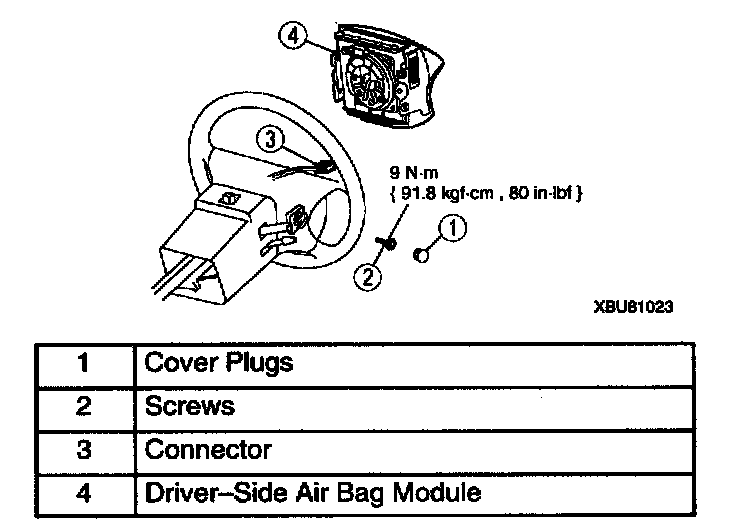

2. Remove in order shown in figure.
3. Install in reverse order of removal.
