Home >> Mazda Truck >> 2000 >> B2500 SX Regular Cab 2WD L4-2.5L VIN C >> Repair and Diagnosis >> Lighting and Horns >> Headlamp >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Test 1

Pinpoint Test 1

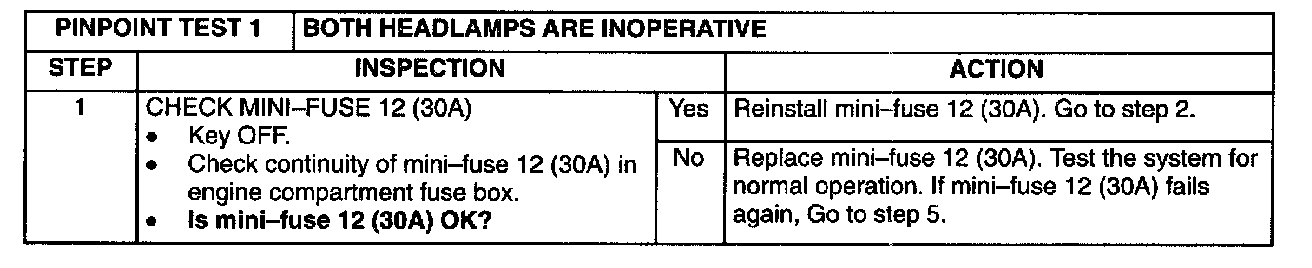

Step 1:

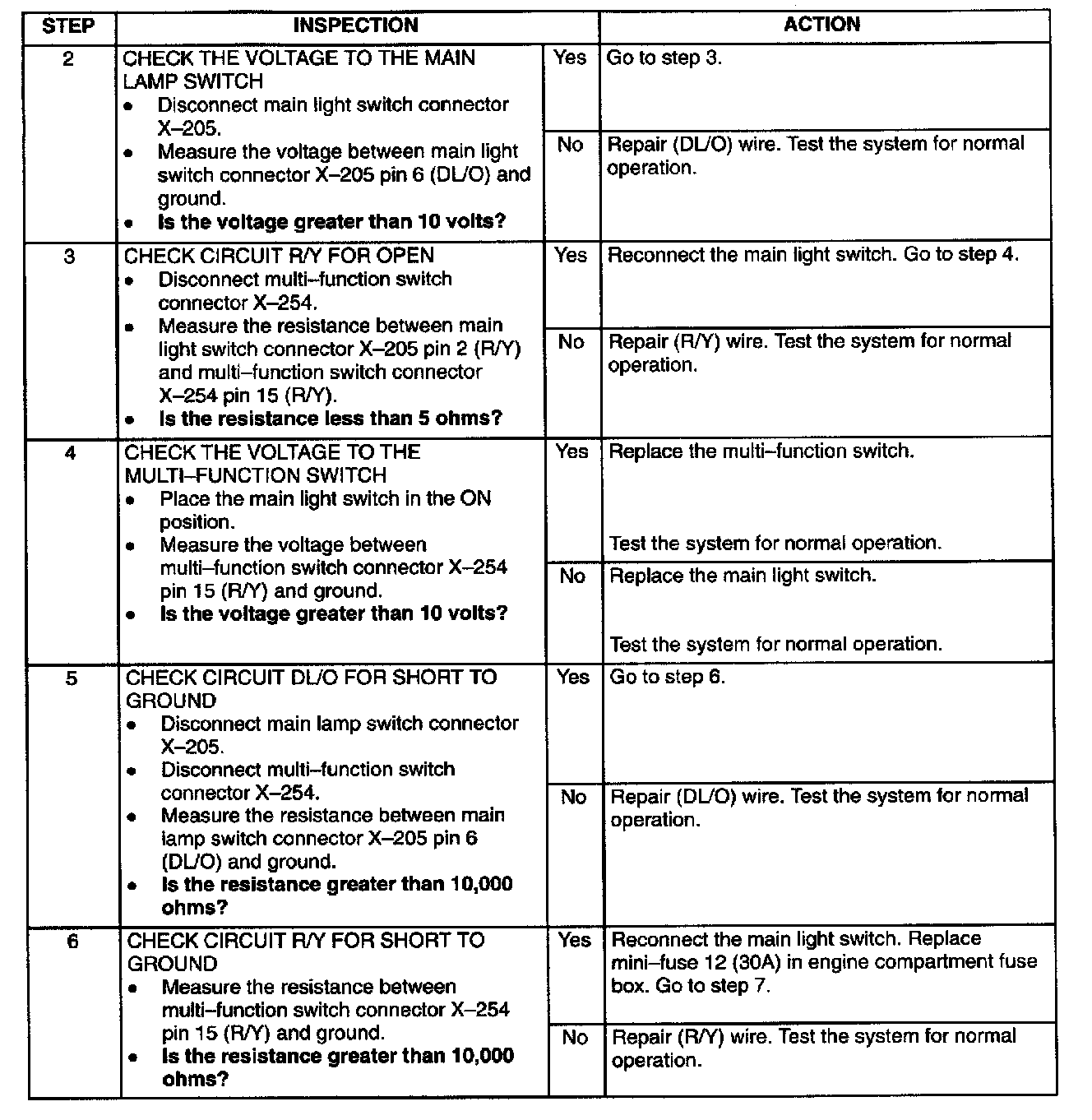

Steps 2 - 6:

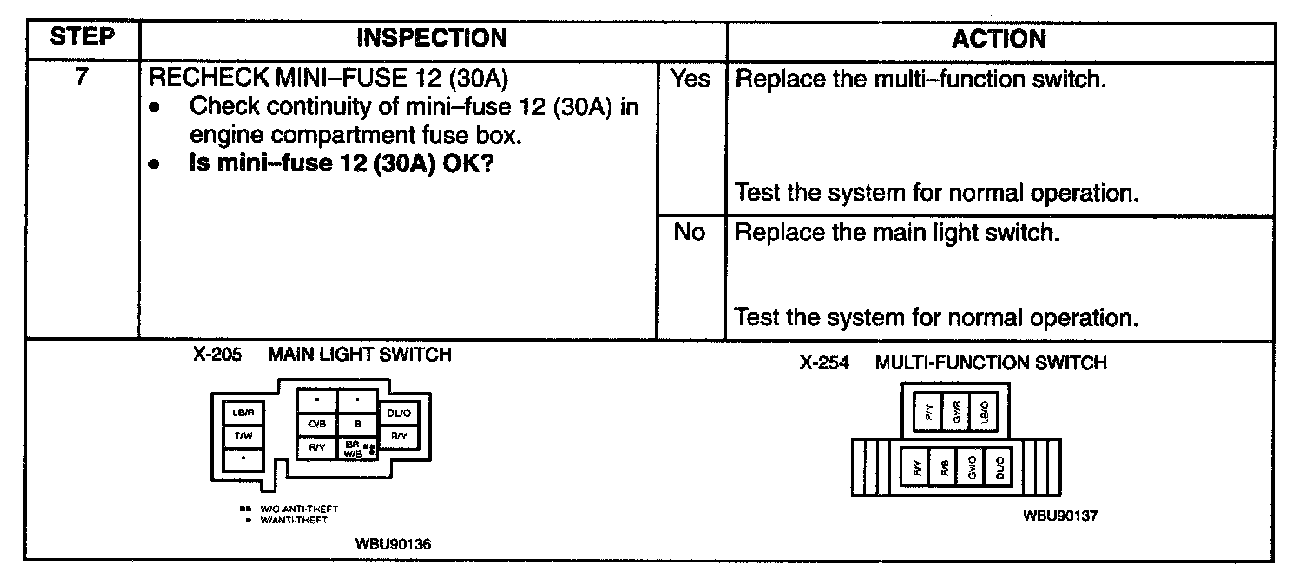

Step 7:
