1: Module Not Responding to NGS Tester - Anti-Lock Brake System
1: Module Not Responding to NGS Tester - Anti-Lock Brake System

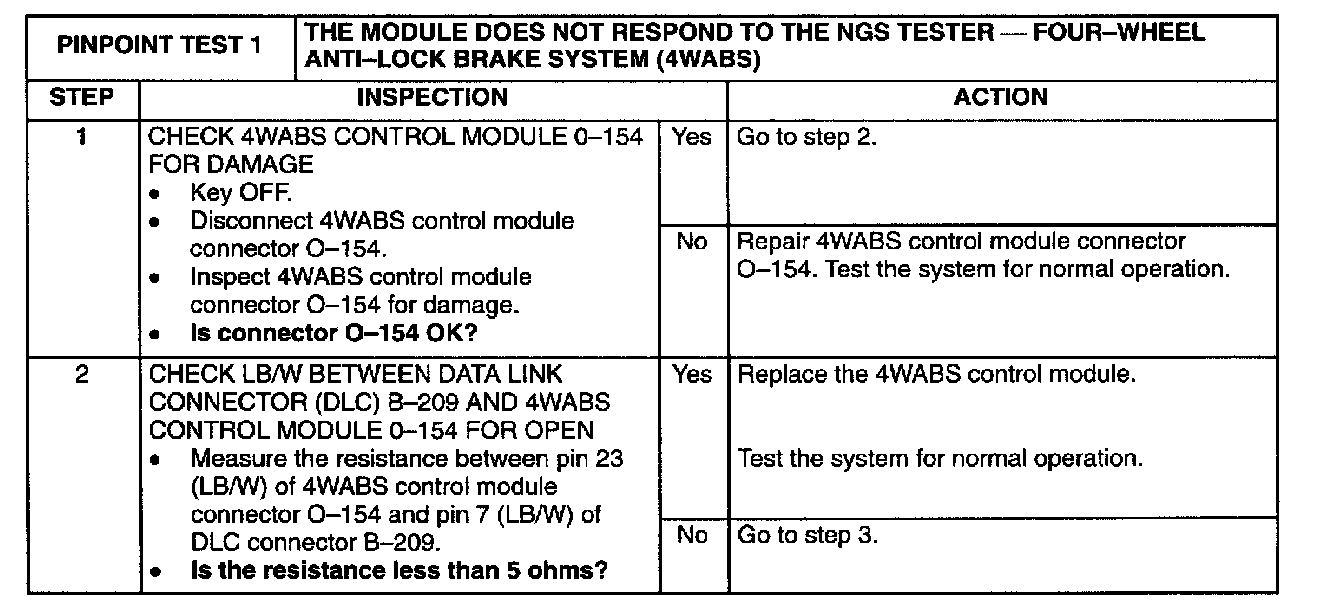

Steps 1 - 2:

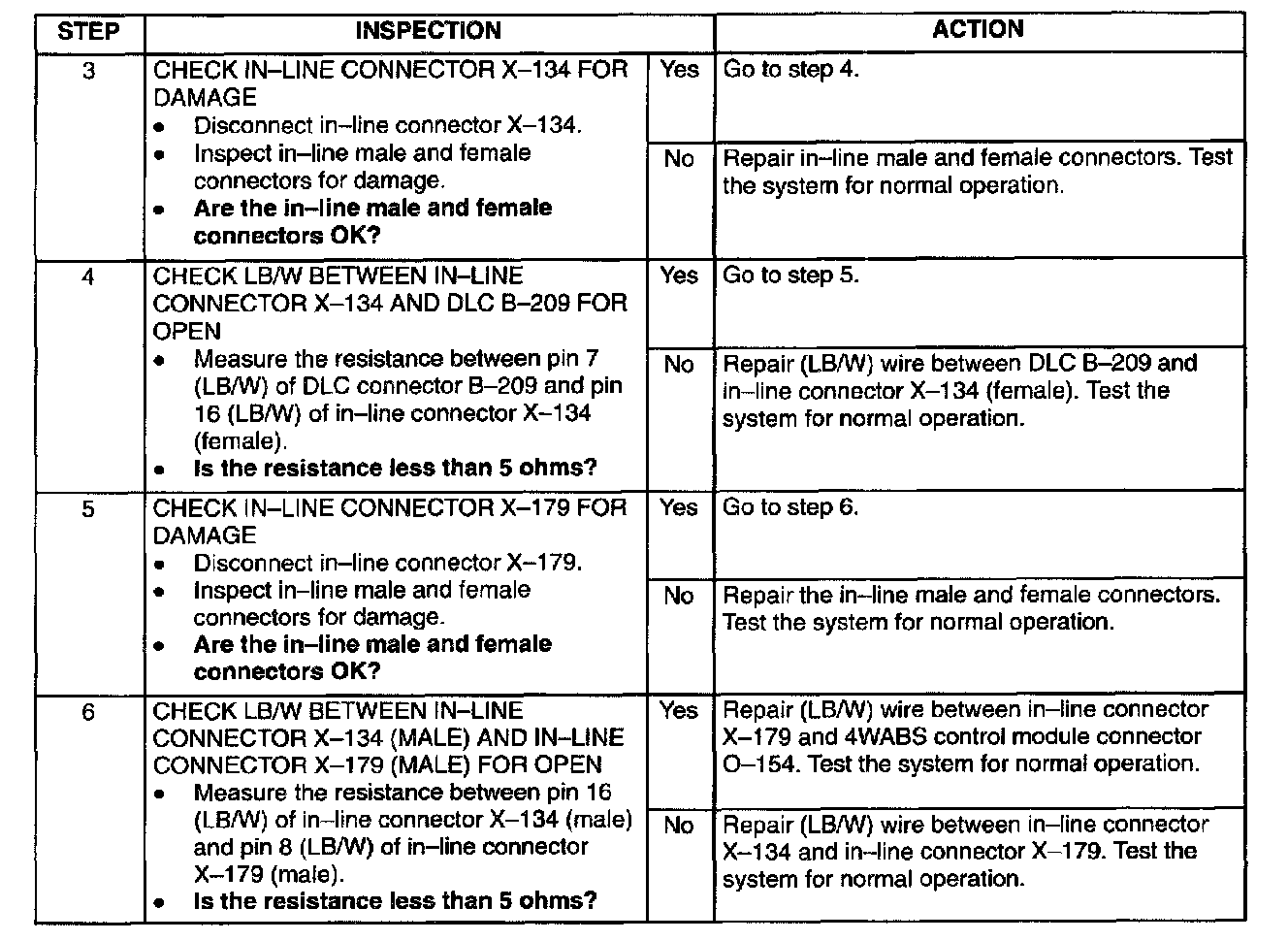

Steps 3 - 6:

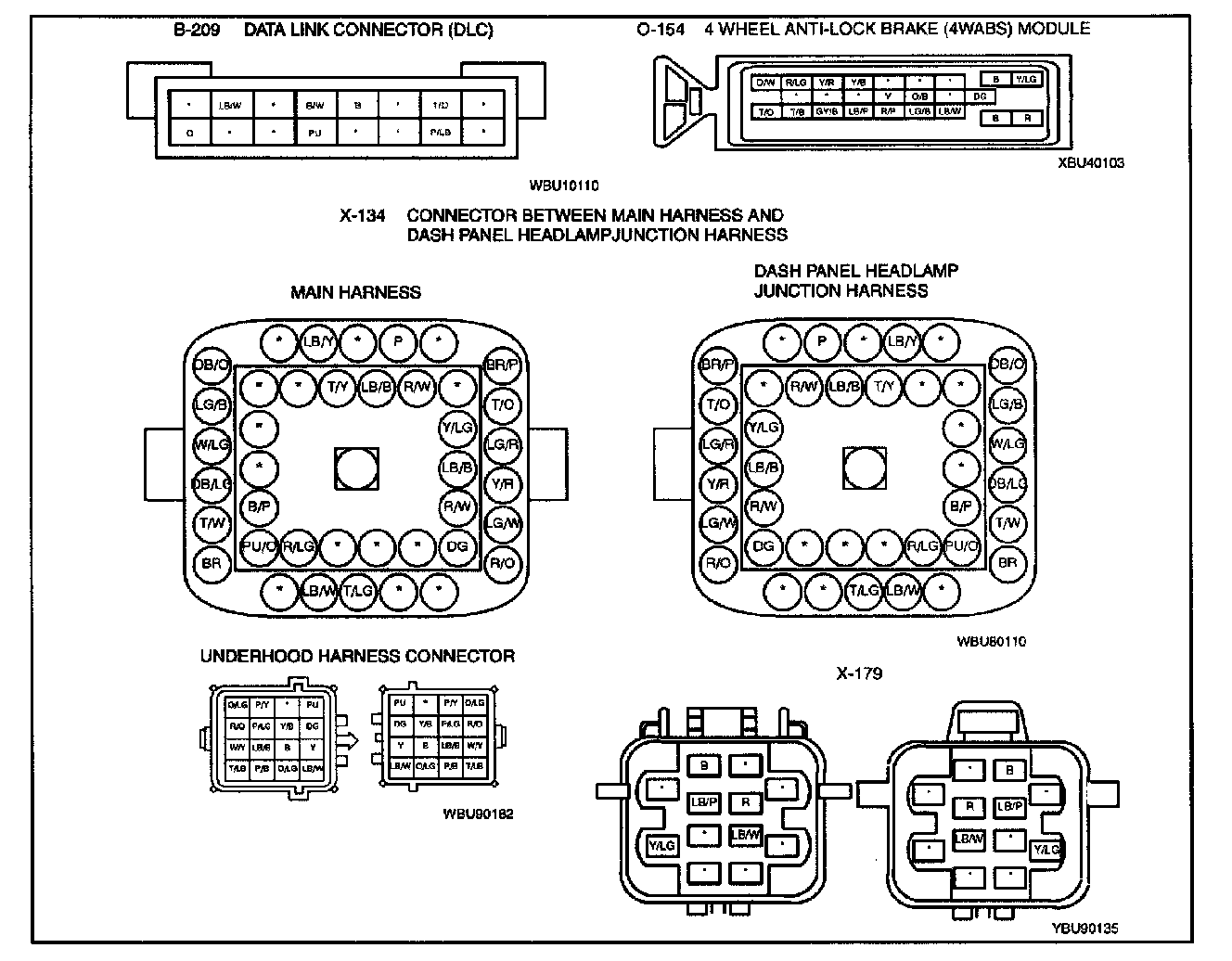

Connector View/Diagram:
